Carbon Steel Investment Casting for Custom Industrial Parts


Zeren provides custom carbon steel investment casting and CNC machining services for industrial parts that require strength, machinability, and cost-effective manufacturing.


Carbon steel is commonly used for machinery components, transportation parts, pump and valve components, brackets, housings, connectors, and general engineering castings. Based on your drawing, sample, material requirement, and application environment, we can help evaluate a suitable carbon steel casting and machining solution for prototype or production projects.

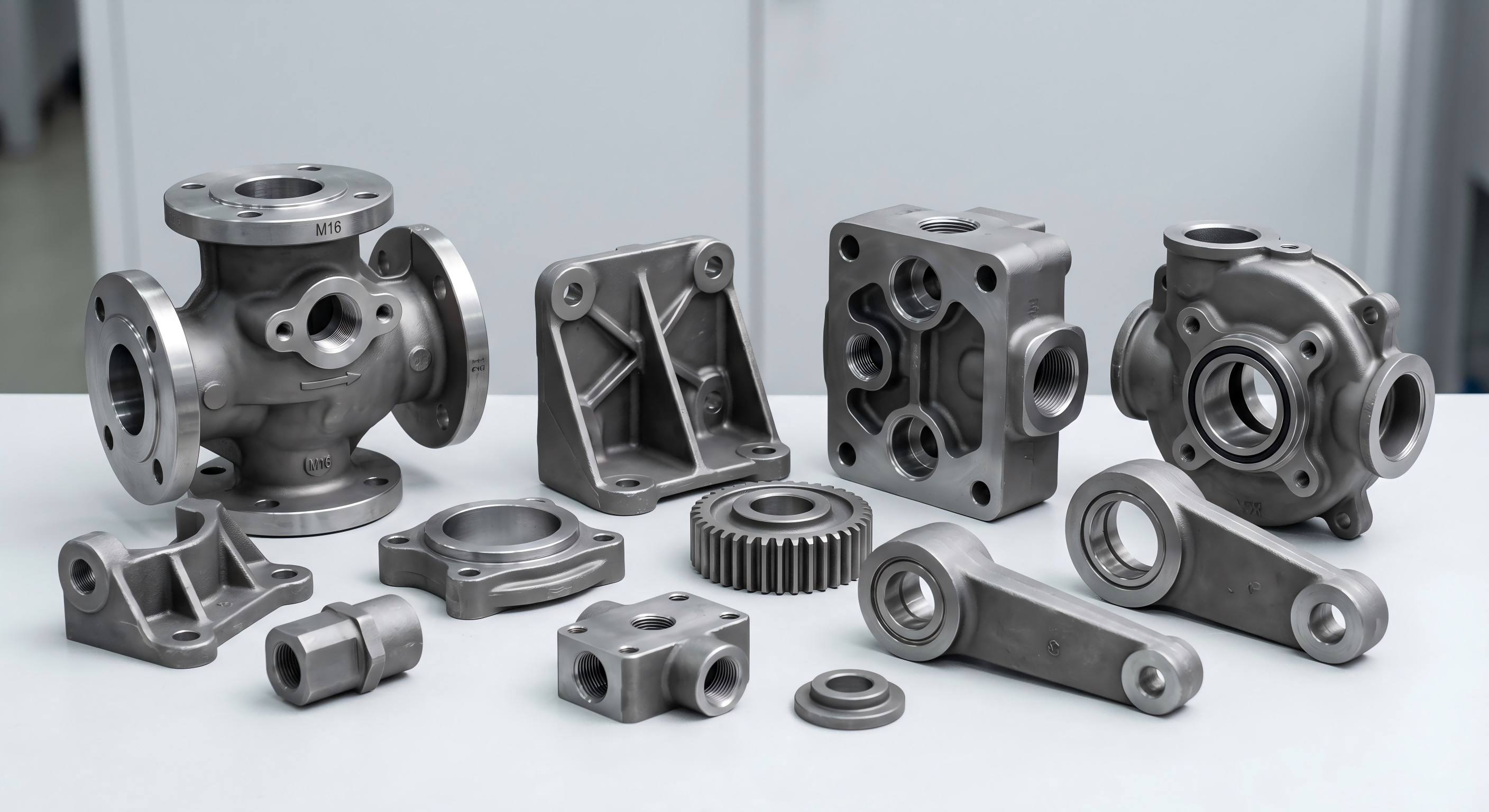

Carbon steel investment casting parts for industrial machinery and engineering applications

Why Carbon Steel Works Well for Investment Casting


Carbon steel is a practical material choice for custom investment castings where strength, machinability, and manufacturing economy are important. Compared with stainless steel or duplex stainless steel, carbon steel is often selected for general industrial parts where corrosion resistance is not the primary requirement.

Cost-Effective Material Choice
Carbon steel is often a practical option for parts that require reliable mechanical strength while keeping material cost under control.

Good Strength for Industrial Components

Carbon steel can be used for brackets, housings, connectors, machinery parts, and other structural or functional components used in industrial equipment.

Suitable for CNC Machining

Critical surfaces such as holes, threads, bores, mounting faces, and assembly areas can be CNC machined after casting to meet functional requirements.

Compatible with Heat Treatment

Depending on the grade and application, carbon steel castings can be heat treated to improve strength, hardness, toughness, or dimensional stability.

Wide Application Range

Carbon steel investment castings are used in industrial machinery, transportation, pump and valve systems, hardware, agricultural equipment, and general engineering applications.

Common Carbon Steel Grades for Investment Casting


Different carbon steel grades can be selected according to strength requirements, machining needs, heat treatment expectations, surface finishing requirements, and project cost targets. The final material grade should be confirmed according to the customer drawing, applicable standard, and working environment.

1015 / Low Carbon Steel
A low-carbon steel option suitable for general-purpose cast components, light-duty machinery parts, brackets, connectors, and parts requiring good machinability.
Suitable For
General brackets, light-duty machinery parts, connectors, housings, and simple structural castings.
1025 / 1035 Carbon Steel
Medium-low to medium carbon steel grades that can provide better strength than very low-carbon grades while maintaining practical machinability.
Suitable For
Machinery components, equipment fittings, structural parts, and custom cast parts requiring a balance of strength and machinability.
1045 Carbon Steel
A medium carbon steel option often considered when higher strength, hardness, or heat treatment response is required compared with lower carbon grades.
Suitable For
Load-bearing components, wear-related parts, machinery accessories, and parts requiring improved mechanical performance after heat treatment.
Q235 Carbon Steel
A commonly used general carbon structural steel for industrial components where cost efficiency and basic mechanical strength are important.
Suitable For
General structural castings, brackets, supports, connectors, and industrial hardware components.
Q355 Carbon Steel
A higher-strength structural steel option compared with Q235, suitable for components requiring improved load-bearing capability.
Suitable For
Heavy-duty brackets, machinery supports, transportation components, and structural industrial castings.
Typical Chemical Composition of Common Carbon Steel Grades (%)
GB GradeAISI / ASTMJISCSiMnPS
(%) (%) (%) (%) (%)
ZG200-4001015S15C≤0.20≤0.60≤0.80≤0.035≤0.035
ZG230-4501025S25C≤0.30≤0.60≤0.90≤0.035≤0.035
ZG270-5001035S35C≤0.40≤0.60≤0.90≤0.035≤0.035
ZG310-5701045S45C≤0.50≤0.60≤0.90≤0.035≤0.035
Q235A283 Gr.CSS4000.14–0.22≤0.300.30–0.65≤0.045≤0.050
Q355A572 Gr.50SM490C≤0.24≤0.55≤1.60≤0.035≤0.035
The chemical composition above is for general reference only. Final material requirements should be confirmed according to the customer drawing, applicable standard, mechanical requirement, heat treatment condition, and working environment.

Typical Carbon Steel Components We Produce


We manufacture custom carbon steel investment castings for OEM projects where strength, machinability, and cost-effective production are important. Parts can be produced according to customer drawings, samples, 3D files, or technical specifications, with CNC machining and surface finishing available when required.

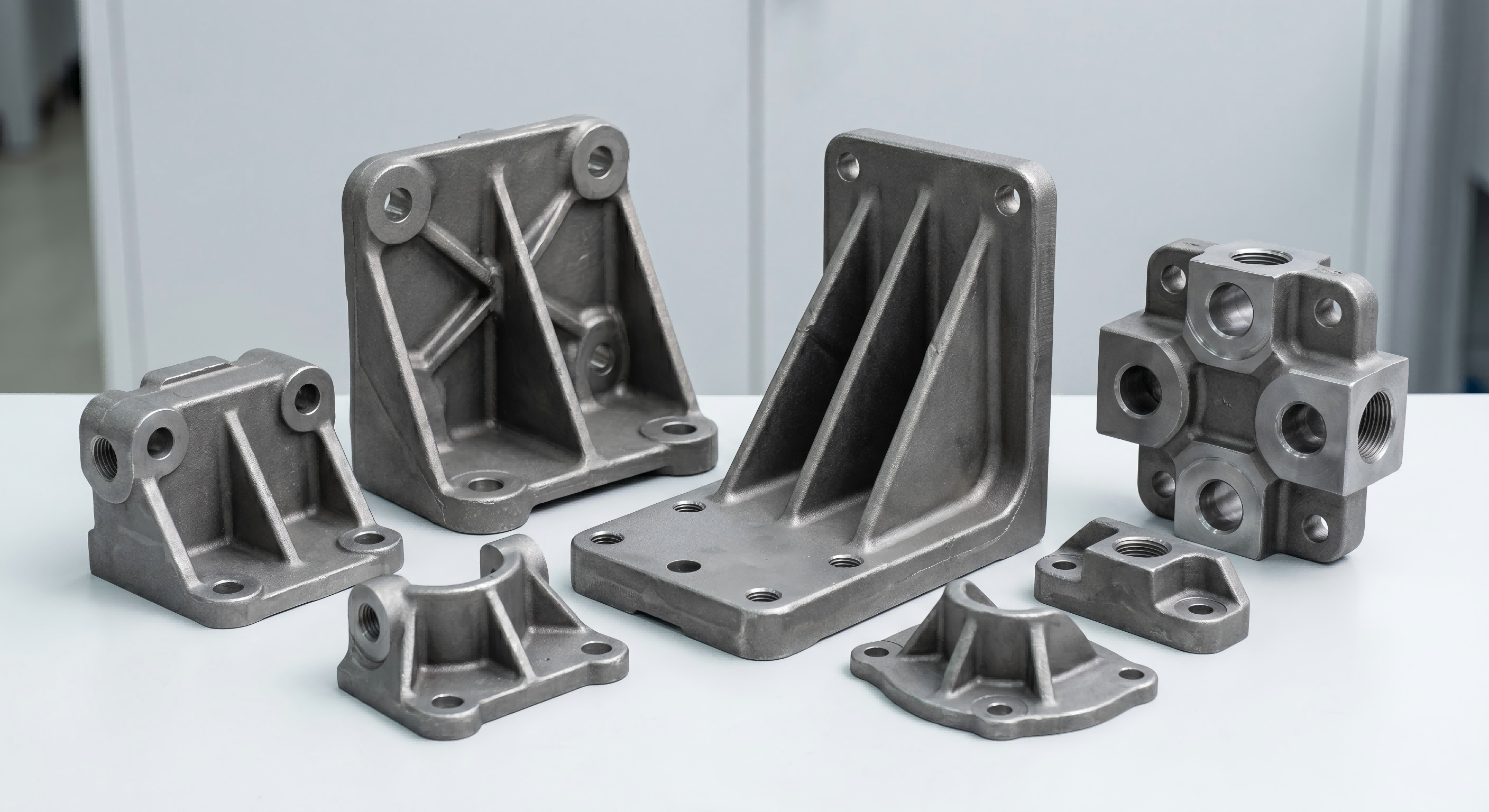

Carbon steel machinery bracket investment casting with machined mounting holes
Valve Machinery Brackets & Supports
Custom carbon steel brackets, supports, and mounting components for industrial machinery, equipment frames, and mechanical assemblies requiring strength and stable installation.

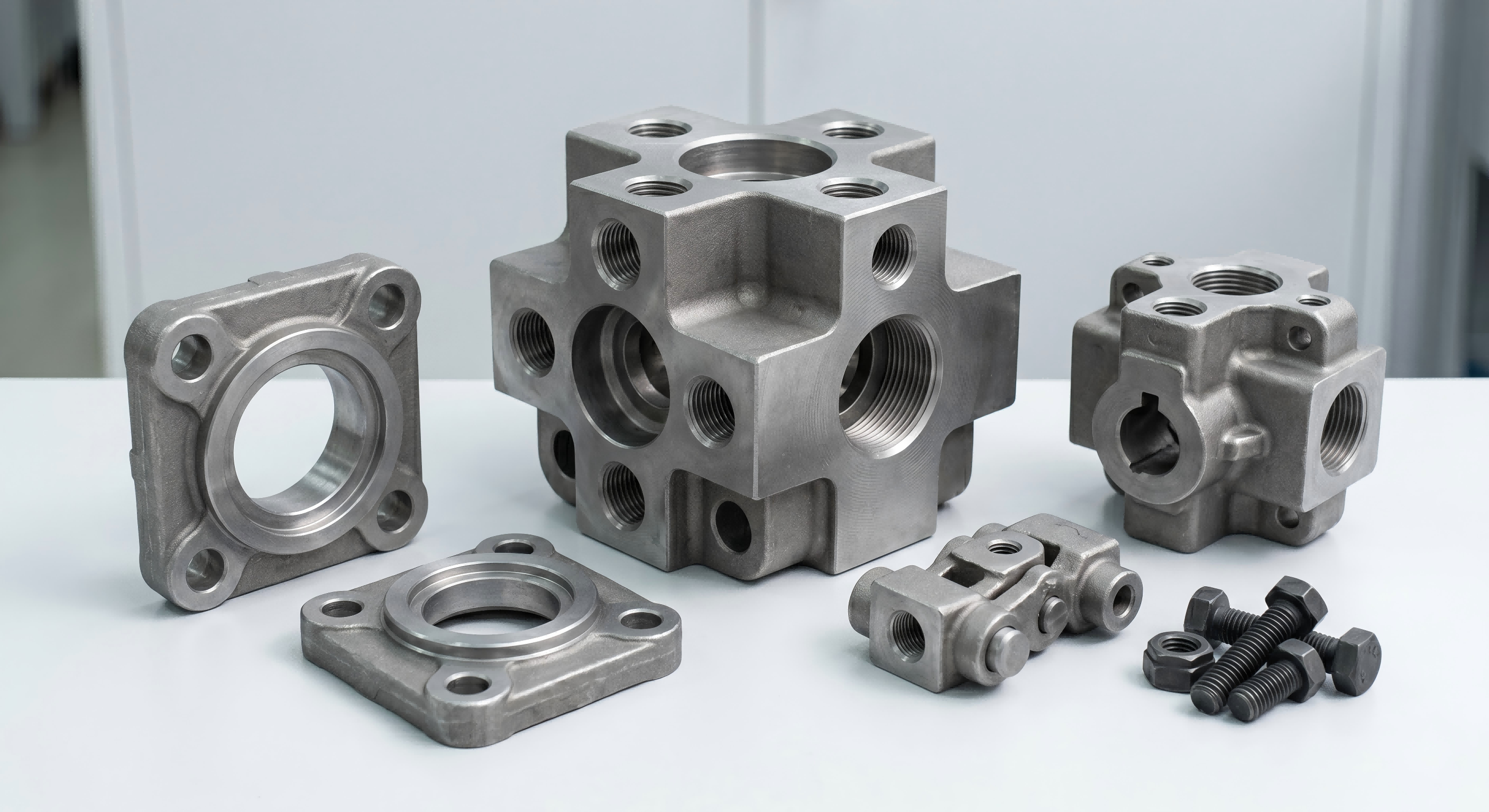

Carbon steel connector block casting with CNC machined holes and surfaces
Connector Blocks & Mounting Parts

Carbon steel connector blocks, mounting seats, and assembly parts used in machinery systems where accurate holes, threads, and connection surfaces are required after casting.

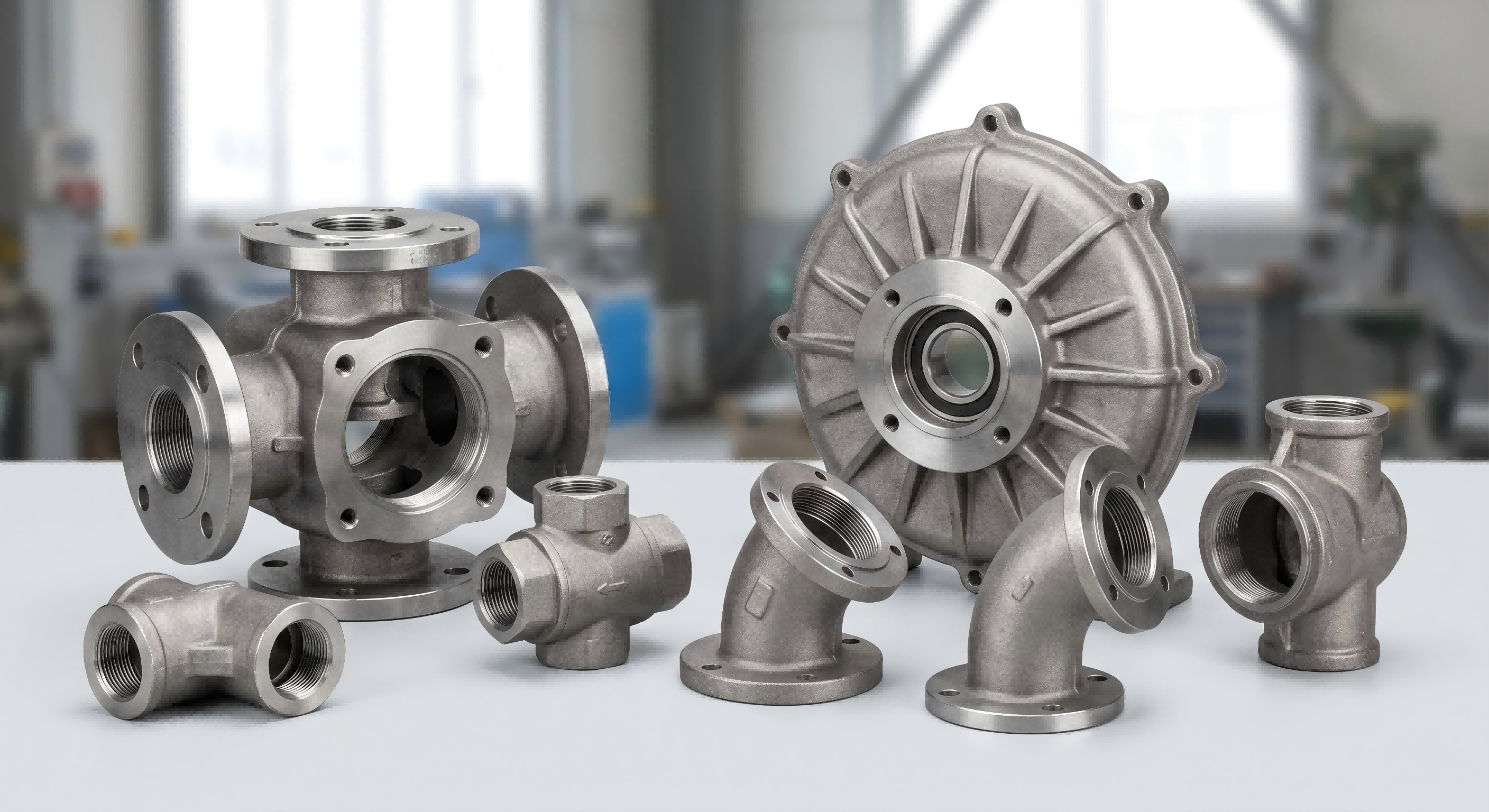

Carbon steel pump and valve casting components with machined sealing surfaces
Pump & Valve Components

Carbon steel pump and valve components such as covers, seats, connectors, elbows, and flow-related cast parts for general fluid handling applications where corrosion resistance is not the main requirement.

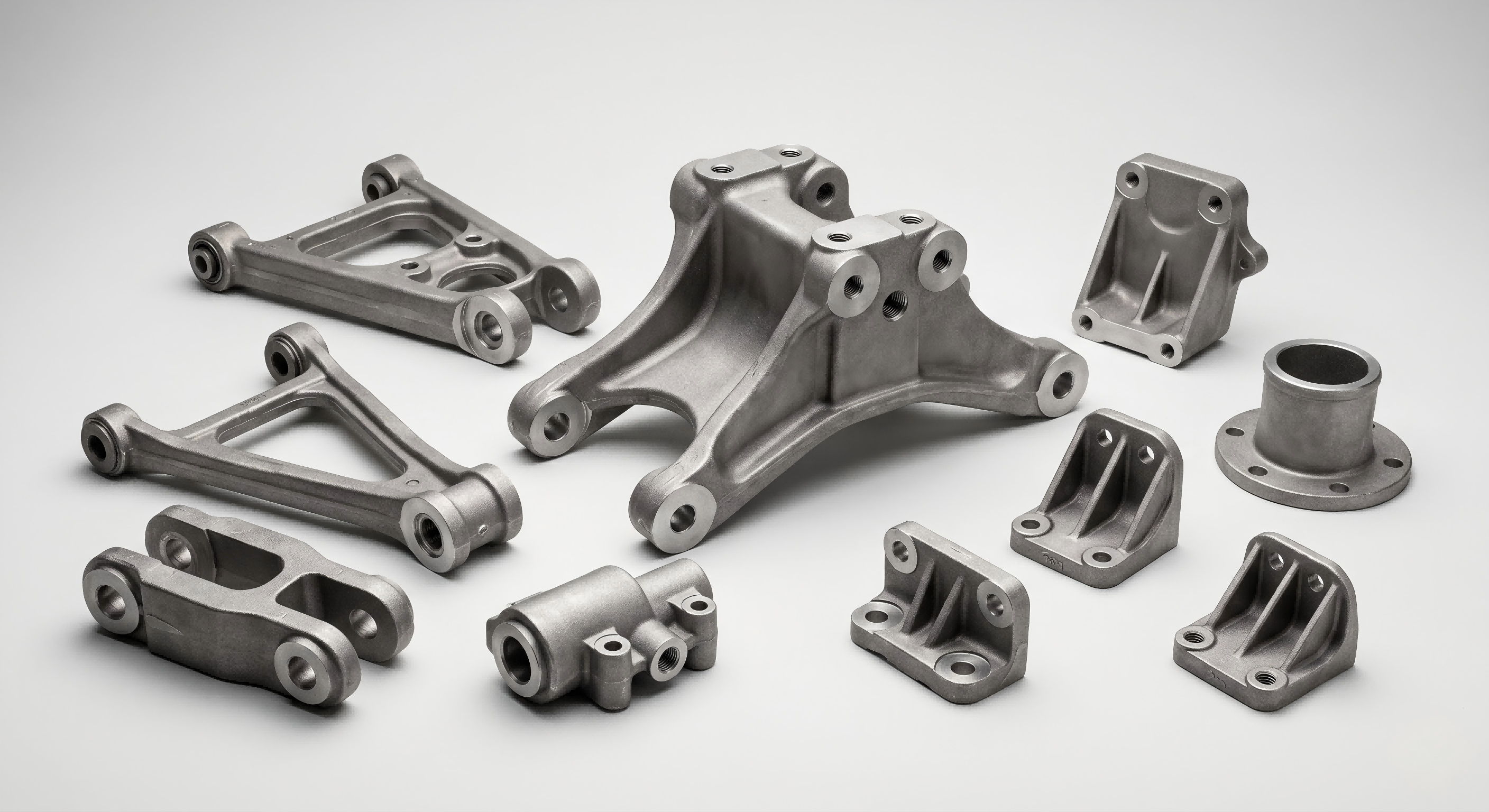

Carbon steel transportation casting parts with machined mounting features
Transportation Casting Parts

Custom carbon steel cast parts for transportation-related assemblies, including brackets, mounts, link components, and mechanical fittings requiring strength and repeatable production quality.

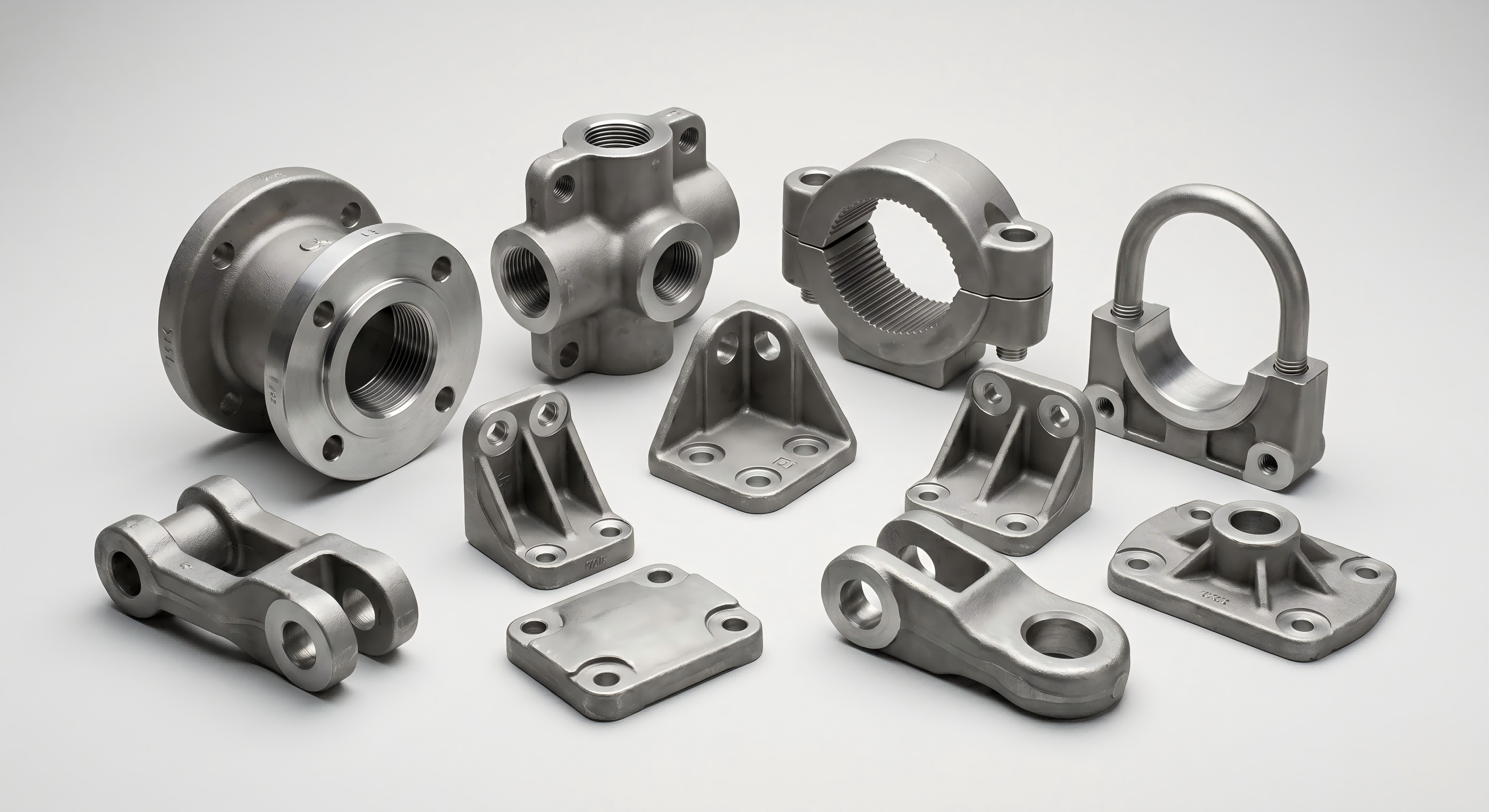

Carbon steel hardware and structural fitting castings for industrial use
Hardware & Structural Fittings

Carbon steel hardware fittings, structural connectors, clamps, and custom industrial accessories for applications requiring durable cast geometry and secondary finishing.

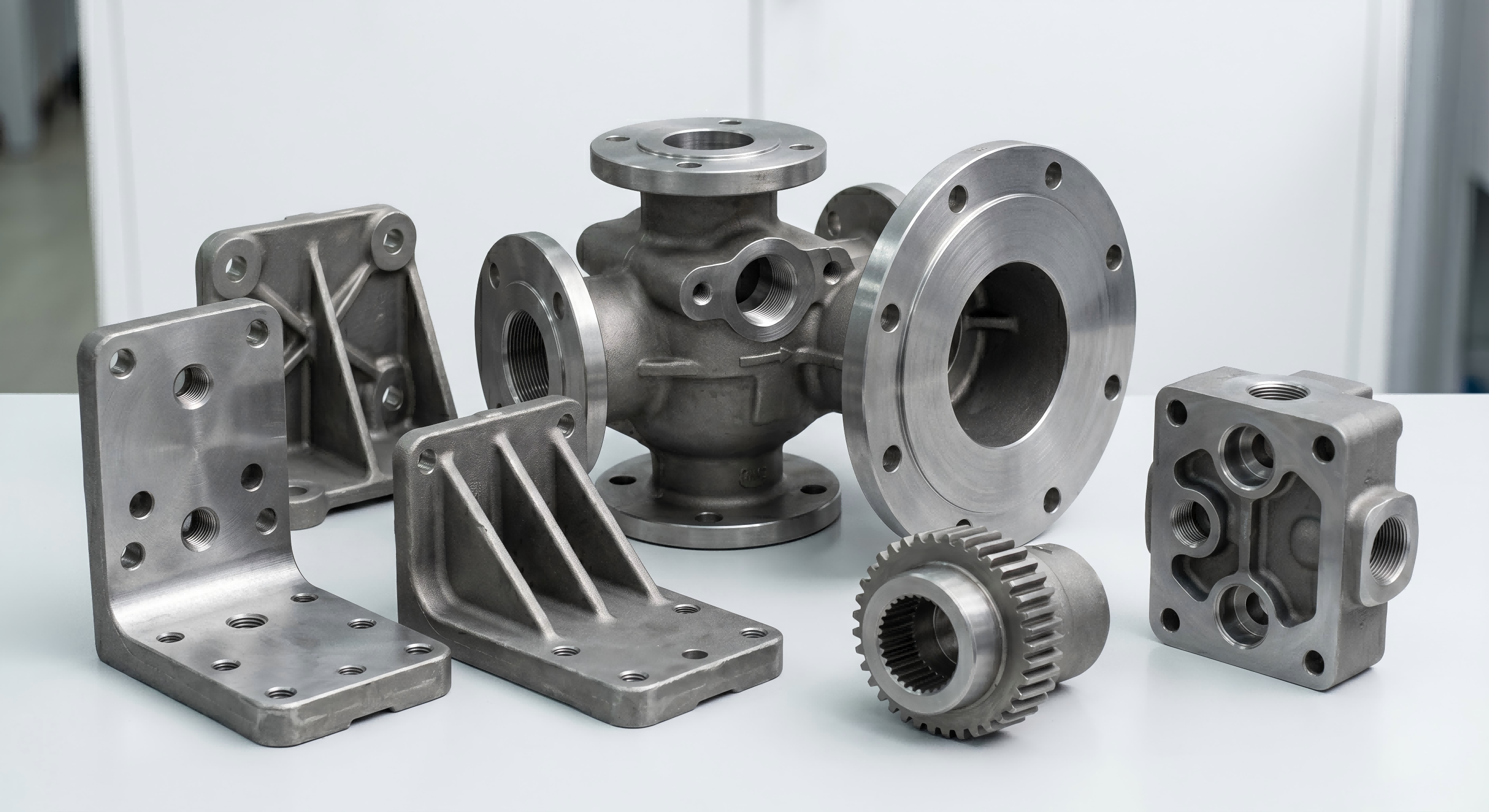

CNC machined carbon steel investment casting parts with precision surfaces
CNC Machined Carbon Steel Cast Parts

Carbon steel investment castings with CNC machined bores, threads, sealing faces, datum surfaces, and assembly features for projects requiring both casting and precision machining.

Carbon Steel Casting Applications Across Industries


Carbon steel investment castings are widely used in industrial applications where strength, machinability, and cost efficiency are more important than high corrosion resistance. Zeren supports carbon steel cast and machined parts for machinery, transportation, pump and valve, hardware, and general engineering projects.

Industrial Machinery
Carbon steel castings are commonly used for machinery brackets, connector blocks, supports, housings, equipment fittings, and other mechanical components requiring strength and repeatable manufacturing.
Pump & Valve
For general fluid-handling systems, carbon steel can be used for pump covers, valve components, connector seats, elbows, and supporting parts where corrosion resistance is not the primary requirement.
Transportation
Carbon steel investment castings can be used for transportation-related brackets, mounts, connecting parts, mechanical fittings, and load-bearing components based on project requirements.
Hardware & General Engineering
Carbon steel is suitable for custom hardware, structural fittings, clamps, connectors, and general engineering cast parts that require practical strength and secondary surface finishing.

Investment Casting and CNC Machining for Carbon Steel Parts


Many carbon steel parts require both near-net-shape casting and secondary machining. Investment casting forms the main geometry, while CNC machining is used for holes, threads, bores, sealing surfaces, mounting faces, and other functional dimensions.

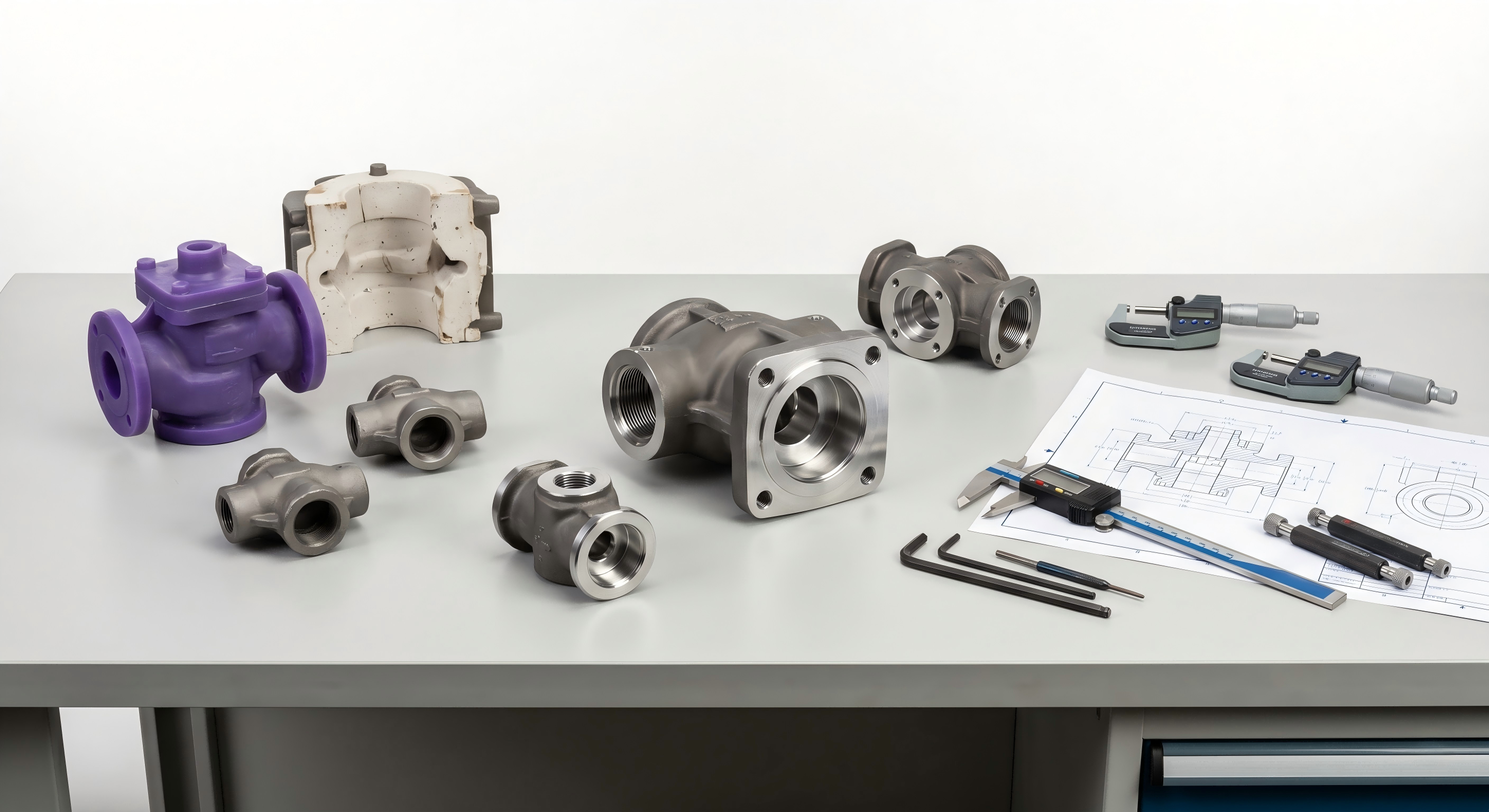

Carbon steel investment casting and CNC machining process for custom parts

1. Drawing or Sample Review

We review the drawing, 3D file, sample, material grade, tolerance requirement, surface finish requirement, and application details before quotation.

2. Material Grade Evaluation

A suitable carbon steel grade can be evaluated according to the required strength, machining needs, heat treatment expectations, surface protection, and project cost target.
3. Tooling and Wax Pattern Production
Tooling is prepared according to the confirmed part design, and wax patterns are produced for the investment casting process.
4. Carbon Steel Investment Casting
The silica sol investment casting process is used to produce carbon steel components with complex shapes, stable casting quality, and good surface finish.
5. Heat Treatment When Required
Depending on the grade and application, heat treatment can be arranged to improve mechanical properties, hardness, toughness, or dimensional stability.
6. CNC Machining and Inspection
Critical surfaces and dimensions are machined after casting, followed by dimensional inspection, surface check, and material verification when required.

Heat Treatment Options for Carbon Steel Castings

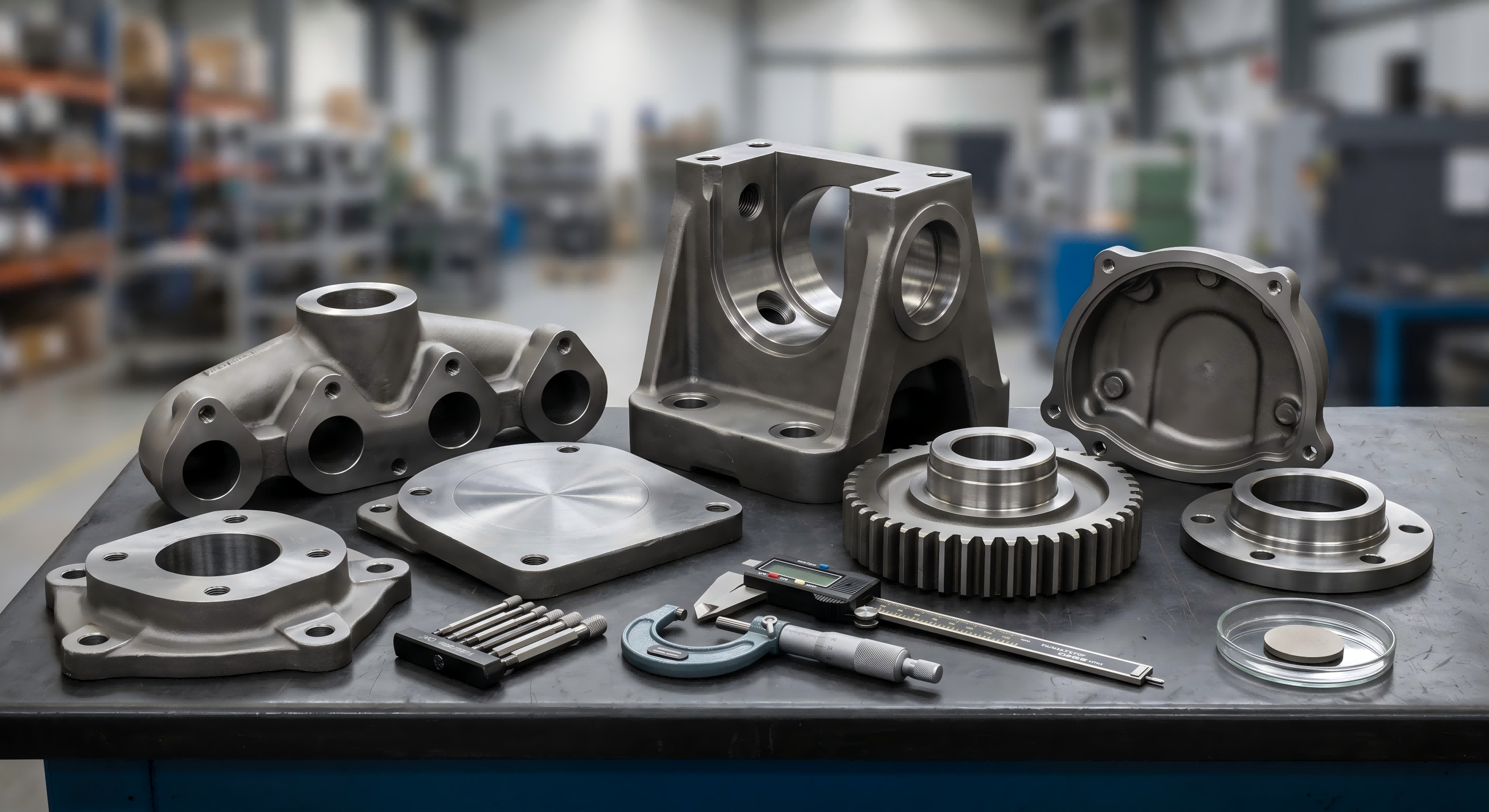

Heat treated carbon steel castings for industrial applications

Heat treatment can be selected according to the carbon steel grade, part structure, mechanical property requirement, and final application.

For some carbon steel castings, heat treatment helps improve strength, hardness, toughness, machinability, or dimensional stability.
Heat Treatment OptionTypical Purpose
AnnealingImprove machinability and reduce internal stress
NormalizingRefine structure and improve mechanical consistency
QuenchingIncrease hardness and strength when required
TemperingImprove toughness and reduce brittleness after quenching
CarburizingImprove surface hardness for selected wear-related components
Stress RelievingReduce residual stress after casting or machining
Available heat treatment options depend on the material grade, part geometry, mechanical requirement, and customer specification. We can help evaluate whether heat treatment is necessary based on your drawing and application.
Surface Finishing Options for Carbon Steel Castings



Carbon steel is more sensitive to rust than stainless steel, so surface finishing is often selected not only for appearance but also for basic protection, storage, handling, and final working conditions.

The suitable finishing method should be confirmed according to the part geometry, application environment, assembly needs, and customer requirements.

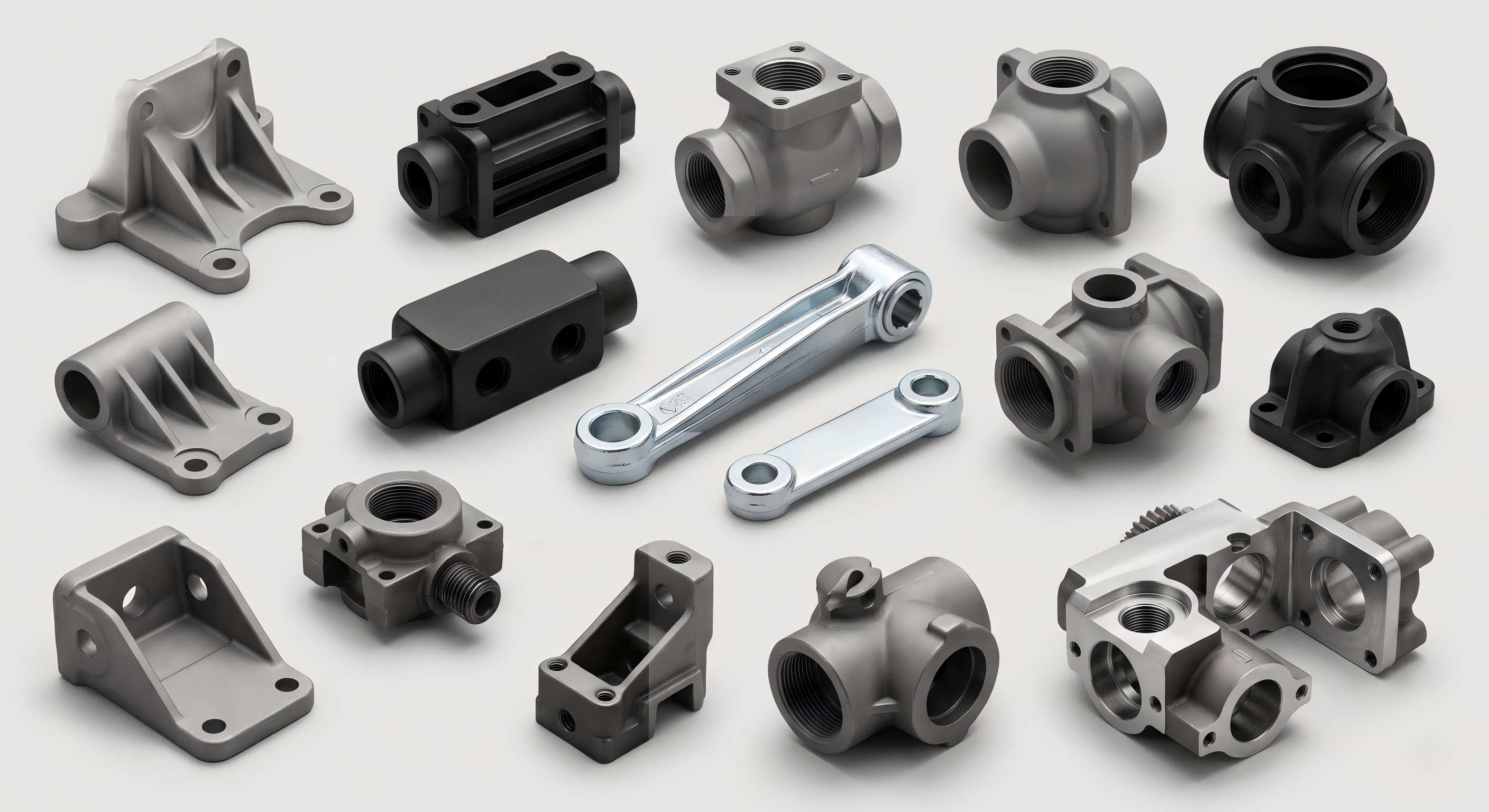

Surface finishing options for carbon steel investment castings
FinishSuitable For
Shot BlastingGeneral surface cleaning and removal of casting residue
Sand BlastingUniform matte surface and surface preparation before coating
Black OxideDark appearance and limited short-term surface protection
Zinc PlatingImproved corrosion protection for selected small or medium parts
Nickel PlatingAppearance improvement and selected functional protection
Powder CoatingColored protective finish for industrial or outdoor applications
PaintingGeneral anti-rust protection and appearance requirement
PhosphatingSurface preparation or functional anti-rust treatment before coating
Available finishing options depend on part geometry, material grade, surface requirement, quantity, and customer specification. For carbon steel parts, packaging and anti-rust protection should also be considered before shipment.

Quality Control for Carbon Steel Investment Castings


Quality control for carbon steel casting projects should cover material verification, casting appearance, dimensional accuracy, CNC-machined surfaces, heat treatment condition, surface finishing, and packaging. Zeren can support inspection based on customer drawings, samples, and project requirements.

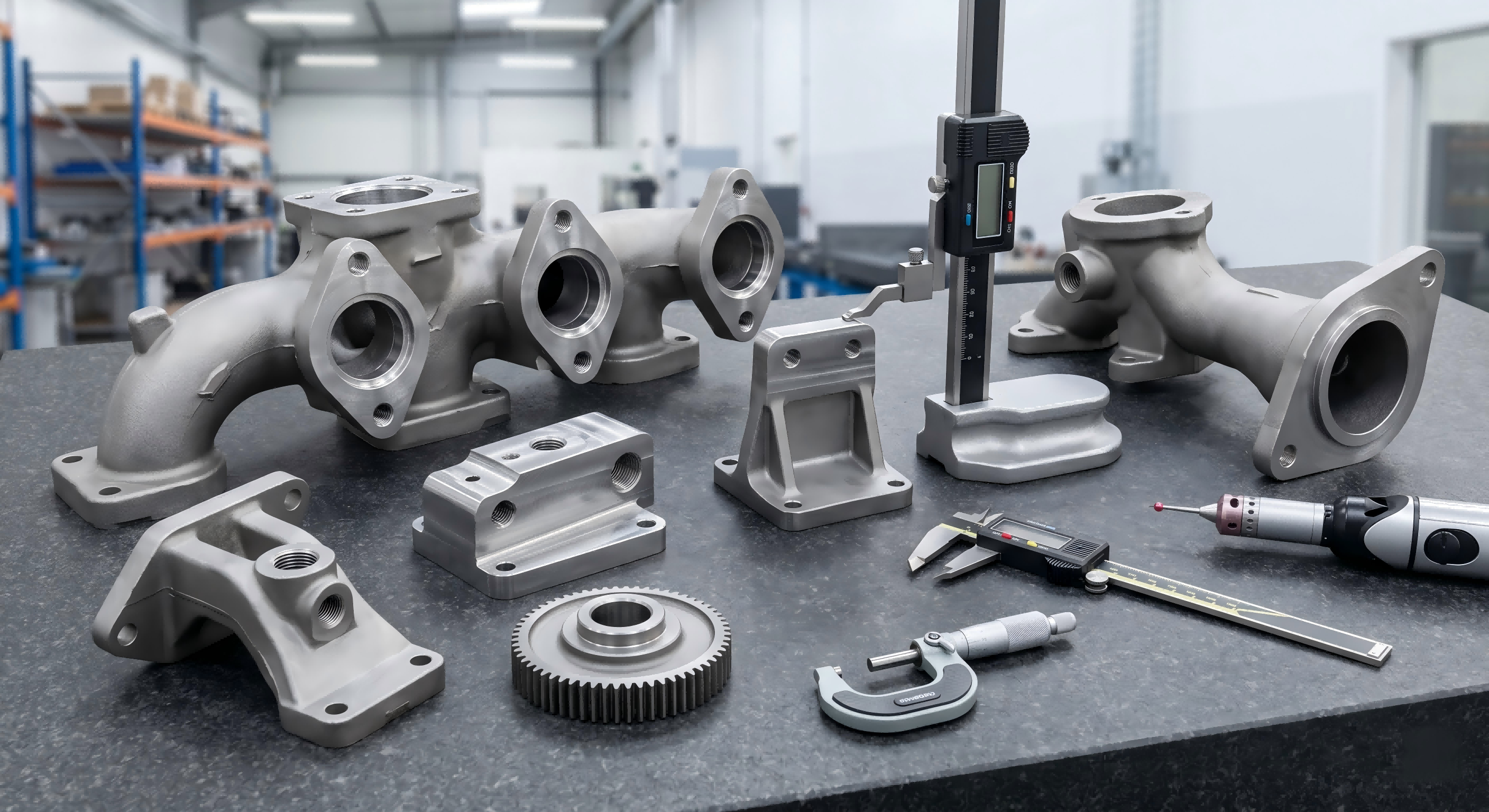

Quality inspection for carbon steel investment casting and machined parts
1. Material Verification
Chemical composition inspection can be arranged to confirm the required carbon steel grade when necessary.
2. Dimensional Inspection
Key dimensions, holes, bores, mounting faces, threads, and assembly areas can be checked according to customer drawings.
3. Casting Appearance Check
Casting surfaces are checked for visible defects, surface consistency, blasting quality, and finishing condition before shipment.
4. Machining Accuracy Control
CNC-machined areas such as datum surfaces, holes, threads, sealing faces, and flat mounting areas are inspected according to tolerance requirements.
5. Heat Treatment and Hardness Check
For parts requiring heat treatment, hardness or other inspection items can be checked according to the agreed specification.
6. Anti-Rust Packaging
For carbon steel parts, anti-rust protection and suitable packaging should be considered to reduce corrosion risk during storage and transportation.
Carbon Steel vs Stainless Steel vs Alloy Steel: How to Choose


Carbon steel is not always better or worse than stainless steel, duplex stainless steel, or alloy steel. The right choice depends on corrosion resistance, strength, wear conditions, heat treatment needs, machining requirements, and cost expectations.

Material TypeMain AdvantageTypical UseWhen to Consider
Carbon SteelCost-effective strength and machinabilityMachinery parts, brackets, connectors, hardware, transportation partsWhen corrosion resistance is not the main requirement
Stainless SteelCorrosion resistance and clean surface appearancePump and valve parts, food equipment, medical parts, marine hardwareWhen moisture, chemicals, or clean surfaces are important
Duplex Stainless SteelHigher strength and stronger corrosion resistanceMarine, petrochemical, chemical-processing, corrosion-critical partsWhen chloride exposure or aggressive corrosion is a concern
Alloy SteelHigher strength, toughness, wear resistance, and heat treatment responseHeavy-duty machinery, wear-related parts, high-load componentsWhen carbon steel is not strong or wear-resistant enough

Explore Related Casting Solutions


Carbon steel is a practical choice for many industrial casting projects, but some applications may require better corrosion resistance, higher strength, improved wear resistance, or additional machining and finishing support. Explore related materials and manufacturing solutions to help select the most suitable process for your parts.

Alternative Materials
Stainless Steel
For parts requiring corrosion resistance, clean surface quality, and versatile industrial use, stainless steel such as 304, 316, or 316L may be more suitable.
Duplex Stainless Steel
For harsh corrosive environments involving seawater, chlorides, chemical media, or petrochemical service conditions, duplex stainless steel such as 2205 or 2507 may be considered.
Alloy Steel
For parts requiring higher strength, toughness, wear resistance, or stronger heat treatment response, alloy steel may be a better option.
Supporting Capabilities
Investment Casting
For complex carbon steel geometries, near-net-shape production, and stable casting quality.
CNC Machining
For holes, threads, bores, sealing faces, flat mounting surfaces, and other critical dimensions after casting.
Heat Treatment
For improving hardness, strength, toughness, machinability, or dimensional stability when required.
Surface Finishing
For blasting, black oxide, plating, painting, powder coating, and other finishing requirements for carbon steel parts.
Frequently Asked Questions About Carbon Steel Investment Casting

Q1. What carbon steel grades can be used for investment casting?


Common carbon steel grades for investment casting include 1015, 1025, 1035, 1045, Q235, and Q355. The suitable grade depends on the drawing requirement, mechanical performance, machining needs, heat treatment condition, and working environment.

Q2. When should carbon steel be selected instead of stainless steel?


Carbon steel is often selected when the part requires cost-effective strength, good machinability, and general industrial performance, while corrosion resistance is not the main requirement. Stainless steel is usually more suitable for wet, corrosive, hygienic, or chemical environments.

Q3. Can carbon steel investment castings be CNC machined?


Yes. Carbon steel investment castings are often CNC machined after casting for holes, threads, bores, sealing faces, mounting surfaces, and other critical assembly dimensions.

Q4. Do carbon steel castings need heat treatment?


Not always. Heat treatment depends on the material grade, mechanical requirement, part structure, and final application. Some carbon steel parts may require annealing, normalizing, quenching, tempering, or stress relieving.

Q5. Do carbon steel castings need surface finishing?


In many cases, yes. Carbon steel is more sensitive to rust than stainless steel, so surface finishing such as shot blasting, black oxide, plating, painting, powder coating, or anti-rust protection may be required depending on the application and storage conditions.

Q6. What information is needed for a carbon steel casting quotation?


A drawing, 3D file, sample photo, material grade, quantity, tolerance requirement, surface finish requirement, heat treatment requirement, and application environment will help us evaluate a suitable casting and machining solution.


Need Support for a Custom Carbon Steel Casting Project?

Send us your drawing, sample, material requirement, quantity, tolerance details, or application information, and our team will help evaluate a suitable carbon steel investment casting and CNC machining solution for your project.

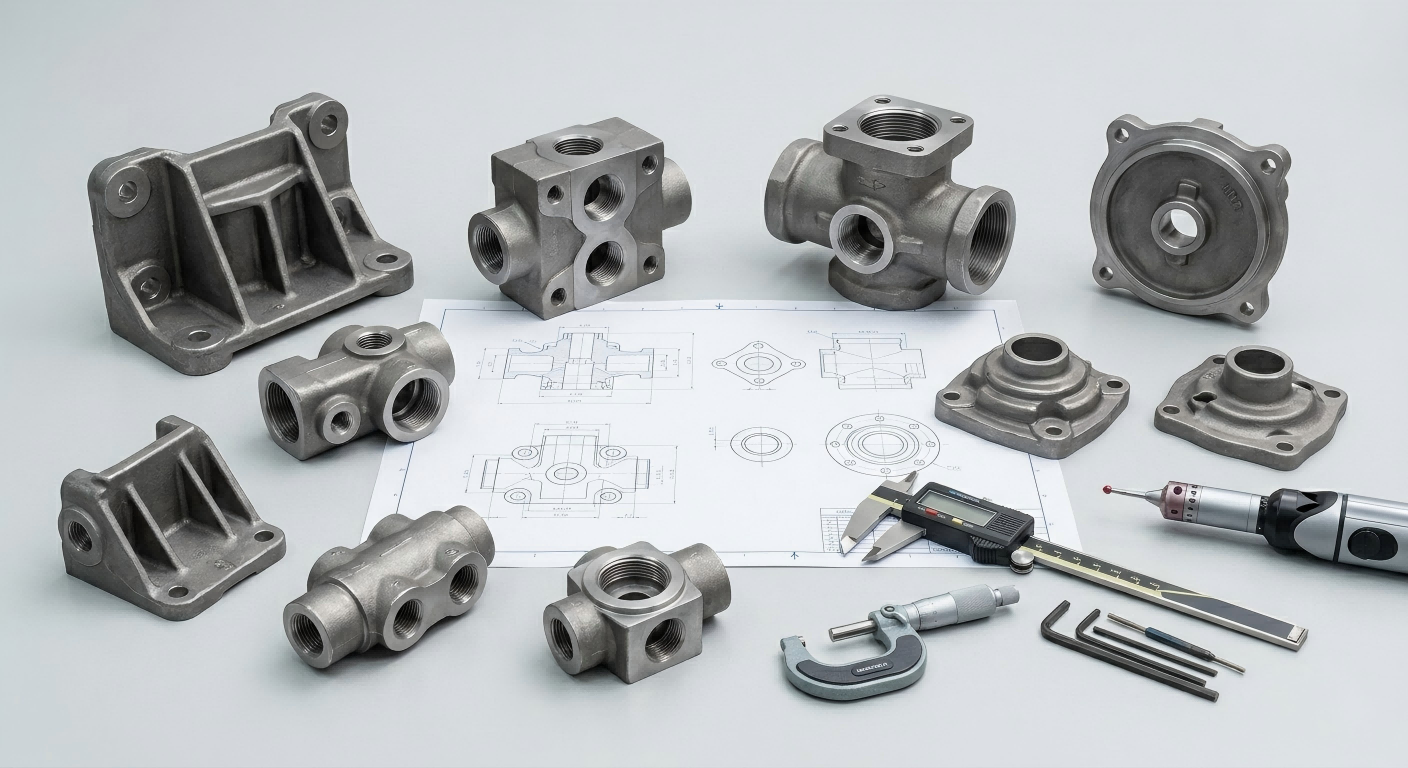

Engineering support for custom carbon steel investment casting projects
