Tooling & 3D Printing for Investment Casting Projects
From early-stage prototypes to production tooling, Zeren supports custom investment casting projects with engineering review, tooling development, 3D printed patterns, rapid casting, and sample validation.
Our tooling and 3D printing support helps customers evaluate casting feasibility, reduce development risk, and move more smoothly from design concept to finished metal components.
Why Tooling and 3D Printing Matter Before Casting Production
Tooling is one of the most important steps in an investment casting project. A well-designed tool helps control wax pattern quality, dimensional consistency, shrinkage allowance, surface condition, and repeatability during production.
For repeatable wax pattern production, Zeren can support aluminum or steel tooling depending on part geometry, expected quantity, and production requirements. Proper tooling helps improve wax pattern consistency, dimensional repeatability, and stable casting quality before moving into batch production.
For new or complex parts, 3D printing and rapid casting can also support early design verification before committing to full production tooling. This is especially useful when the part has complex geometry, thin walls, internal features, or functional areas that need CNC machining after casting.
At Zeren, we review drawings, 3D models, samples, and application requirements before tooling starts, helping customers better understand casting feasibility, tooling options, machining allowance, and potential manufacturing risks.
Tooling Options We Support
Metal Tooling for Production Casting

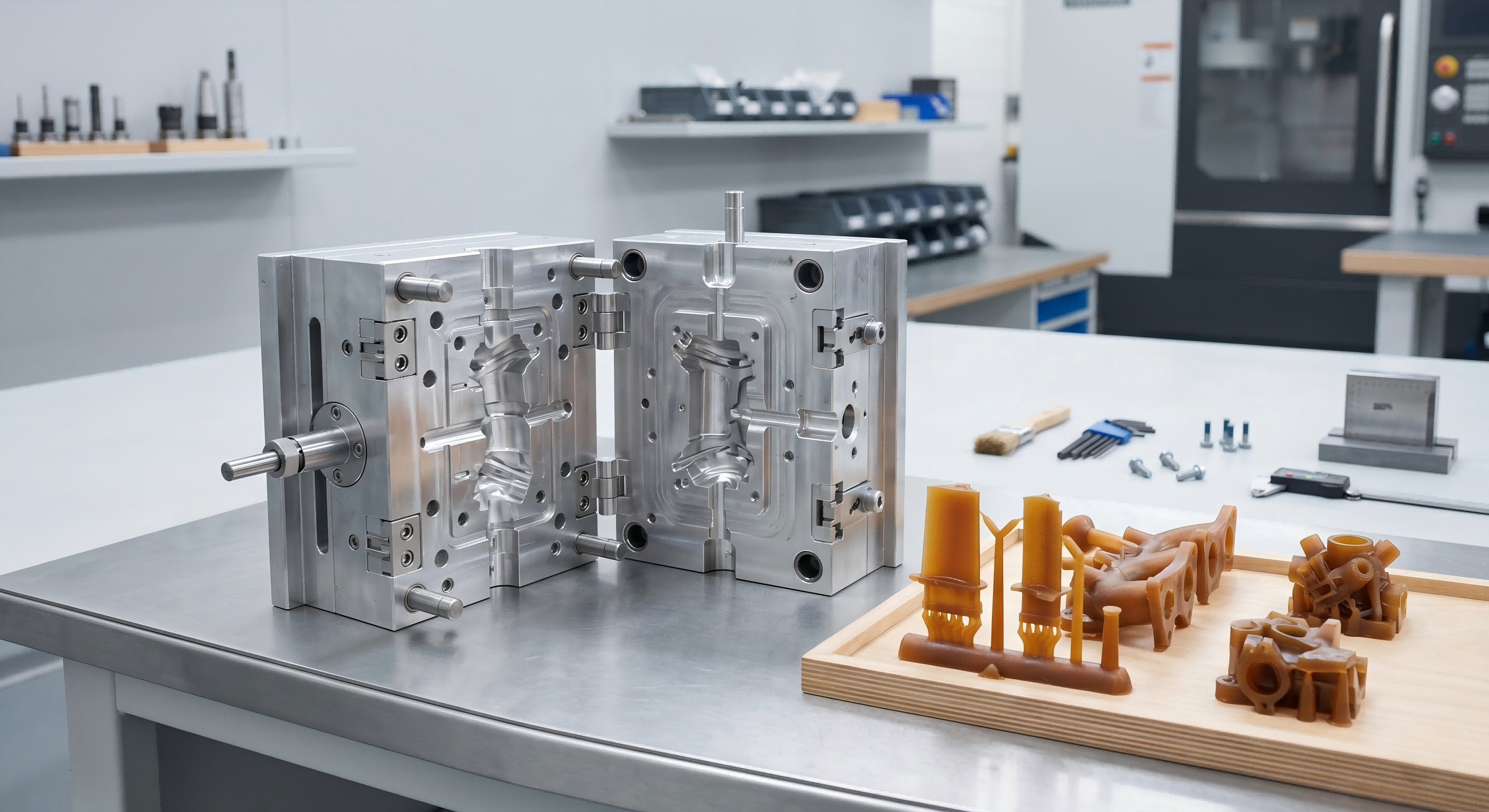

Durable aluminum or steel tooling for repeatable wax pattern production and stable batch casting quality. Suitable for confirmed designs, repeat orders, and projects requiring better dimensional consistency.
Prototype Tooling
Practical tooling support for sample validation, design adjustment, and low-volume casting projects before moving into full production. Suitable when the design, expected quantity, or machining areas still need to be verified.
Tool Modification Support

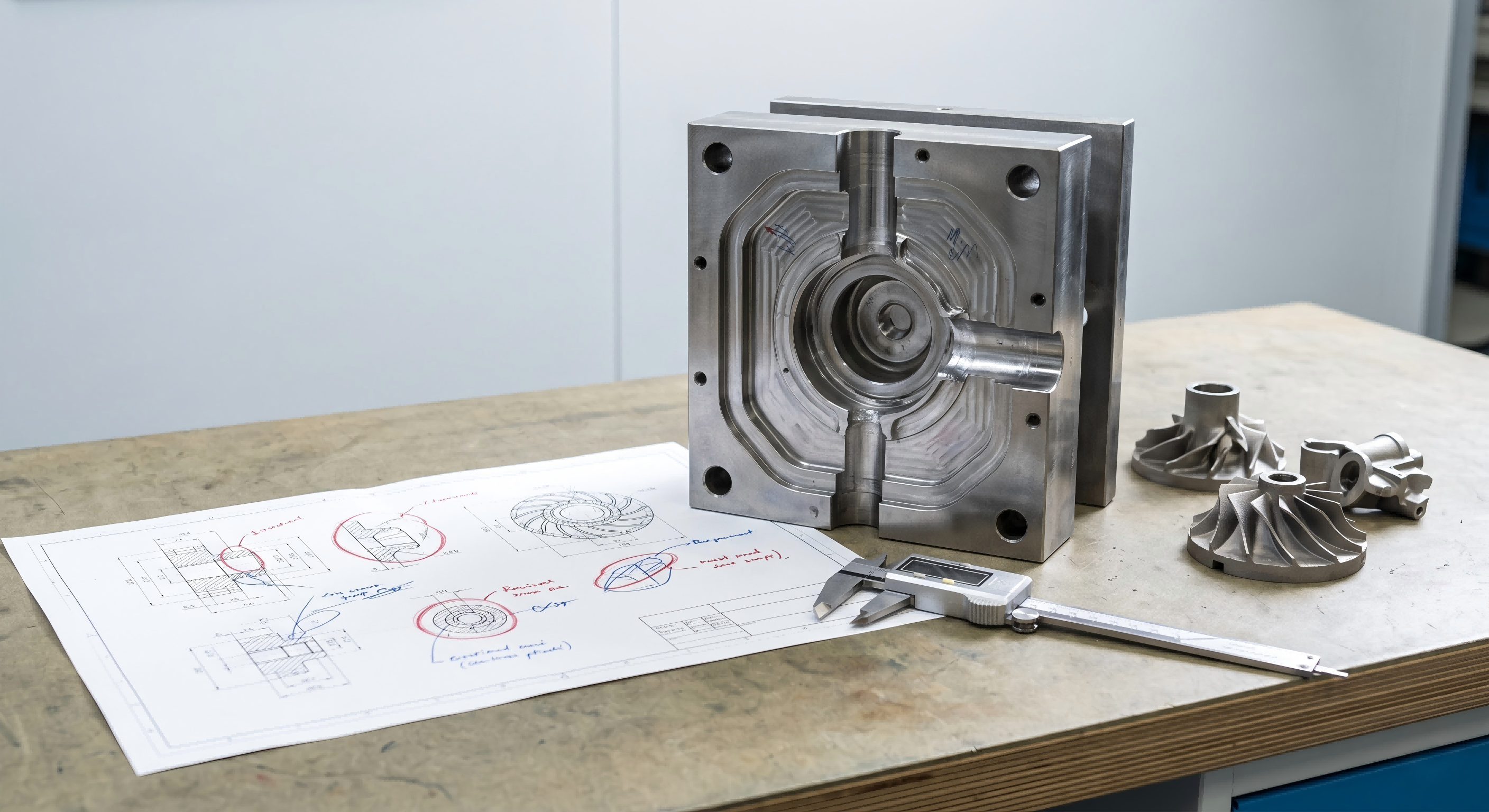

When a design changes after sample testing, we help review whether the existing tool can be modified. Feasibility depends on mold structure, material allowance, machining areas, and revised geometry.
Silicone Rubber Mold for Prototypes

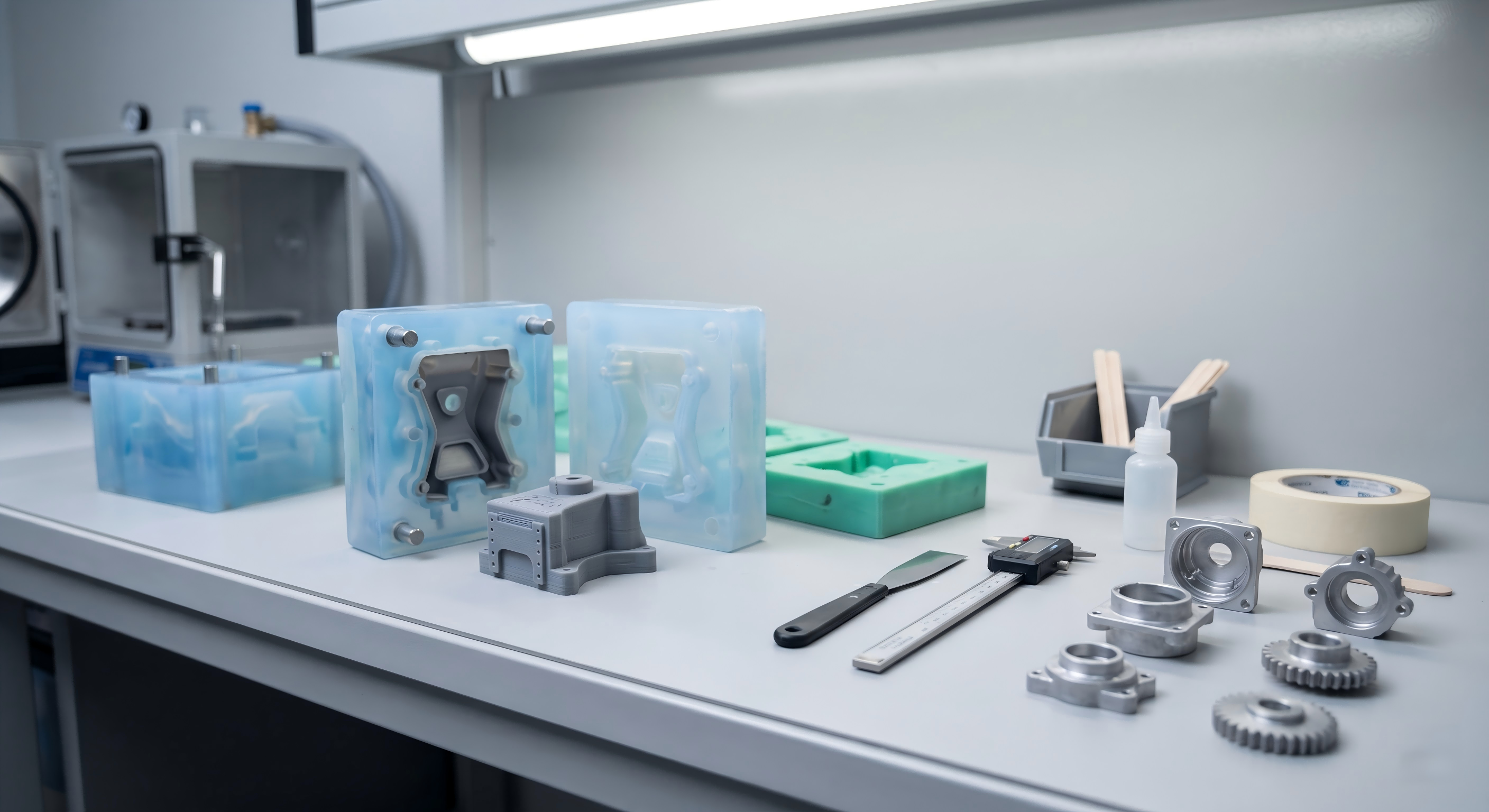

Flexible mold support for selected prototype or low-volume projects where quick turnaround and lower initial tooling cost are important. Generally used for early-stage validation rather than stable batch production.
For stable repeat production, metal tooling is still recommended. 3D printing is mainly used to support prototype validation, design review, or selected low-volume casting projects before full tooling investment.
3D Printing and Rapid Casting Support
For some custom casting projects, 3D printing can help shorten the development stage by producing patterns or prototypes before full production tooling is finalized. This is useful for complex parts, early design verification, low-volume testing, and projects that require faster sample feedback.
Zeren mainly uses rapid casting support for investment casting projects, while SLA and SLS may also be used depending on the prototype structure, accuracy requirements, surface condition, and project purpose.
Rapid Casting Sample Support
A practical option for producing casting patterns or sample parts faster, especially for prototype development and small-batch investment casting projects.
SLA Printed Patterns
SLA printing can support detailed prototype patterns with smooth surfaces, helping customers check form, fit, and casting feasibility.

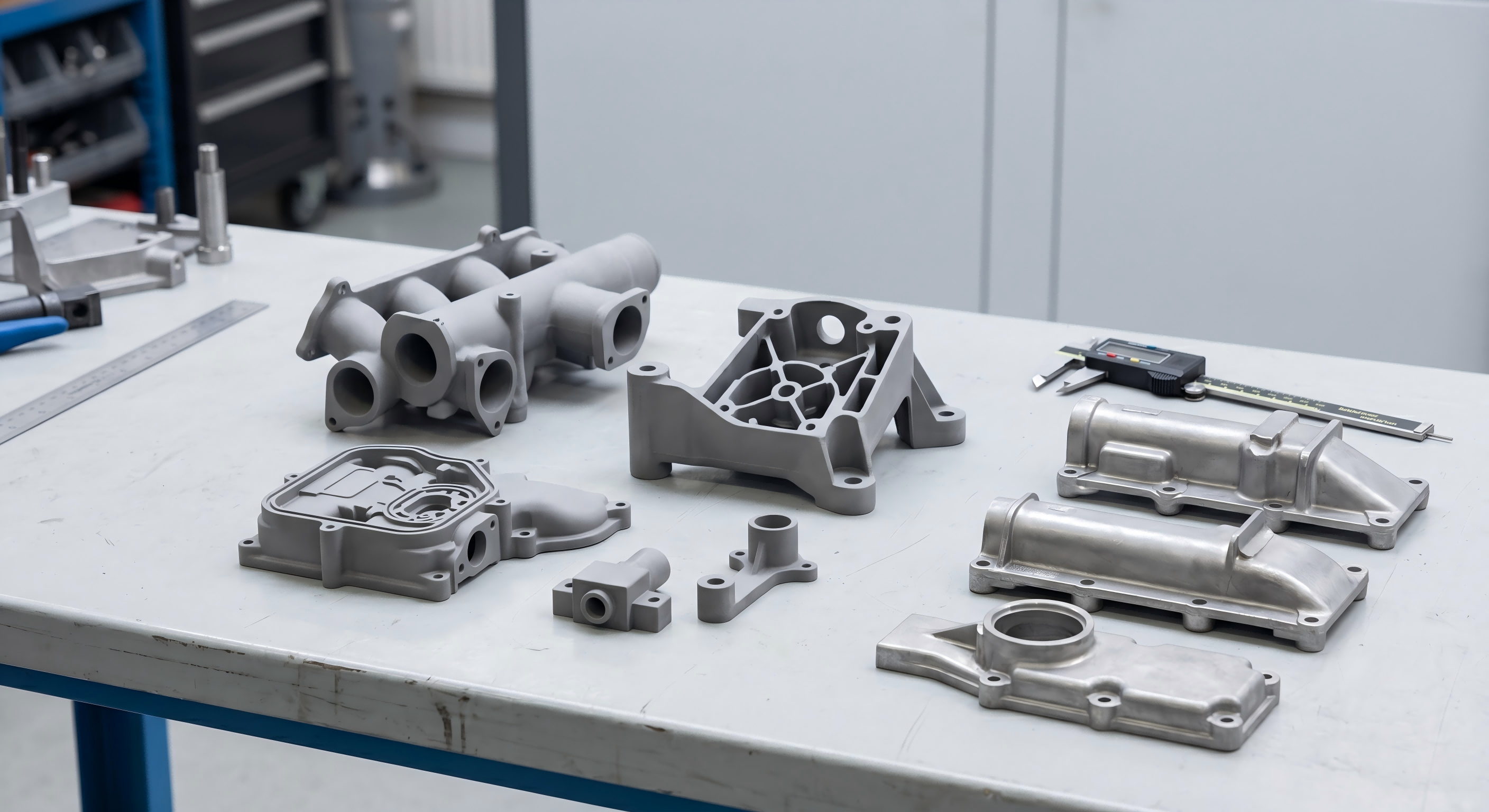

SLS Prototype Support
SLS may be suitable for selected prototype structures where design complexity, functional evaluation, or early-stage verification is required.
Prototype or Production Tooling? Choosing the Right Development Path
Different casting projects require different development routes. The right choice depends on whether the design has been tested, the expected quantity, casting risk, machining requirements, and long-term production plan.
Small Batch or Trial Order
Recommended Path:
Prototype tooling or rapid casting
Why It Helps:
Controls initial cost and shortens the development stage.
New Design / Not Yet Tested
Recommended Path:
3D printed pattern or prototype tooling
Why It Helps:
Helps check geometry and casting feasibility before investing in production tooling.
Complex Part / Uncertain Casting Risk
Recommended Path:
Design review + rapid casting support
Why It Helps:
Reduces casting risk before committing to a production mold.
Repeated Production Order
Recommended Path:
Metal production tooling
Why It Helps:
Provides better repeatability, dimensional stability, and long-term cost efficiency.
Existing Part Needs Adjustment
Recommended Path:
Tool modification review
Why It Helps:
Helps evaluate whether the existing mold can be modified practically.
Casting + CNC Machining Project
Recommended Path:
Tooling review + machining allowance planning
Why It Helps:
Helps define critical surfaces, holes, threads, sealing areas, and CNC machining allowance before tooling starts.
The best option depends on part geometry, order quantity, dimensional requirements, material, surface finishing, and whether CNC machining is required after casting. Send us your drawing or 3D model, and our team can recommend a practical development route.

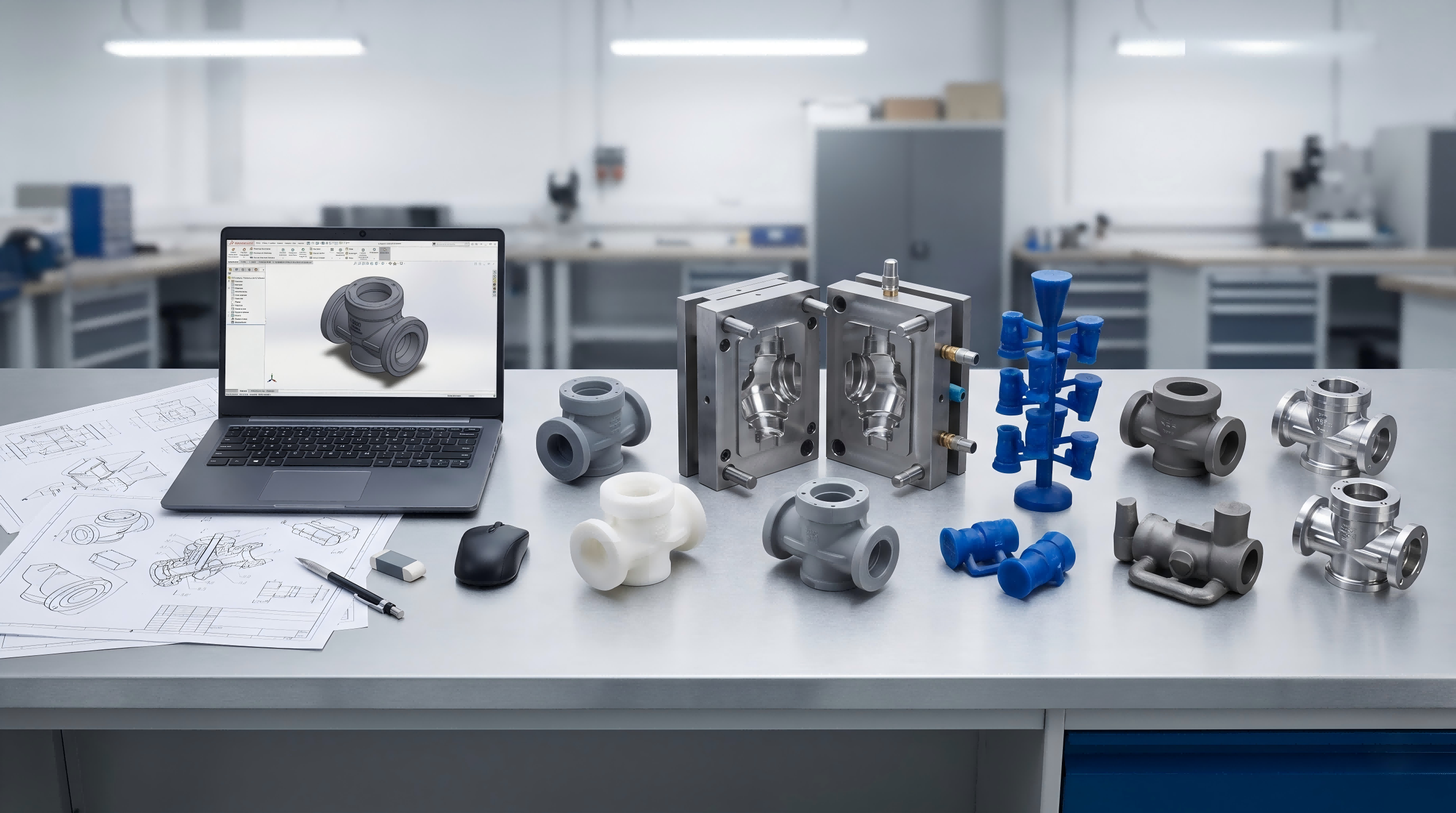

From Drawing Review to Casting Production
Step 1
Drawing / Sample Review
We review drawings, 3D models, samples, material requirements, tolerances, and application conditions.
Step 2
DFM and Tooling Feasibility Check
We evaluate wall thickness, radii, holes, machining allowance, shrinkage, gate position, and wax pattern feasibility.
Step 3
Tooling or 3D Printing Route Selection
We recommend metal tooling, prototype tooling, rapid casting, or 3D printed pattern support depending on the project stage.
Step 4
Sample Casting and Validation
Prototype or sample castings are produced for dimensional inspection, machining verification, and customer approval.
Step 5
CNC Machining and Secondary Operations
Critical surfaces, holes, threads, sealing areas, and mounting faces can be CNC machined after casting.
Step 6
Production Tooling and Batch Manufacturing
After sample approval, production tooling and batch casting can be arranged with stable process control.
Typical Projects We Support
Pump and Valve Components

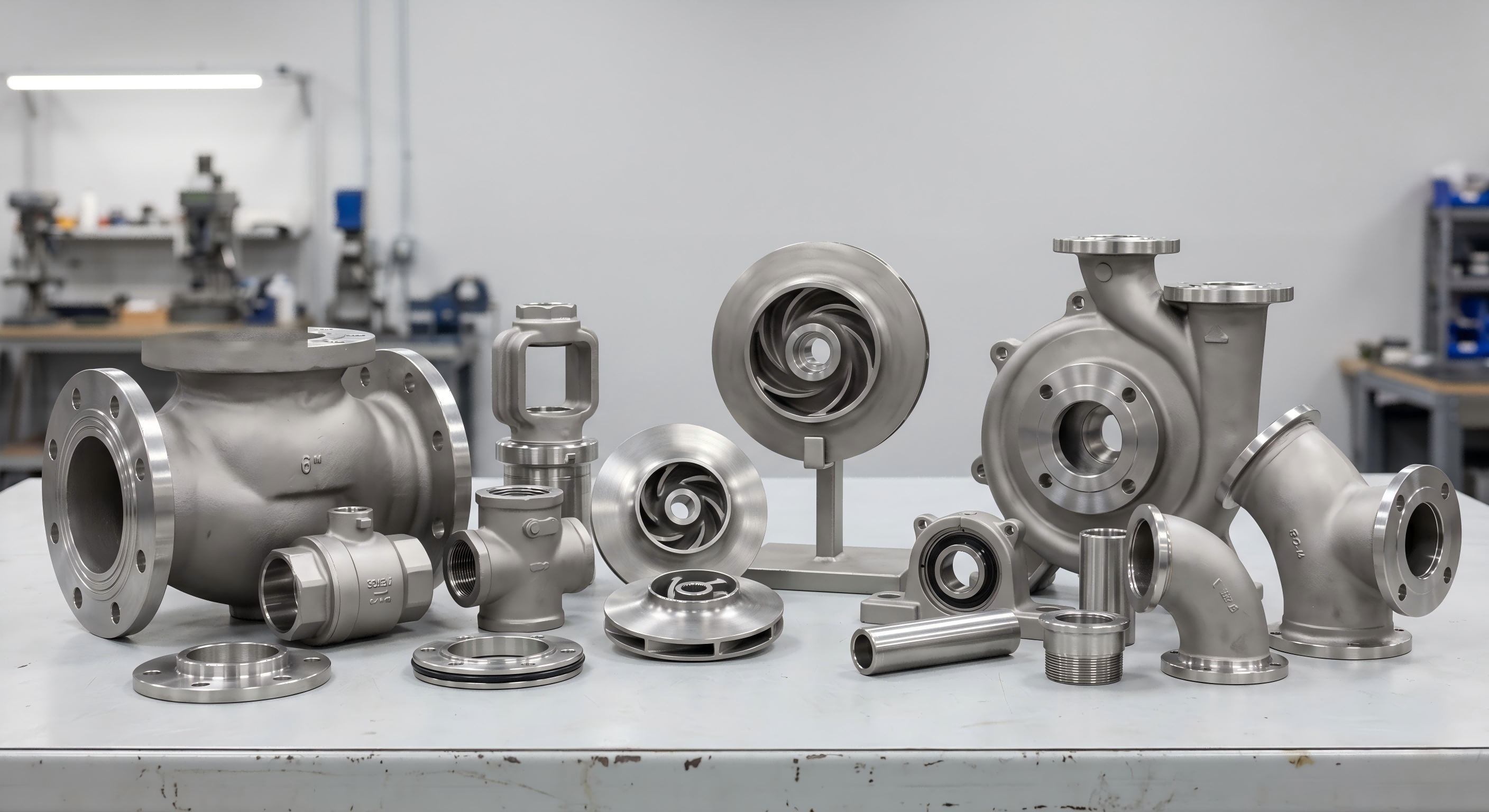

Prototype and production tooling support for valve bodies, pump components, impellers, elbows, fittings, and flow-control castings.
Industrial Machinery Parts
Tooling and sample development support for brackets, housings, supports, wear parts, and precision machinery castings.
Stainless Steel Fittings
Custom tooling and rapid casting support for stainless steel connectors, fittings, pipe-related components, and small precision cast parts.
Custom Hardware Castings

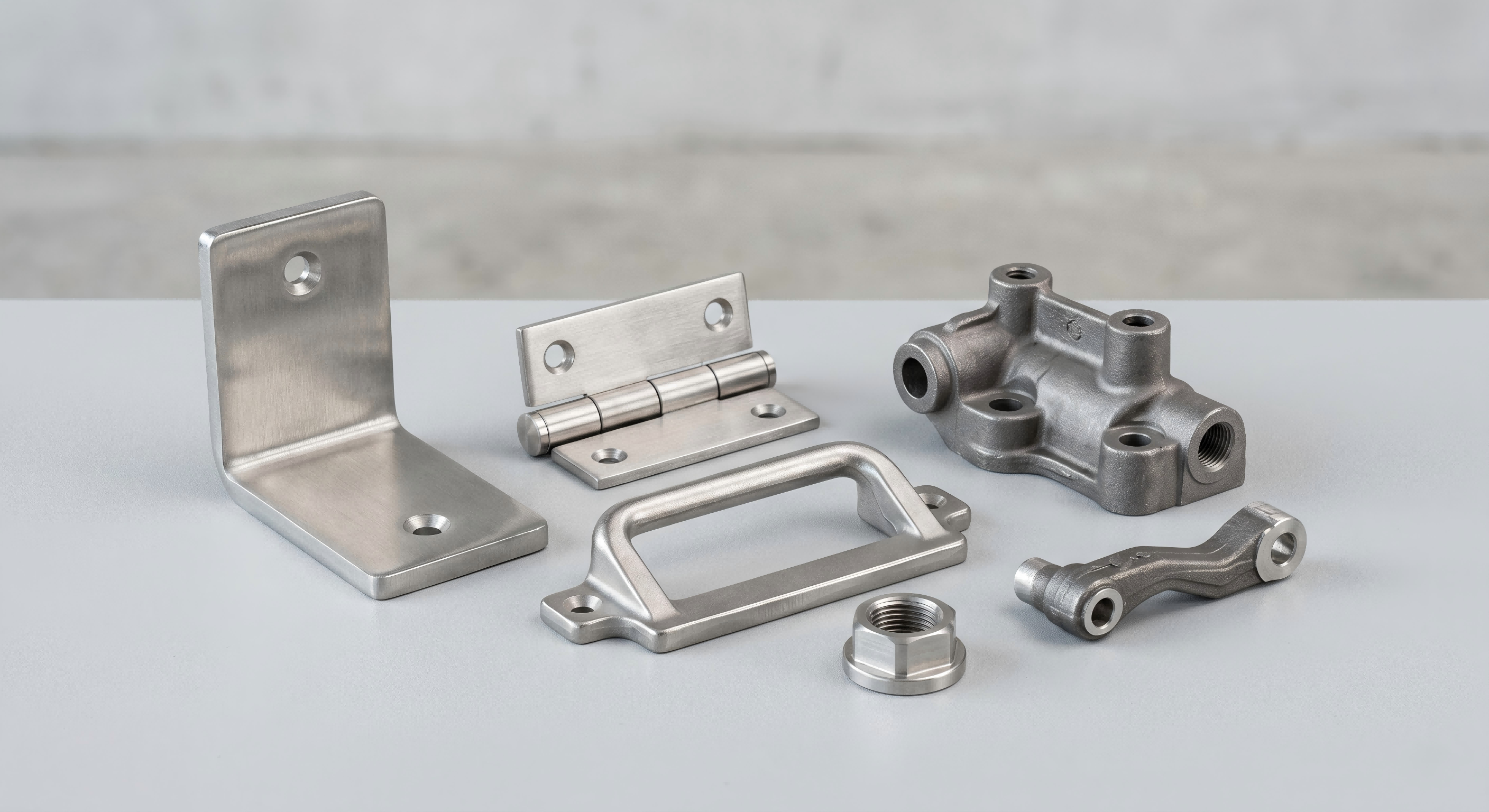

Prototype and tooling support for custom hardware, architectural parts, fastening components, and functional metal accessories.
Complex Geometry Castings
3D printing and tooling support for cast parts with complex curves, cavities, ribs, thin walls, or difficult-to-machine shapes.
CNC-Machined Casting Projects

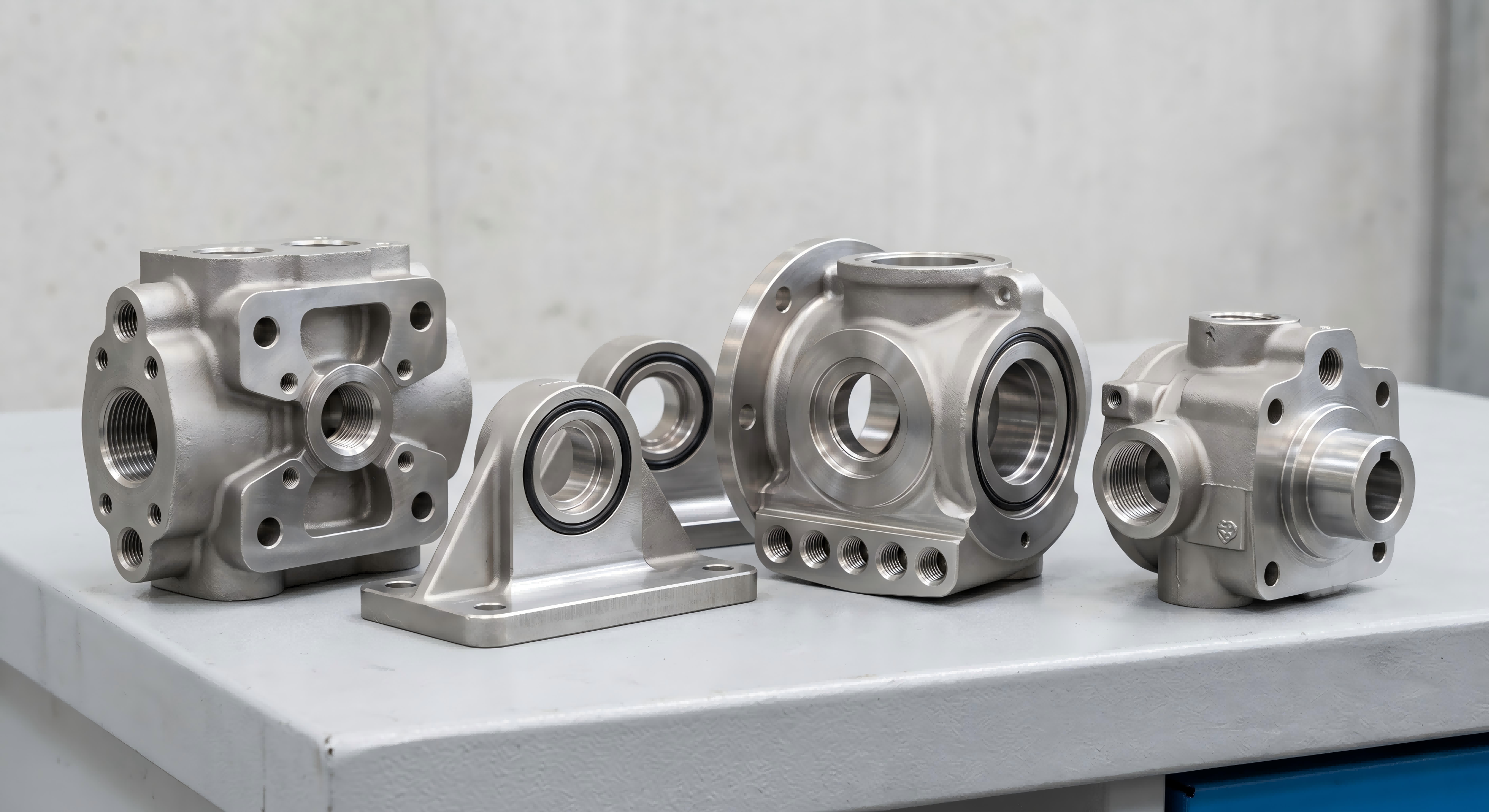

Tooling review for cast parts that require post-casting CNC machining on holes, threads, sealing faces, mounting areas, or tight-tolerance features.
Design Review Before Tooling Starts
Before starting tooling, it is important to confirm whether the part design is suitable for investment casting and whether any areas require CNC machining after casting. Early design review can help avoid unnecessary tooling changes, unstable casting quality, or additional cost during production.
Wall Thickness
Avoid sudden changes between thick and thin sections.
Radii and Transitions
Smooth fillets help reduce casting stress and improve metal flow.
Holes and Cavities
Deep holes, blind holes, and small internal features may need special review.
Machining Allowance
Critical surfaces should be clearly defined before tooling starts.
Shrinkage and Deformation Risk
Part geometry should be reviewed for possible distortion or uneven solidification.
Surface Finishing Requirements
Blasting, passivation, polishing, PVD, powder coating, or other finishes may affect process planning.
Information We Need Before Tooling Review
2D drawing or 3D model
Material grade or application requirement
Estimated order quantity or sample quantity
Critical tolerances and CNC machining areas
Surface finishing and inspection requirements
Related Capabilities and Resources
Investment Casting Services
Custom lost wax casting for stainless steel, carbon steel, alloy steel, duplex stainless steel, and other engineering materials.
CNC Machining Services
Post-casting CNC turning, milling, drilling, tapping, boring, wire cutting, EDM, and manual adjustment support.
Surface Finishing Services
Blasting, passivation, polishing, coating, and other finishing options for custom metal casting projects.
Heat Treatment Services
Heat treatment support for parts requiring strength, hardness, wear resistance, or mechanical performance improvement.
Investment Casting Design Guidelines
Learn how wall thickness, radii, holes, machining allowance, and tooling feasibility affect investment casting projects.
Materials for Investment Casting
Explore stainless steel, carbon steel, alloy steel, duplex stainless steel, and other casting material options.
FAQ
Q1: Can 3D printing replace production tooling for investment casting?
A: For some prototype or low-volume projects, 3D printed patterns or rapid casting support may help reduce early development time. However, for stable batch production, metal tooling is usually more suitable because it provides better repeatability and long-term cost efficiency.
Q2: When should we choose prototype tooling instead of production tooling?
A: Prototype tooling is suitable when the design is still being tested, the quantity is small, or the customer wants to validate the casting before investing in production tooling.
Q3: What information do you need before starting tooling?
A: We usually need drawings, 3D files, material requirements, quantity, tolerance requirements, surface finishing requirements, and information about which areas need CNC machining.
Q4: Can you modify an existing tool if the design changes?
A: In some cases, tool modification is possible. It depends on the type of design change, mold structure, material allowance, and whether the revised geometry can still be produced reliably.
Q5: Do you review casting feasibility before tooling?
A: Yes. We review wall thickness, radii, holes, cavities, machining allowance, shrinkage, deformation risk, and other manufacturing factors before tooling starts.
Need Support Before Building a Casting Tool?
Send us your drawing, 3D model, sample, or project requirements. Our team can help review casting feasibility, tooling options, 3D printing support, machining requirements, and a practical route from prototype to production.
Tooling & Project Review Support
Tooling Support from Prototype to Production

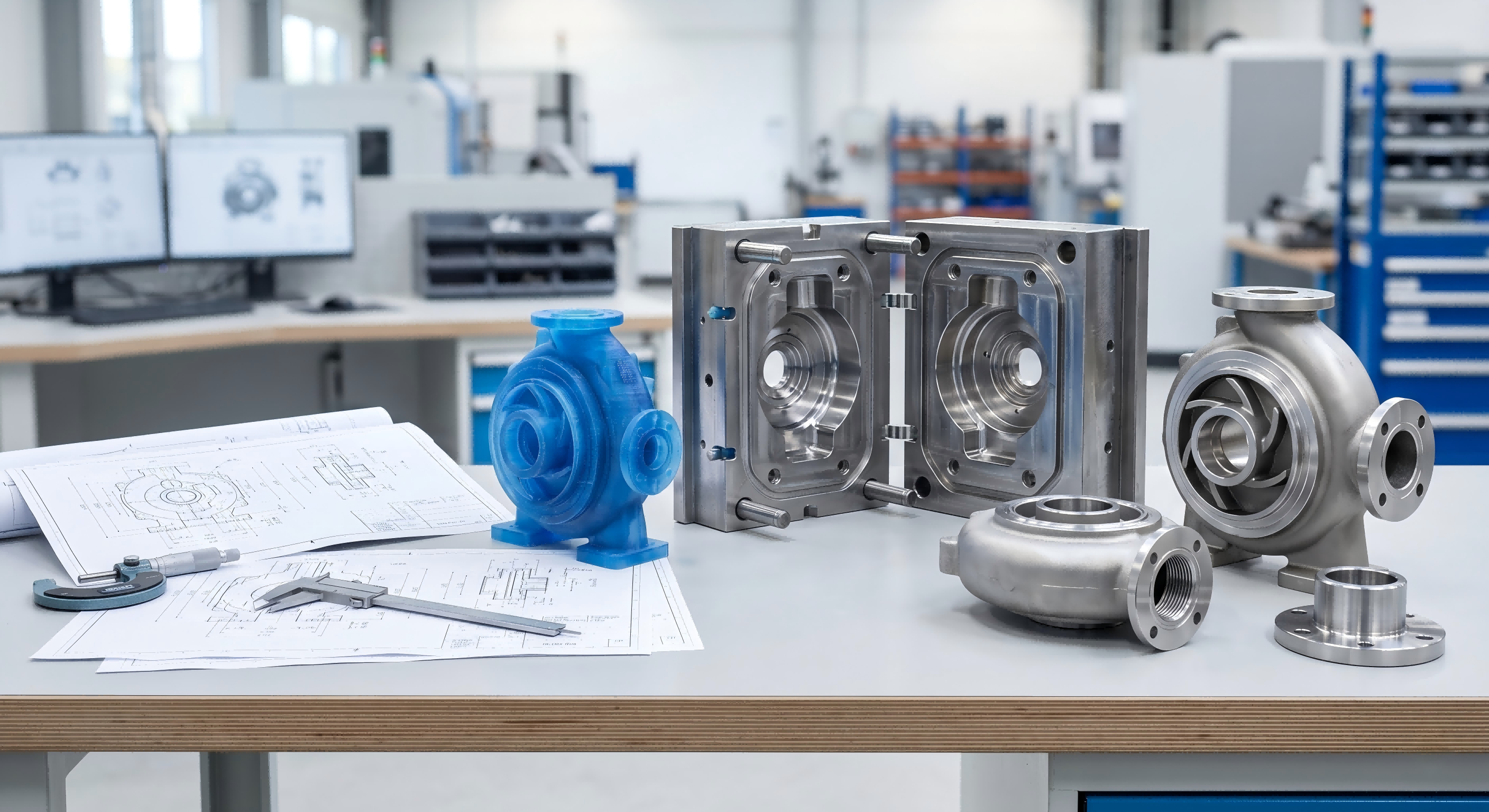

Before starting a casting tool, Zeren can review your drawing, 3D model, sample, material requirements, machining areas, and expected quantity. We help customers choose a practical route between prototype tooling, metal production tooling, 3D printed patterns, rapid casting, and batch manufacturing.
