Pump & Valve Investment Casting Solutions


Custom investment cast and CNC machined components for pump bodies, valve bodies, impellers, connector parts, and other fluid control system components.


Designed for applications that require pressure-bearing structures, machined sealing faces, corrosion-resistant materials, and stable dimensional consistency.


We support custom manufacturing based on drawings, samples, material requirements, and end-use service conditions for pump and valve OEM projects.

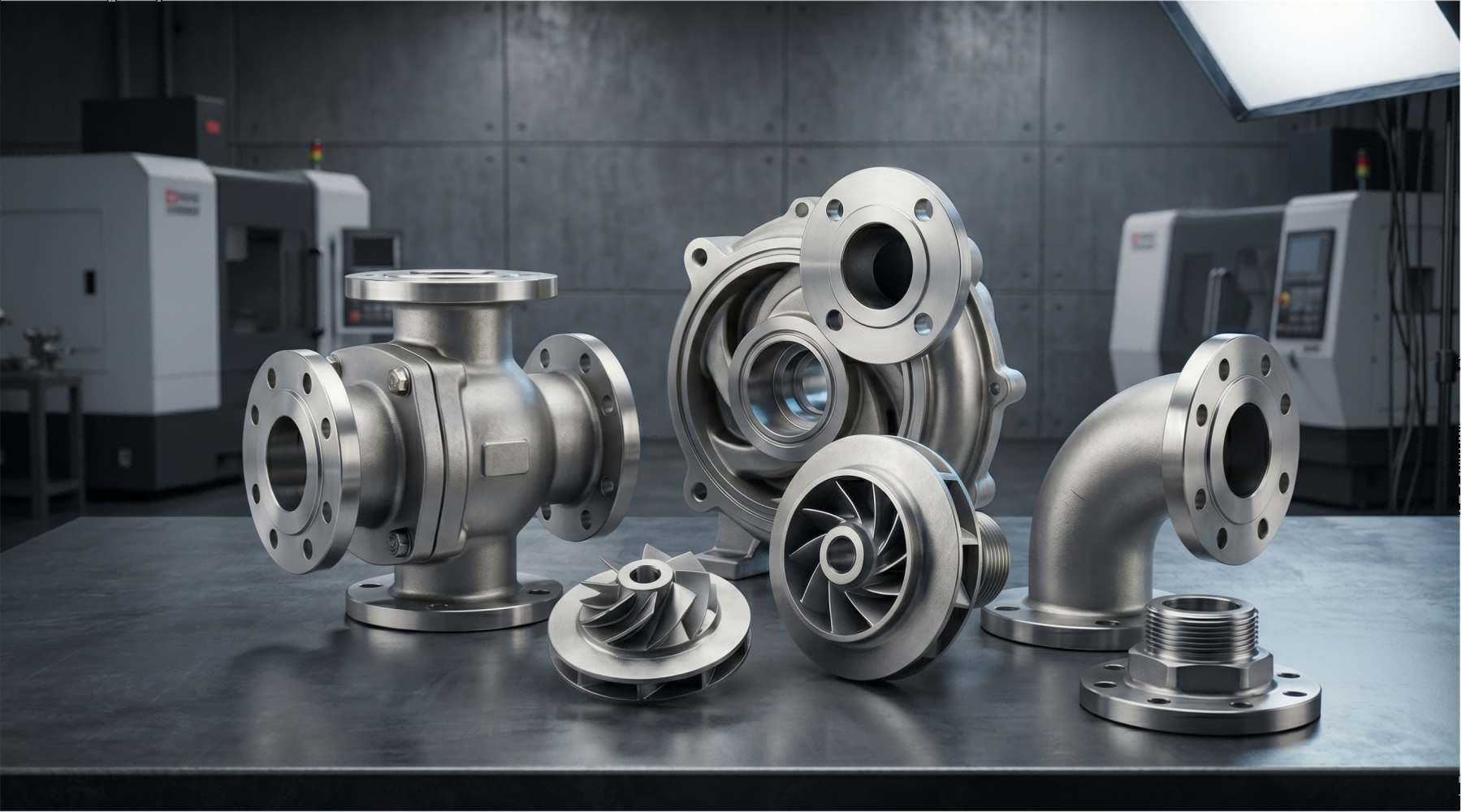

Pump and valve investment casting components with machined metal details
Applications We Support in Pump & Valve Systems

Our custom investment cast and machined components are used across a wide range of pump and valve applications where pressure resistance, sealing performance, corrosion resistance, and machining accuracy are critical.

Industrial Pumps & Fluid Handling
Pump housings, impellers, elbows, and connector parts used in fluid transfer, circulation, and industrial pumping systems.

Control, Gate, Ball & Check Valves

Custom valve bodies, seats, stems, and fittings requiring pressure-bearing structure, sealing surfaces, and reliable assembly accuracy.

Water Treatment & Pipeline Systems

Corrosion-resistant cast components for pumps, valves, filtration systems, and fluid control equipment used in water treatment applications.

Oil, Gas & Chemical Fluid Control

Stainless steel, duplex stainless steel, and alloy steel castings for corrosive, abrasive, or demanding process fluid environments.

HVAC & Process Engineering Equipment

Cast and machined pump and valve components used in cooling, heating, circulation, and process engineering systems.

Typical Pump & Valve Components We Produce


We manufacture non-standard cast and machined components for pump and valve assemblies, with support for complex geometries, internal flow passages, machined interfaces, and sealing-critical areas.

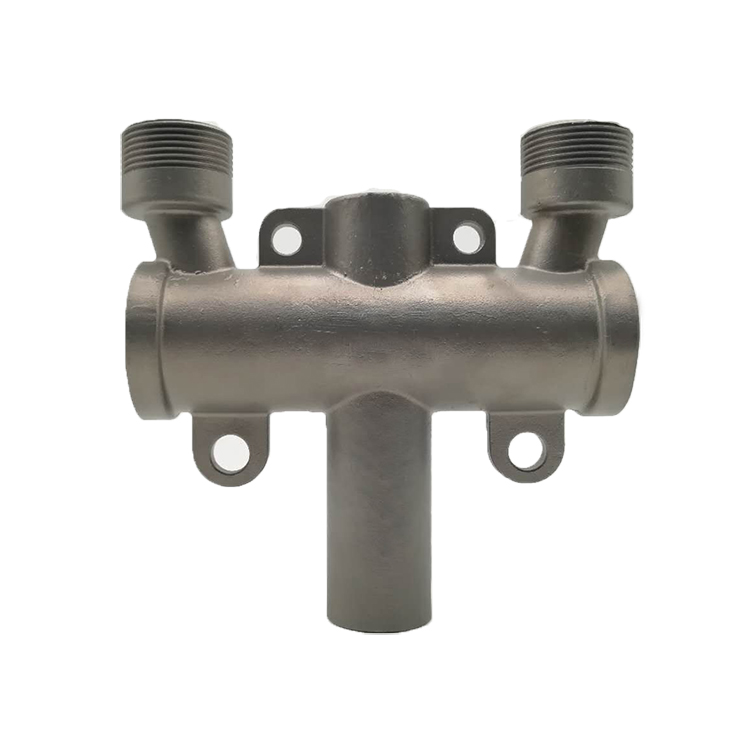

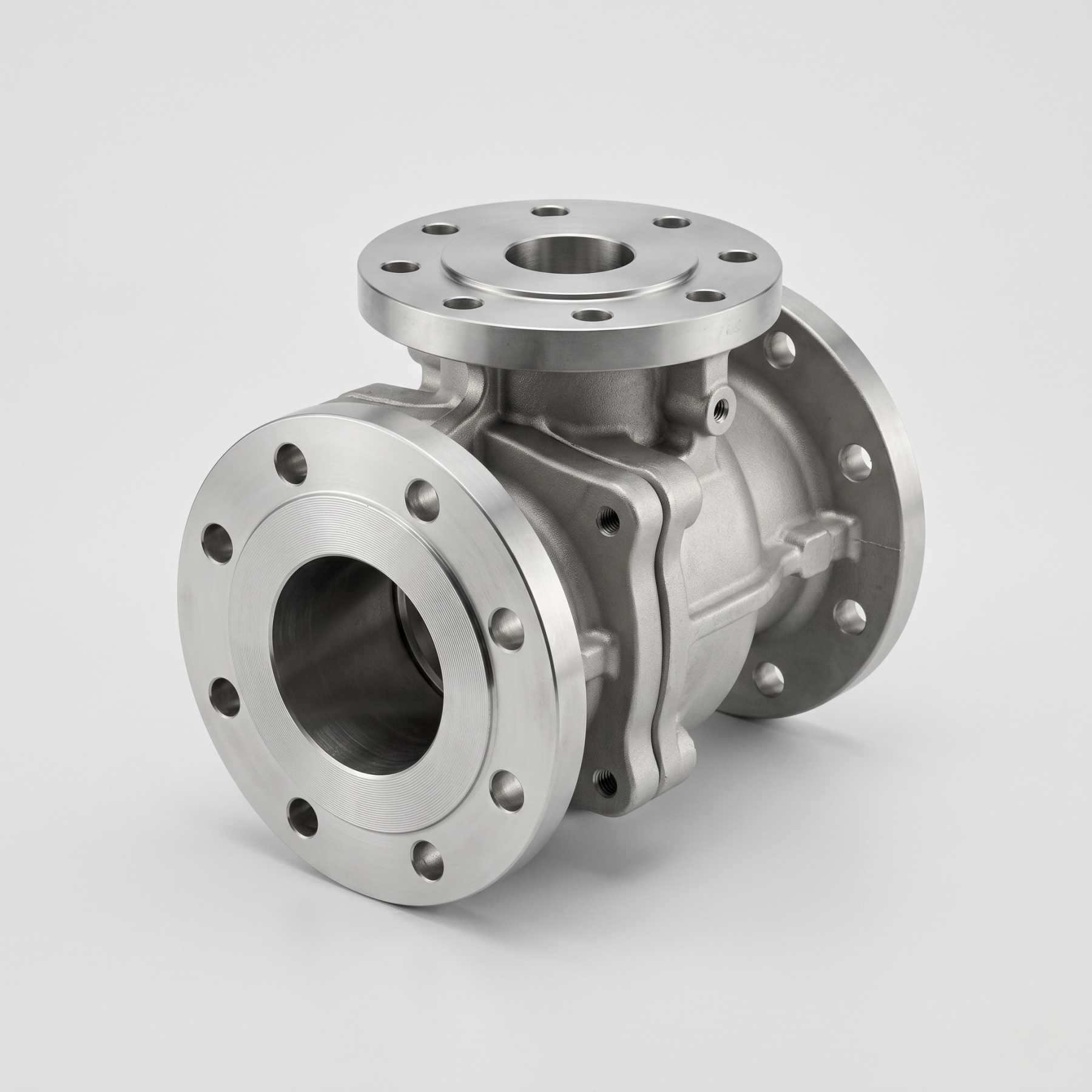

valve-body-investment-casting
Valve Bodies
Custom valve body castings for fluid control systems requiring pressure-bearing strength, dimensional consistency, and precision-machined sealing and connection areas.

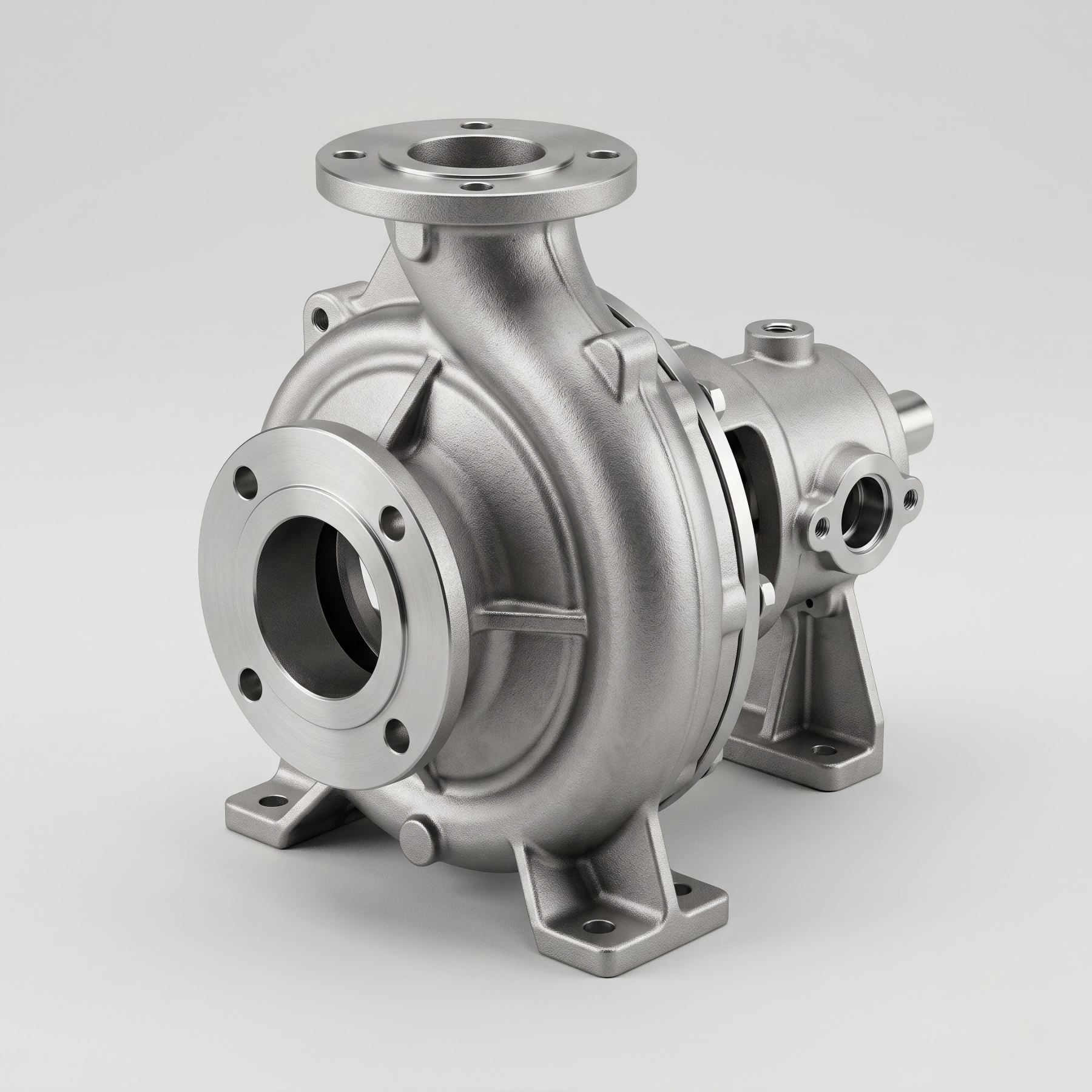

Custom pump housing casting for industrial fluid handling systems

Pump Housings

Custom pump housing components for fluid transfer systems, designed for structural stability, internal flow accuracy, and reliable assembly performance.

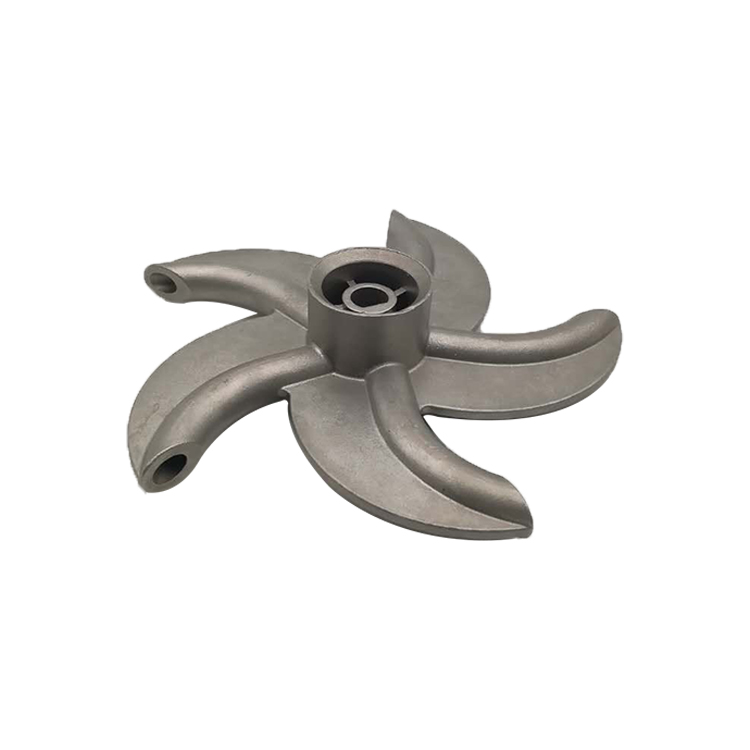

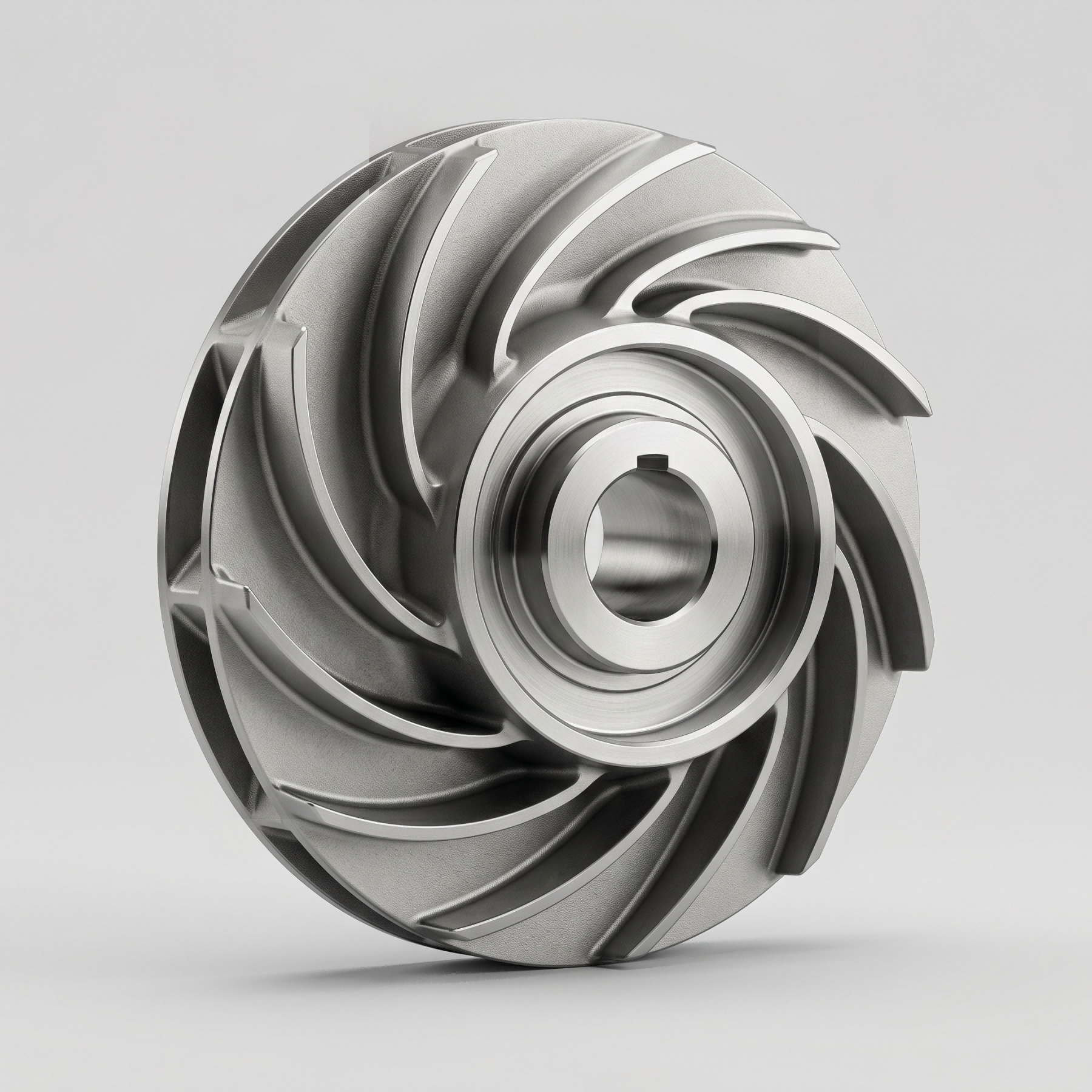

Precision cast impeller for industrial pump and fluid transfer systems

Impellers

Investment cast impeller components for pump and diffuser applications, suitable for complex curved geometry and repeatable production consistency.

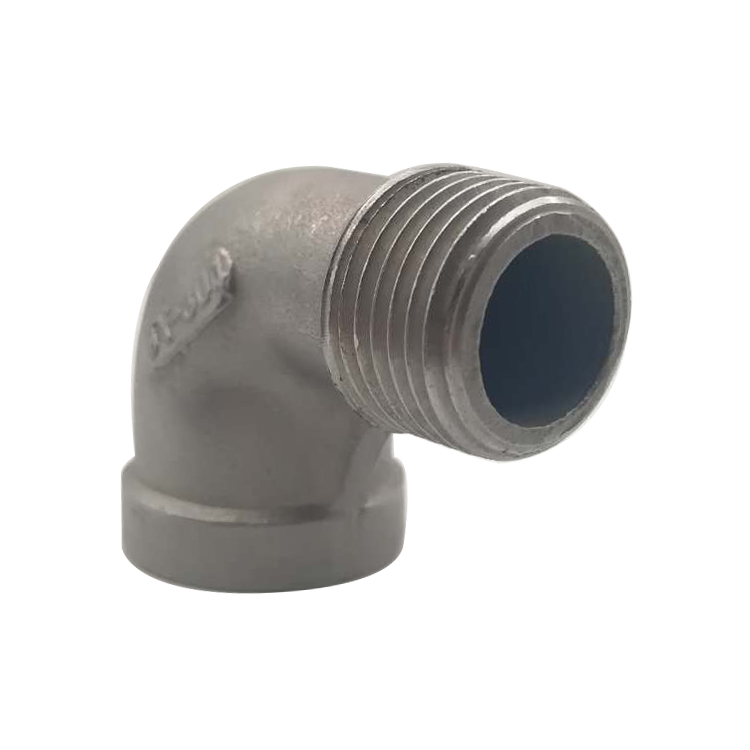

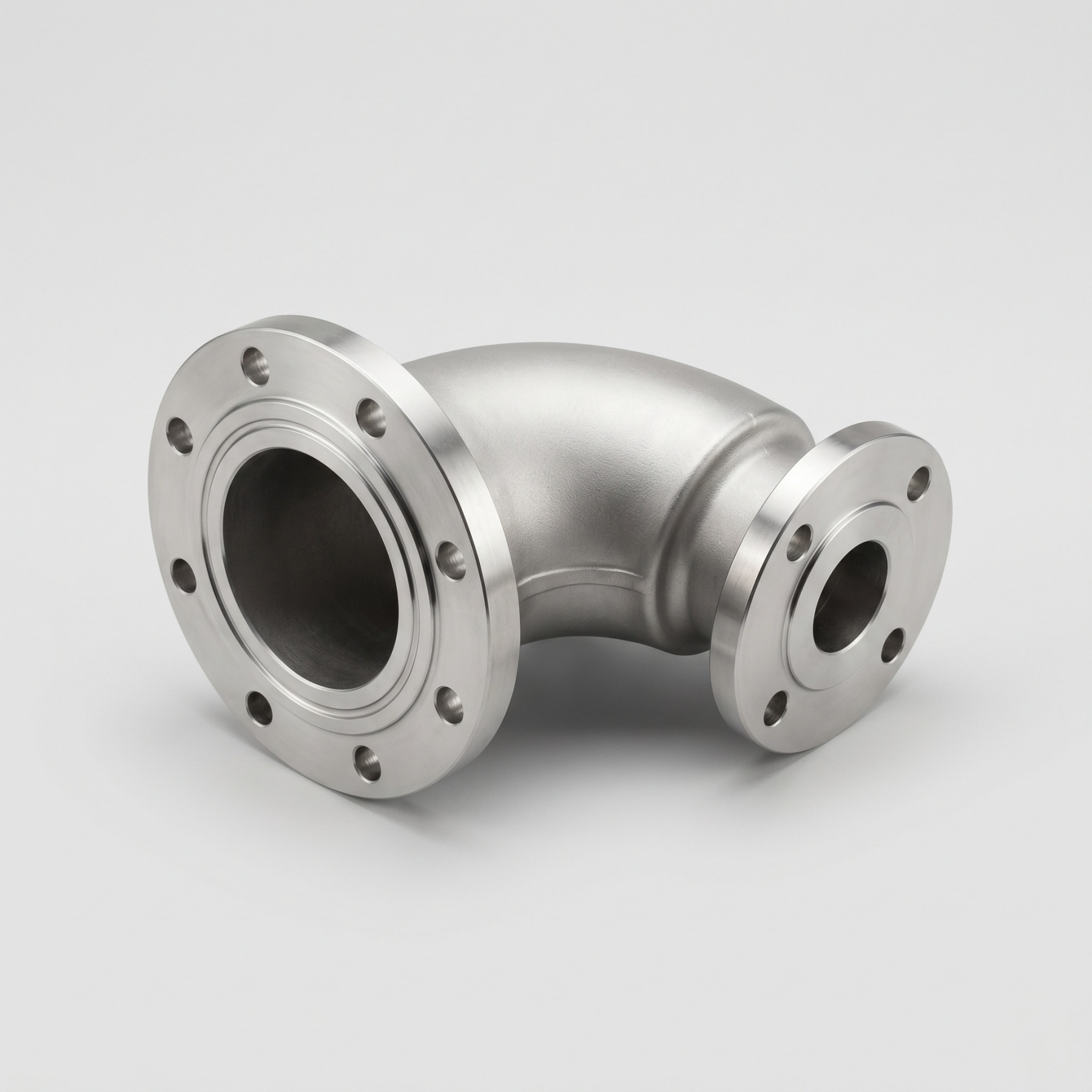

Custom cast reducing elbow for pump and piping systems
Reducing Elbows
Cast reducing elbow parts for pump and piping systems, supporting controlled flow transitions, connection accuracy, and stable wall structure.

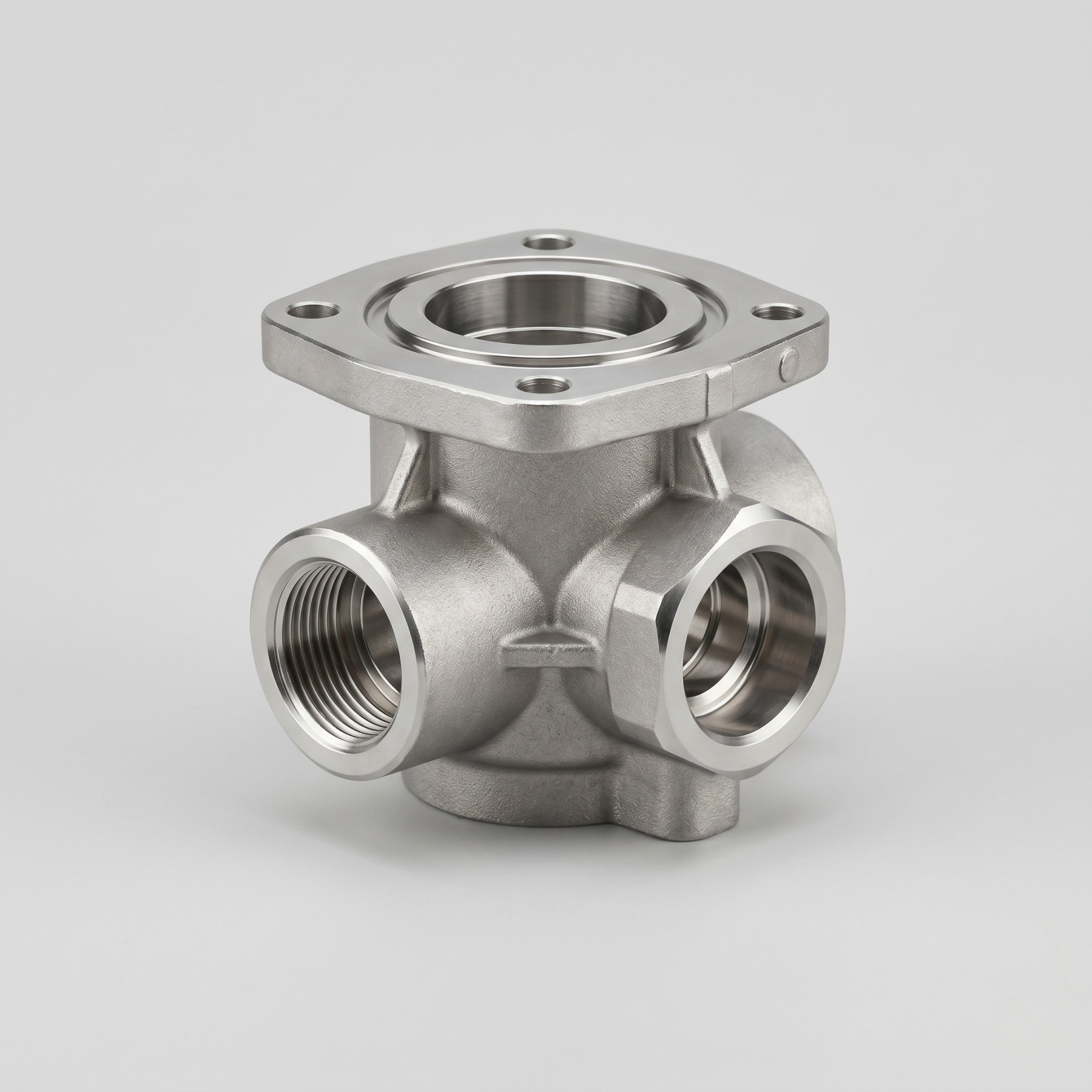

Cast connector seat component for valve and flow control assemblies

Connector Seats & Fittings

Custom connector seats and fitting components for valve and flow-control assemblies requiring dimensional stability and secure installation interfaces.

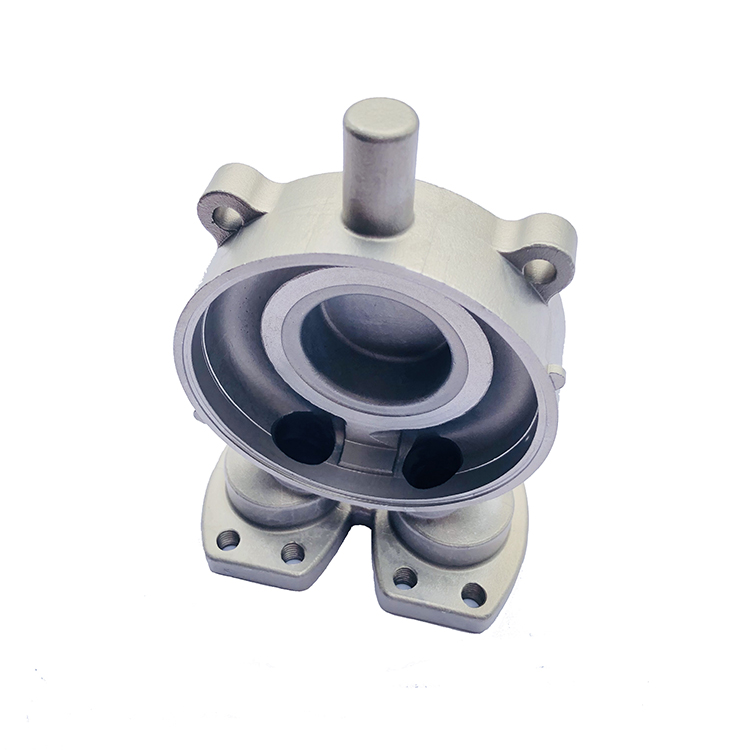

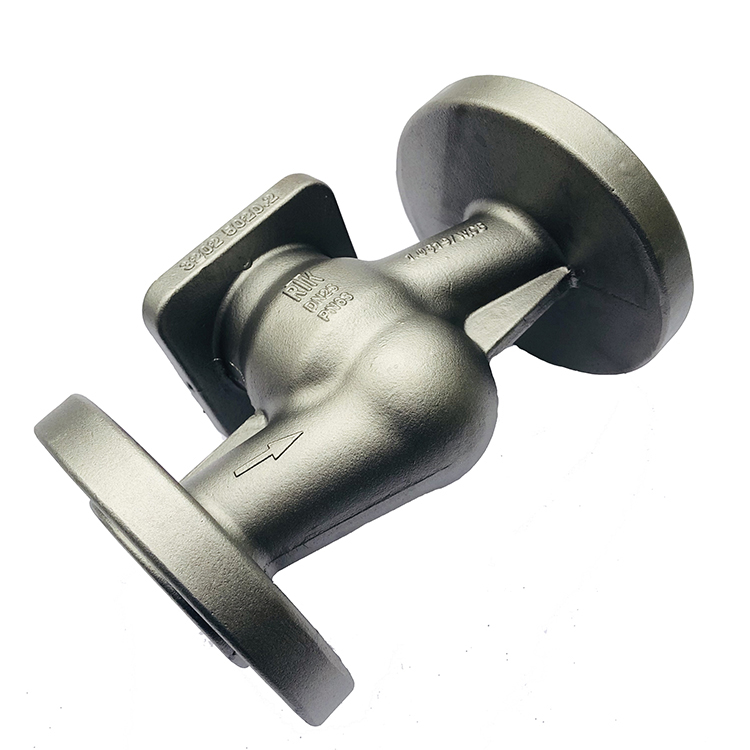

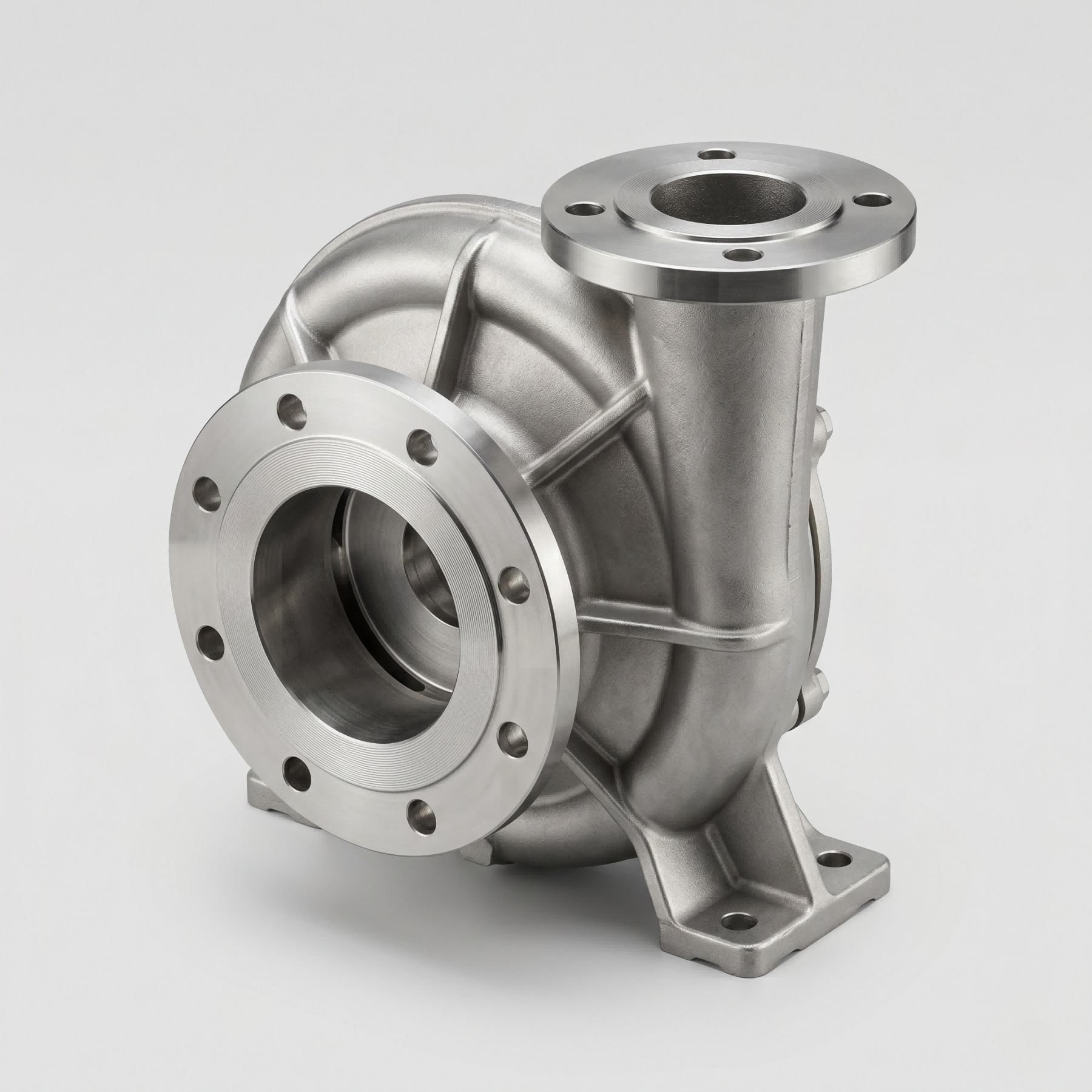

pump-body-casting-component

Pump Body Components

Precision cast pump body parts with support for machining, sealing performance, and material selection based on service environment.

Why Investment Casting Works Well for Pump & Valve Components


Pump and valve components often require complex flow geometry, pressure-bearing structures, and machined sealing or assembly surfaces. Investment casting helps reduce unnecessary machining while maintaining good shape consistency for non-standard OEM parts.


Investment casting forms the complex body shape, while CNC machining controls sealing faces, bores, threads, and assembly datums.

1. Complex Internal Flow Geometry

Suitable for valve bodies, pump housings, and other components with curved or enclosed flow paths.
2. Reduced Machining Allowance

Near-net-shape casting helps reduce material waste and unnecessary machining time.
3. Better Consistency for Repeated Production

A stable casting process helps improve repeatability for medium and large batch production.
4. Easy Integration with CNC Machining

Critical surfaces such as sealing faces, threads, bores, and assembly datums can be machined after casting.

Recommended Materials for Pump & Valve Applications

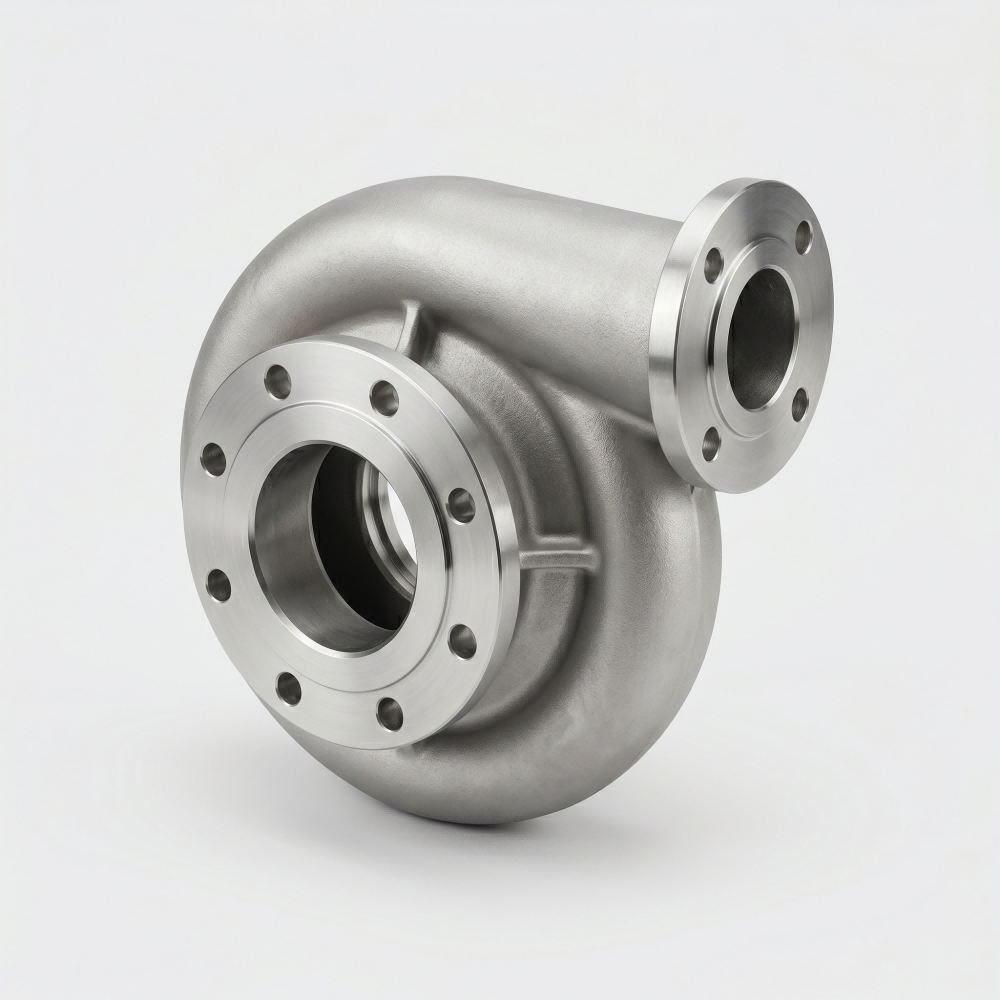

Stainless steel pump housing casting for pump and valve applications
Stainless Steel


Widely used for pump and valve parts that require corrosion resistance, clean surface quality, and stable machining performance.

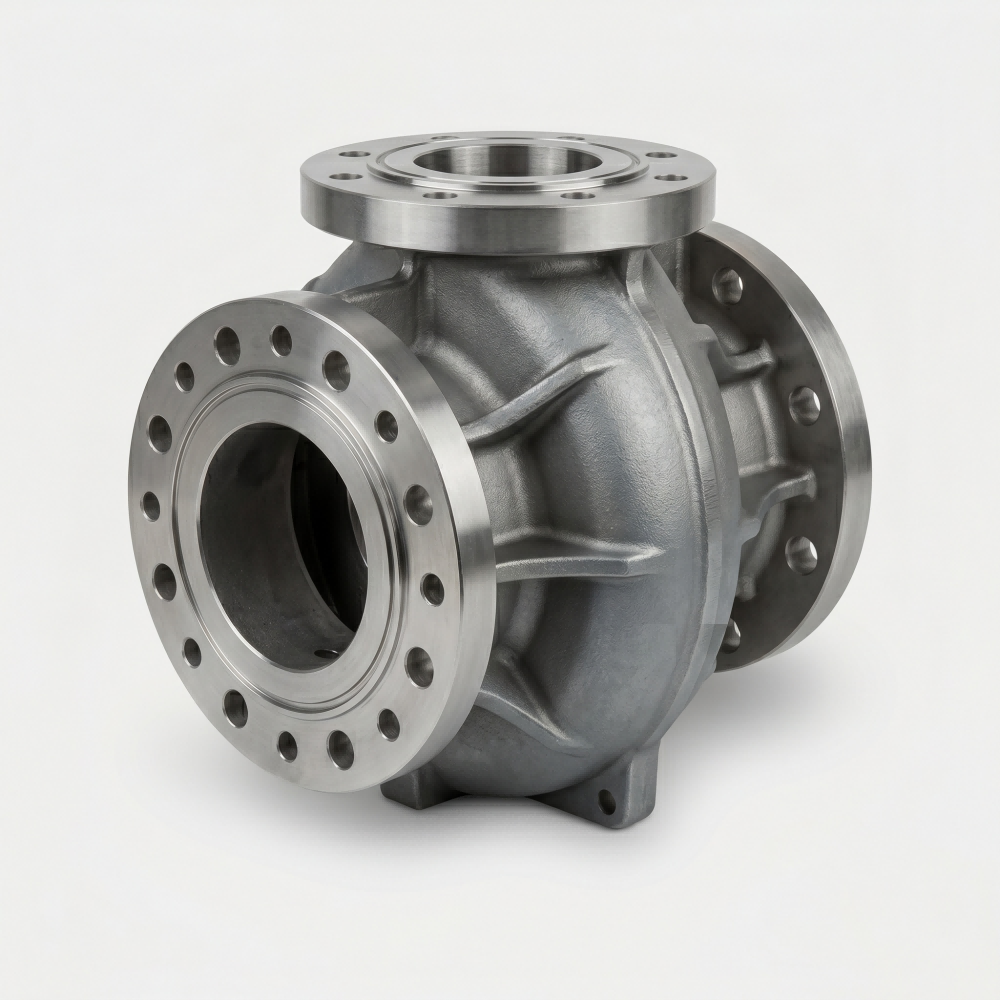

Duplex stainless steel casting for corrosive pump and valve applications

Duplex Stainless Steel


Suitable for more demanding corrosive environments such as marine, chemical, or chloride-containing service conditions.

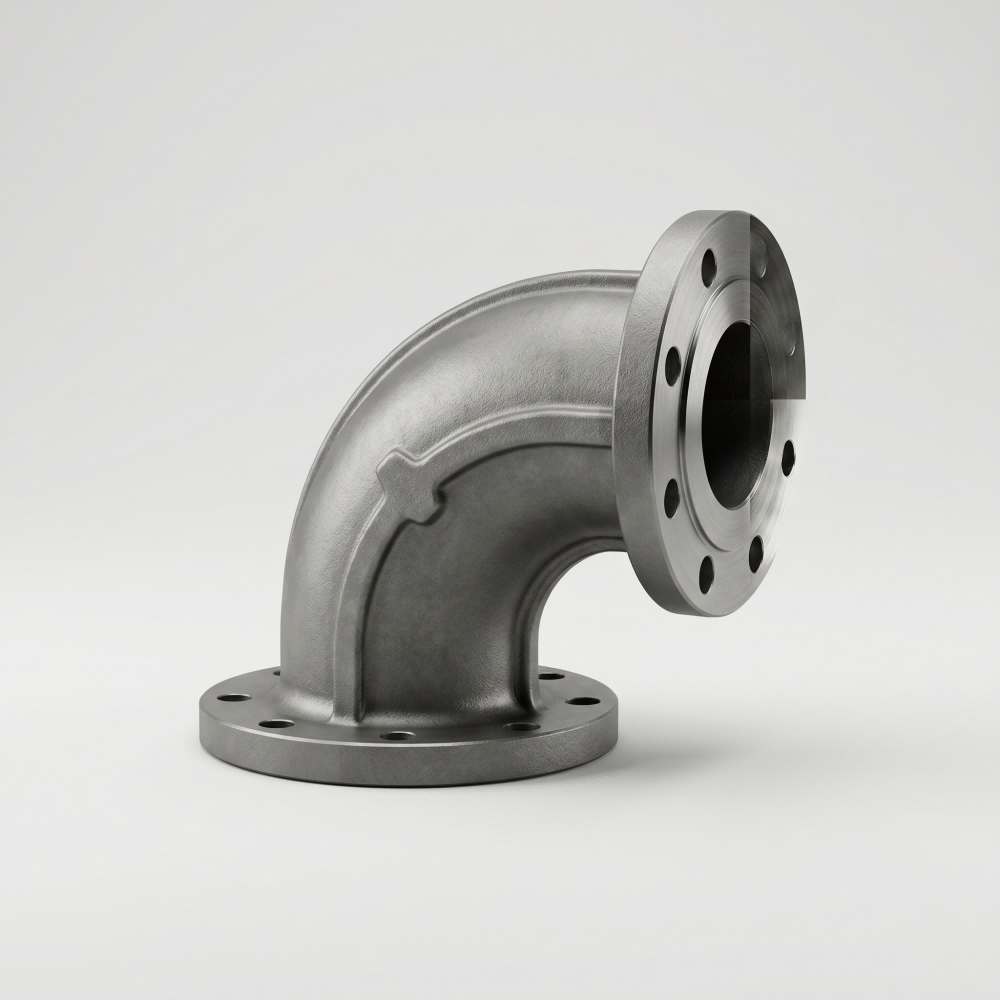

Carbon steel cast elbow component for industrial pump and piping systems
Carbon Steel


A practical choice for structural or general fluid system components where strength and cost efficiency are both important.

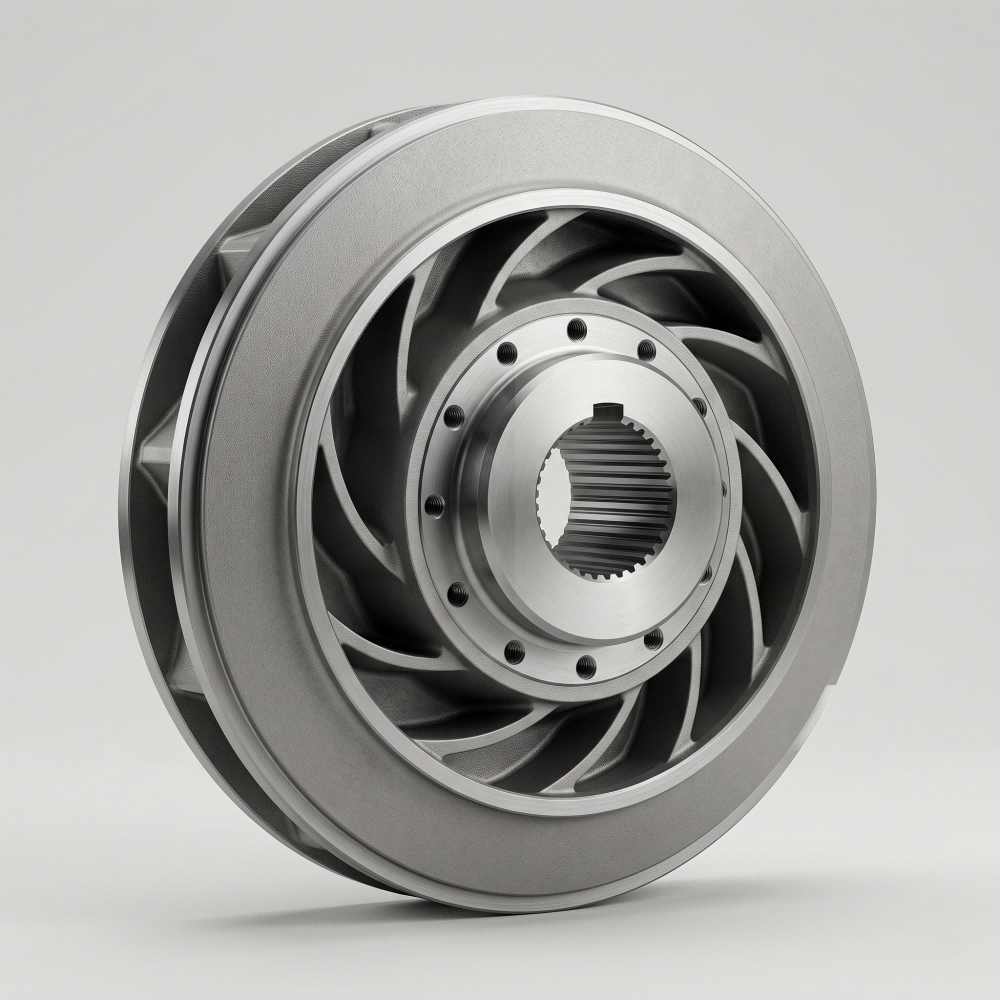

Alloy steel impeller casting for high-strength and wear-resistant pump applications

Alloy Steel

Used for pump and valve components requiring improved strength, toughness, or wear resistance under more demanding service conditions.

Service RequirementCommon Material OptionsKey Concern
General fluid handlingCarbon steel / Stainless steelStrength, cost, machining
Corrosive liquid serviceStainless steel / Duplex stainless steelCorrosion resistance
Chloride or marine environmentDuplex stainless steelPitting and chloride resistance
Wear or high-load conditionsAlloy steelStrength, toughness, wear resistance


Manufacturing Capabilities Behind Our Pump & Valve Solutions


Our pump and valve solutions are supported by an integrated workflow that combines investment casting, tooling support, CNC machining, heat treatment, and surface finishing.

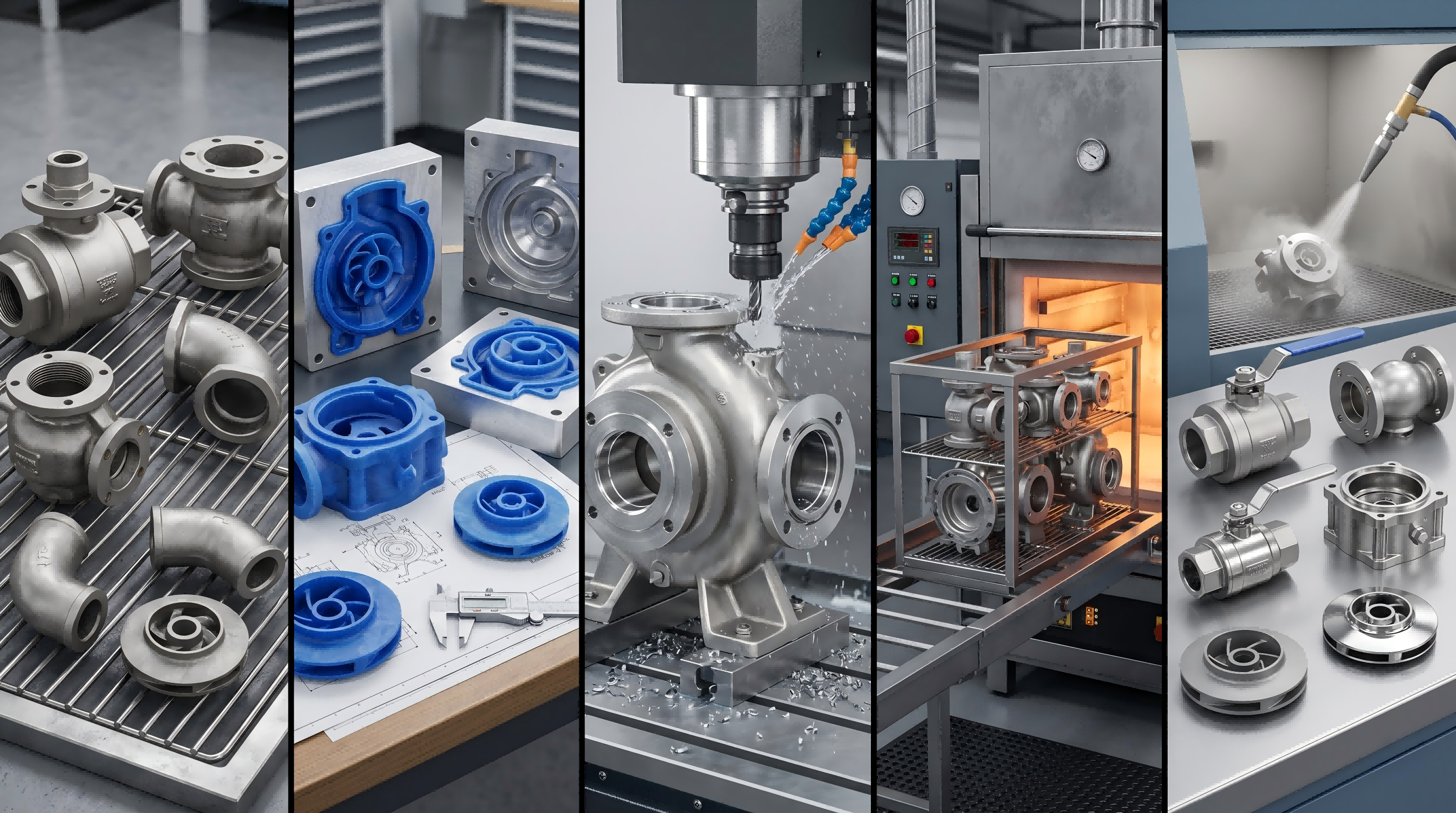

Investment casting CNC machining and finishing for pump and valve components
Investment Casting
For complex valve and pump geometries, near-net-shape production, and repeatable casting quality.
Tooling & 3D Printing
For sample validation, structure review, and tooling preparation before mass production.

CNC Machining

For sealing faces, bores, threads, mounting surfaces, and assembly-critical dimensions.

Heat Treatment

For pressure resistance, strength adjustment, hardness control, and service-life improvement.
Surface Finishing
For corrosion resistance, appearance improvement, and end-use functional treatment.

Quality and Engineering Focus for Pump & Valve Components


For pump and valve projects, quality control is not only about casting shape. It also involves sealing-related machining, pressure-bearing structure, dimensional repeatability, material suitability, and surface protection based on the final service environment.

Sealing Surfaces & Machined Interfaces
Critical sealing faces, mounting surfaces, threads, and connection areas are reviewed and machined according to drawing requirements.
Bore Accuracy, Flatness & Concentricity
Key bores, flat surfaces, and assembly datums can be inspected to support stable fitting and reliable installation.
Internal Flow Geometry Consistency
Flow-related structures are controlled during casting to reduce unnecessary variation in pump and valve performance areas.
Material Suitability for Service Conditions
Material selection can be reviewed based on corrosion resistance, strength, wear resistance, and operating environment requirements.
Dimensional & Material Verification
Inspection support can include dimensional checks, chemical composition verification, and basic quality documentation when required.
Surface Finishing & Anti-Rust Protection
Surface finishing, cleaning, passivation, anti-rust oil, or protective packaging can be selected based on shipping and end-use requirements.

Representative Pump & Valve Component Types


Below are representative pump and valve component types we commonly support. Final design, material, dimensional tolerance, machining scope, and surface finishing requirements are evaluated based on customer drawings and service conditions.

Valve Bodies, Covers & Related Components
Investment cast valve bodies, covers and related components for pump and valve assemblies
Application:
Used in control valves, ball valves, gate valves, check valves, and fluid handling assemblies.

Requirement:
Pressure-bearing structure, machined sealing faces, threaded or flanged connections, and dimensional consistency.

Focus:
Casting integrity, sealing-face machining, bore and thread accuracy, and reliable assembly performance.

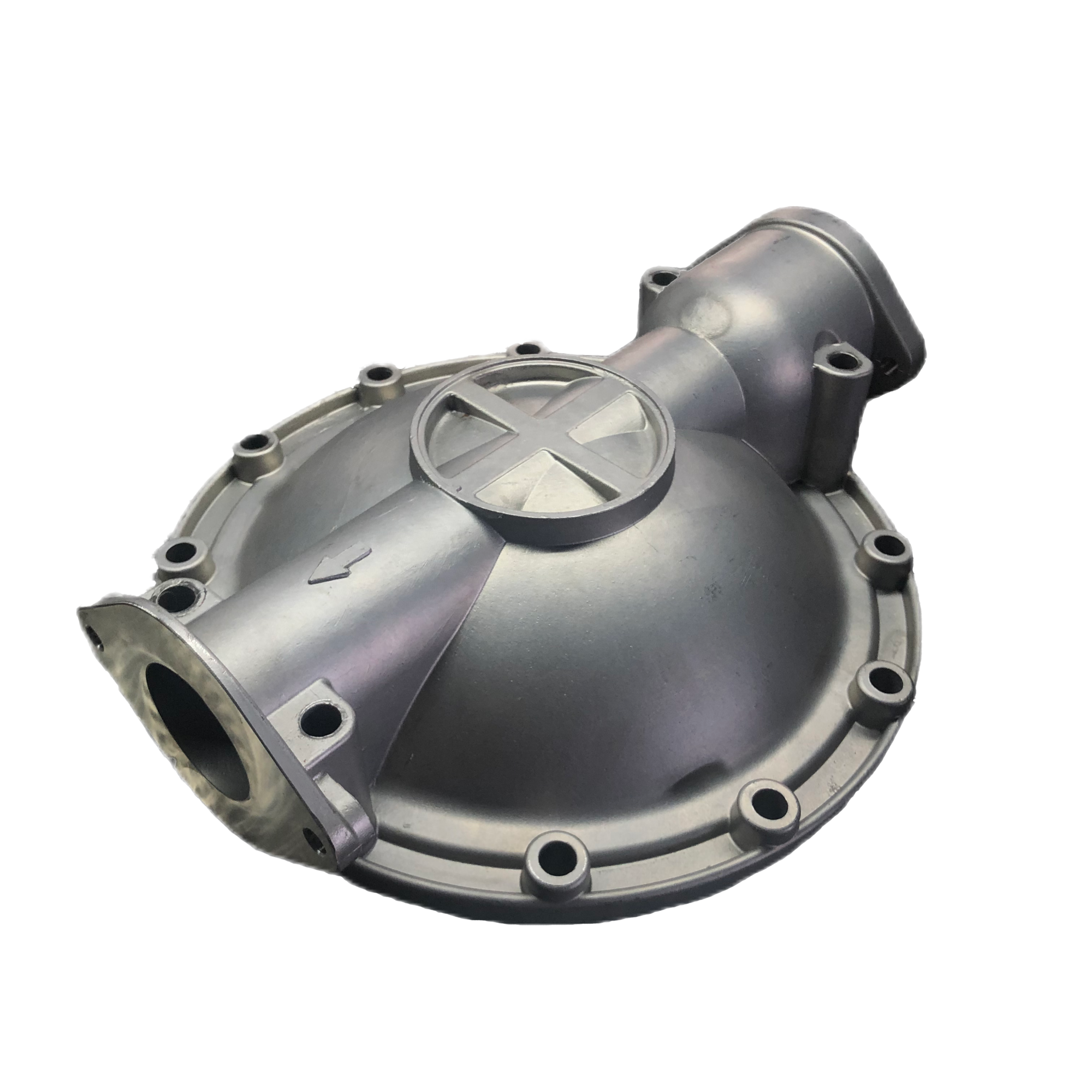

Pump Housings, Casings & Support Parts
Custom investment cast pump housings, casings and support parts with machined mounting surfaces
Application:
Used in industrial pumps, circulation systems, transfer equipment, and fluid handling assemblies.

Requirement:
Stable body structure, machined mounting surfaces, connection accuracy, and repeatable batch quality.

Focus:
Wall thickness control, flatness, hole position accuracy, and post-casting machining stability.
Impellers, Elbows & Connector Parts
Investment cast impellers, elbows and connector parts for fluid control and pump valve systems
Application:
Used in pump flow systems, piping connections, valve assemblies, and process fluid equipment.

Requirement:
Flow-related geometry, corrosion resistance, sealing or joining interfaces, and dimensional reliability.

Focus:
Material selection, casting soundness, connection accuracy, and machining support for key interfaces.

Frequently Asked Questions About Pump & Valve Casting Components


Q1. What materials are commonly used for pump and valve casting parts?


Stainless steel is widely used for corrosion resistance and clean surface requirements, while carbon steel and alloy steel are selected when strength, cost efficiency, or wear performance are important. Duplex stainless steel can be considered for more demanding corrosive environments.
Q2. Is investment casting suitable for valve bodies and pump housings with complex geometry?


Yes. Investment casting is well suited for components with complex shapes, internal flow-related structure, and non-standard geometry, especially when stable repeatability and reduced machining allowance are important.
Q3. Do pump and valve castings still need CNC machining?


In many cases, yes. Critical areas such as sealing faces, threads, bores, datum surfaces, and assembly interfaces often require secondary machining after casting.
Q4. Can you support prototype samples and batch production?


Yes. We support sample development, process verification, and repeatable production for different project stages.
Q5. Can you recommend a suitable material and process based on our drawing?


Yes. We can review drawings, service conditions, and key requirements to suggest a suitable material and manufacturing route.


Need Support for a Custom Pump or Valve Casting Project?

Send us your drawing, sample, material requirement, or application details, and our team will help evaluate a suitable casting and machining solution for your pump or valve component project.
Engineering support for custom pump and valve casting projects
