Custom Investment Casting & CNC Machined Part Examples

Explore representative steel components manufactured to customer drawings for pump and valve systems, industrial machinery, transportation, petrochemical and marine equipment, power engineering and instrumentation, and hardware and architectural applications.

Upload Your Drawing

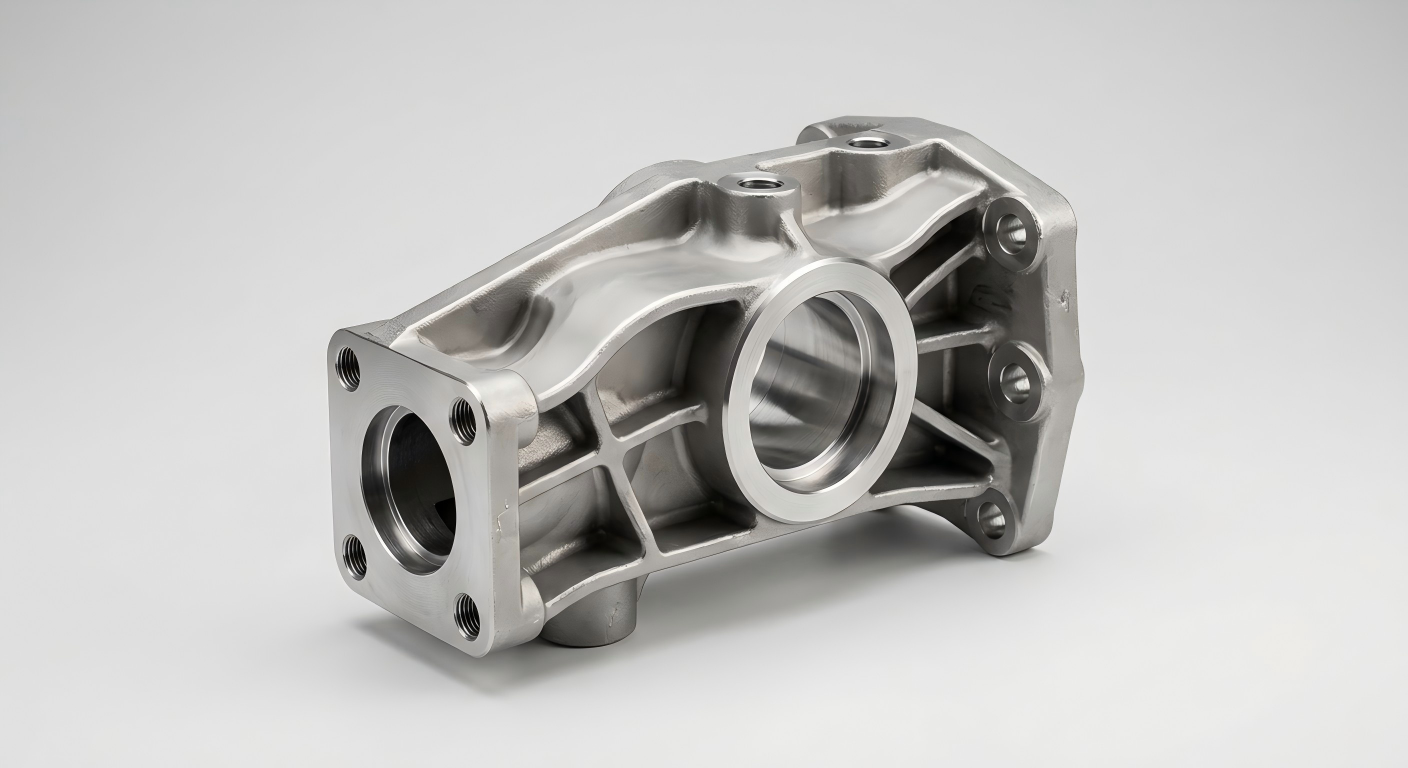

Complex custom steel investment casting part with CNC machined holes and mounting features

Explore Parts by Application

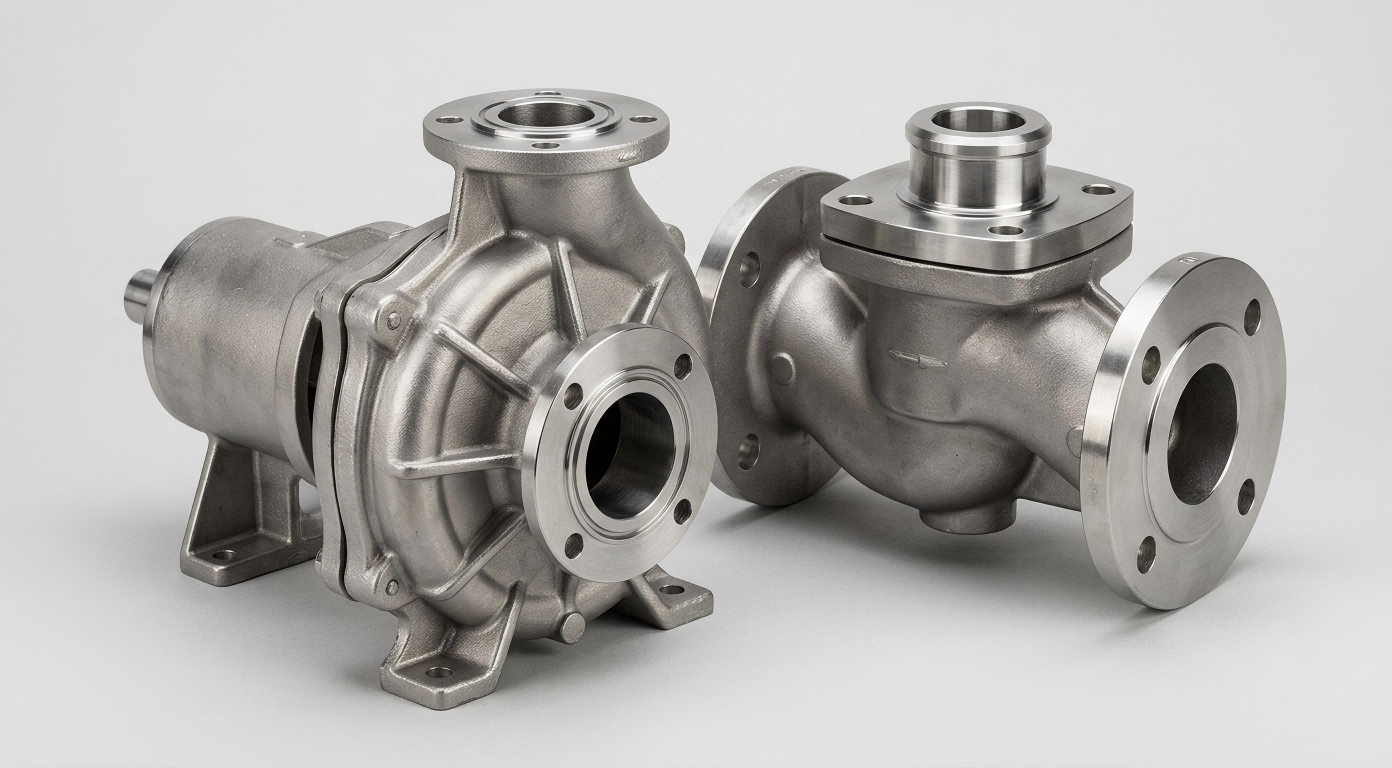

Steel investment cast pump housing and valve body with machined flanges and flow passages

Pump & Valve Components

Pump bodies, valve bodies, impellers, housings, flow-control components, and sealing-related parts.

Explore Part Examples

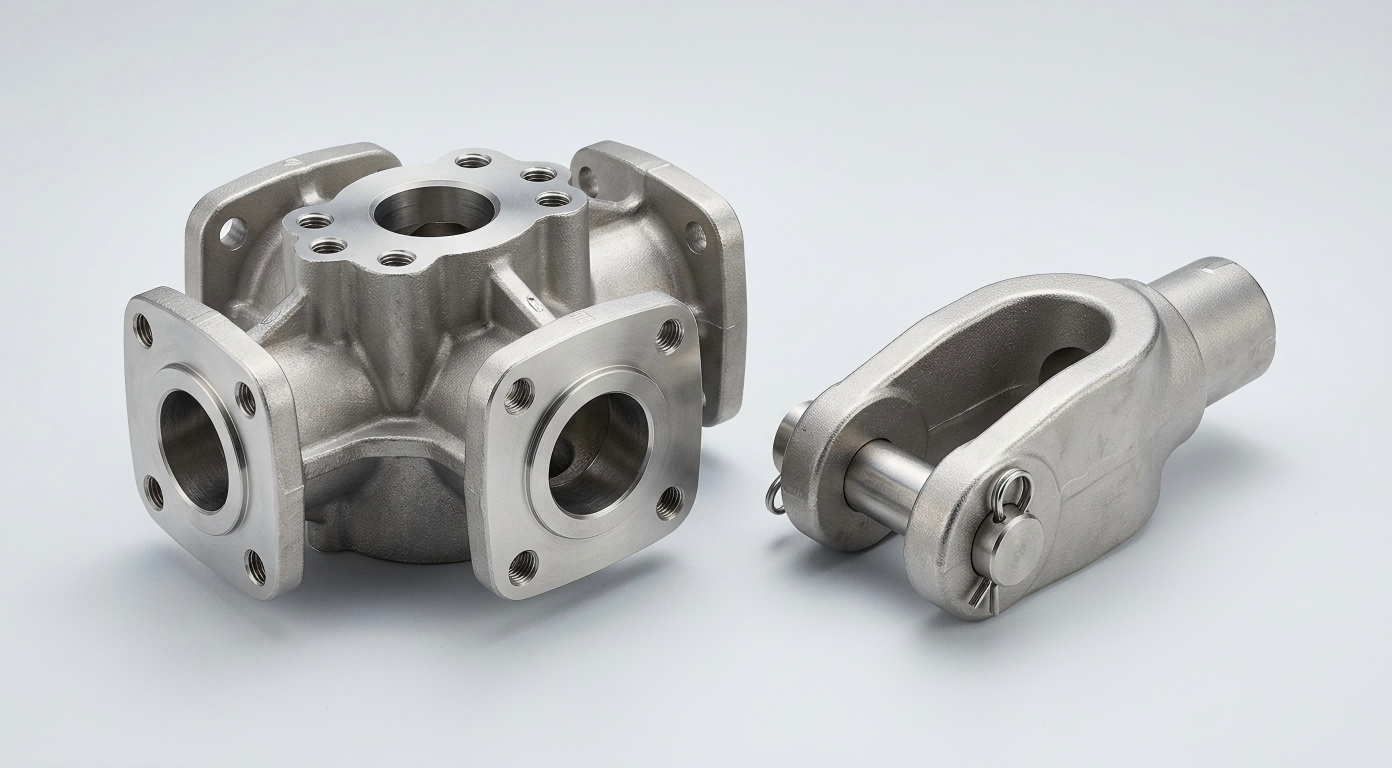

Corrosion-resistant steel manifold housing and marine connector produced by investment casting

Petrochemical & Marine Components

Corrosion-resistant housings, connectors, structural parts, covers, and components for demanding environments.

Explore Part Examples

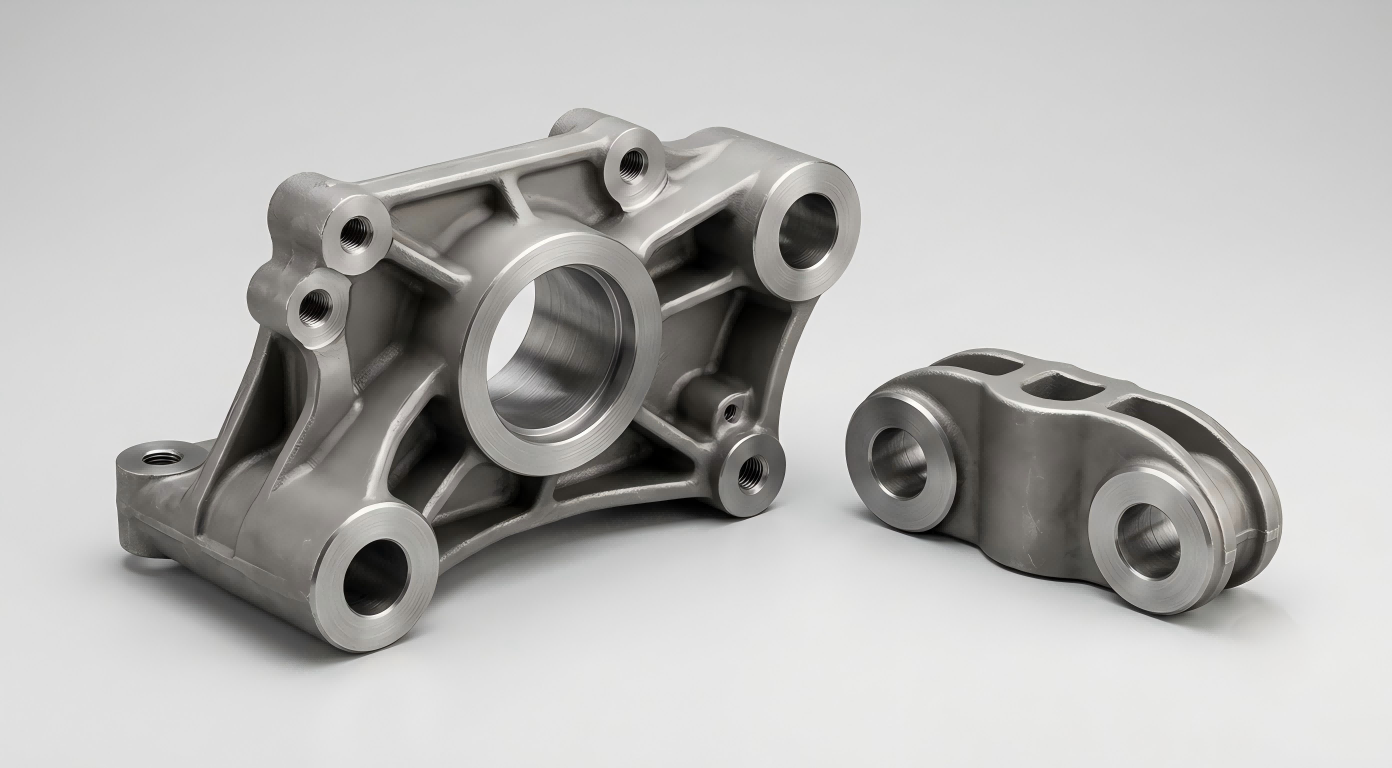

Investment cast steel machinery bracket and heavy-duty linkage with CNC machined features

Industrial Machinery Components

Brackets, supports, connectors, wear parts, transmission components, and non-standard machinery parts.

Explore Part Examples

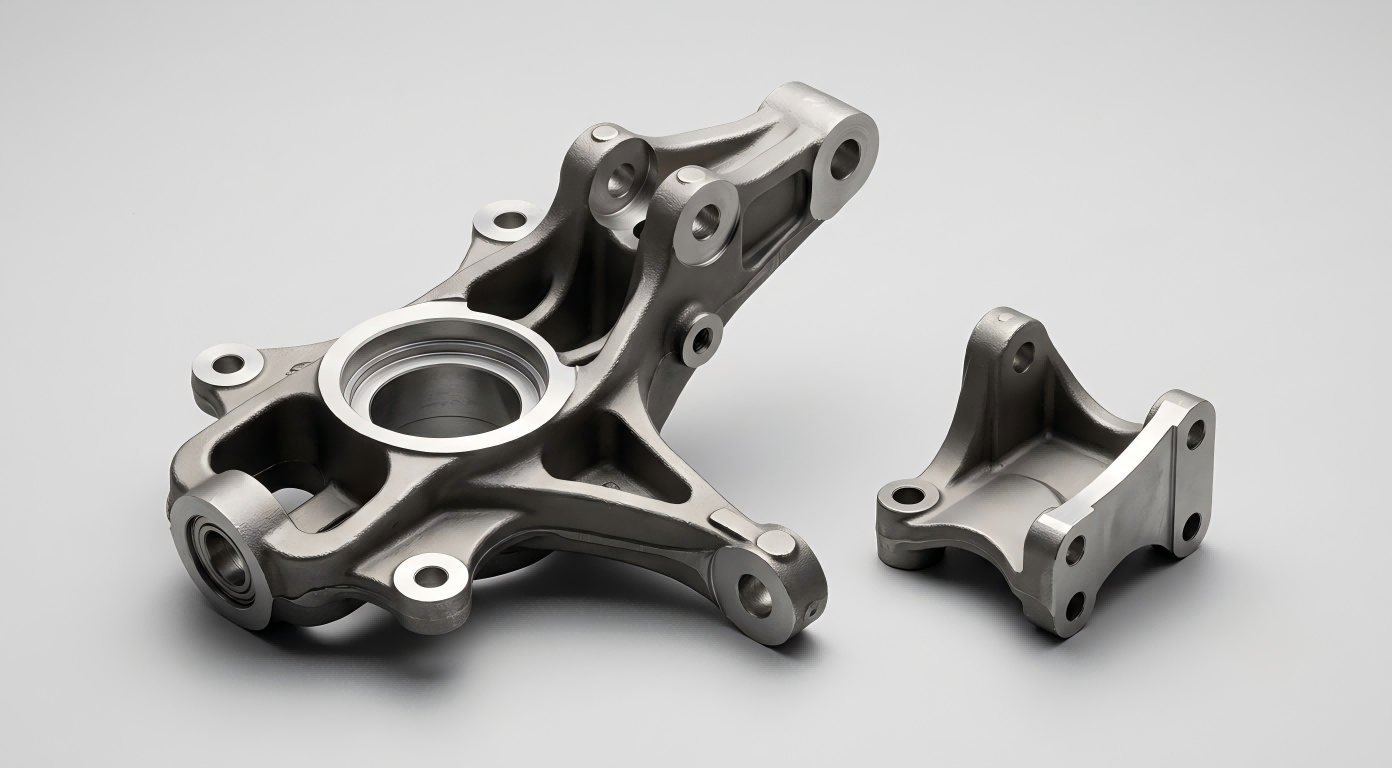

Custom steel transportation bracket and wheel carrier with precision machined mounting points

Transportation Components

Structural, connecting, mounting, and functional components for vehicle and transportation equipment.

Explore Part Examples

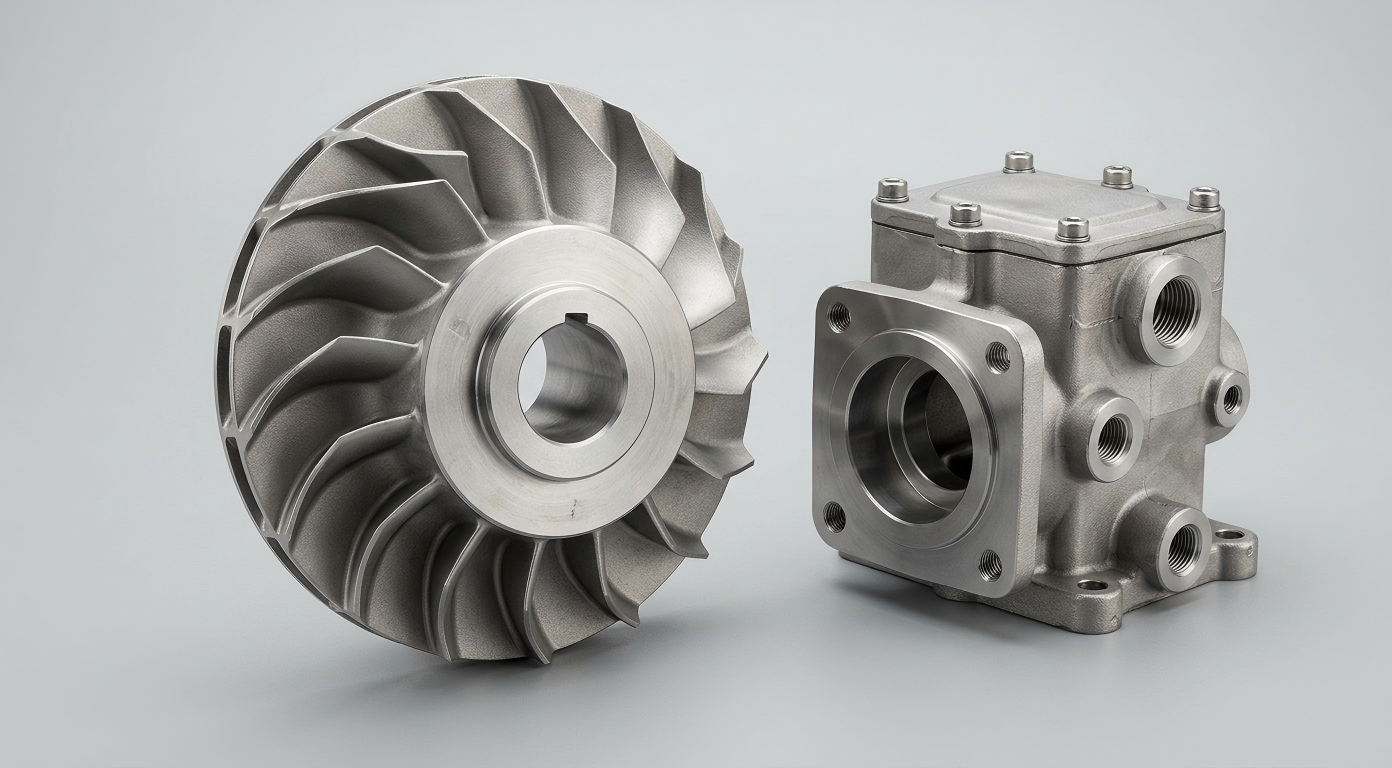

Steel turbine impeller and precision instrument housing manufactured by investment casting

Power & Instrumentation Components

Impellers, turbine-related parts, instrument housings, precision fittings, and engineered components.

Explore Part Examples

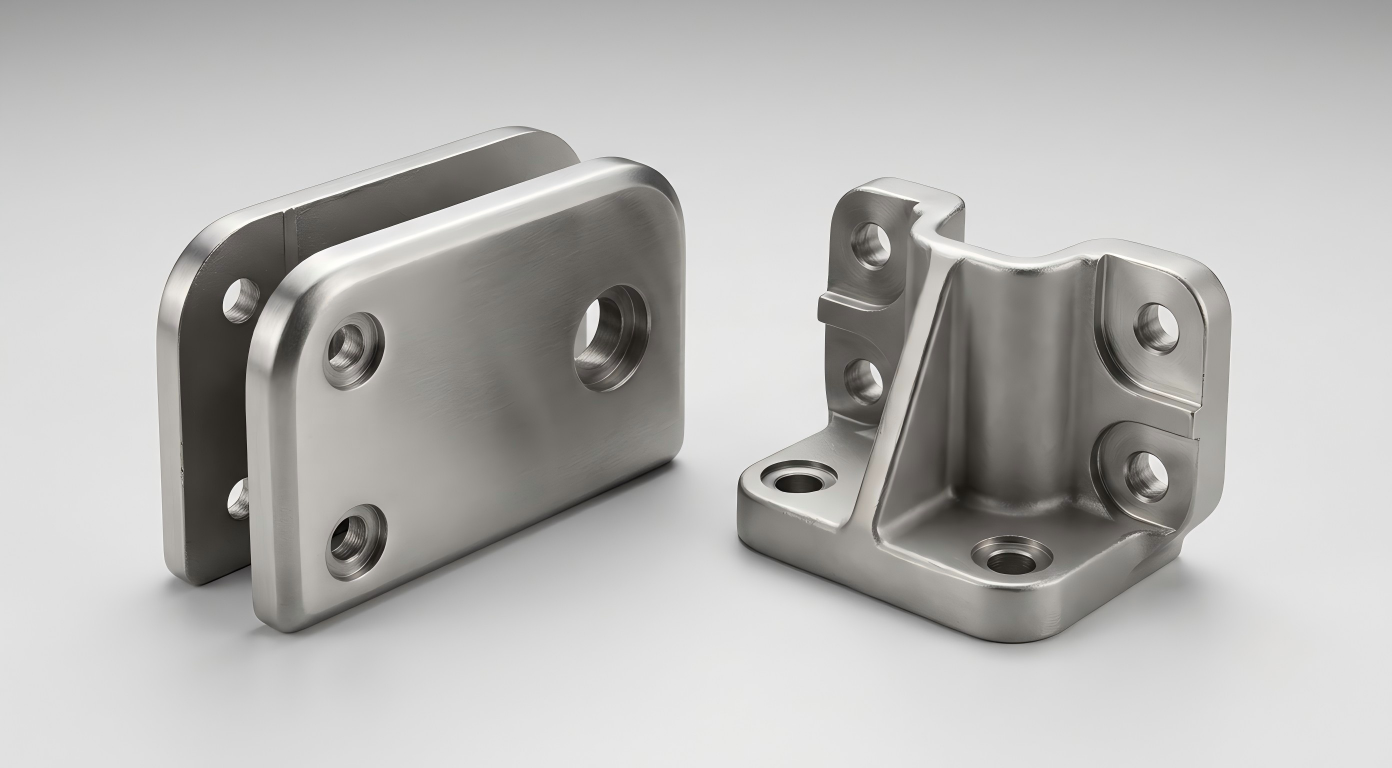

Stainless steel architectural glass clamp and custom mounting bracket made by investment casting

Hardware & Architectural Components

Custom brackets, clamps, connectors, mounting hardware, structural fittings, and architectural components.

Explore Part Examples

Featured Custom Part Examples

Browse representative steel components manufactured from customer drawings through investment casting, CNC machining, heat treatment, and surface finishing. The products shown are manufacturing examples rather than standard off-the-shelf parts.

1
2
3
4
»

Manufacturing Support for Custom Cast & Machined Parts

From precision investment casting and CNC machining to heat treatment, surface finishing, inspection, and delivery, we provide integrated manufacturing support for custom steel components.

Investment Casting

Silica sol lost-wax casting for complex steel parts and non-standard geometries.

CNC Machining

Precision machining of threads, bores, sealing surfaces, mounting faces, and assembly features.

Heat Treatment

Heat treatment selected according to material grade and required mechanical properties.

Surface Finishing

Polishing, black oxide, powder coating, electroplating, electrophoresis, and other finishing options.

Quality Inspection

Material verification, dimensional inspection, hardness testing, and customized inspection reports.

Packing & Delivery

Protective packing and flexible delivery options arranged according to part size, quantity, weight, and destination.

Upload Your Drawing

Steel Materials Available for Custom Parts

We manufacture custom components in a range of steel grades selected according to strength, corrosion resistance, temperature, wear, and application requirements.

Stainless Steel

Carbon Steel

Alloy Steel

Duplex Stainless Steel

Heat-Resistant Steel

Wear-Resistant Steel

Need a Custom Part Manufactured?

Send us your drawings, material requirements, estimated quantity, and application details. Our engineering team will evaluate the investment casting and machining feasibility for your project.
