Views: 0 Author: Site Editor Publish Time: 2026-04-26 Origin: Site
A successful investment casting project does not begin only when metal is poured. In many cases, casting quality, tooling cost, machining difficulty, and production stability are already influenced by the part design before tooling starts.
Product designers often focus first on assembly, strength, appearance, and functional performance. These factors are important, but a casting part also needs to be reviewed from a manufacturing perspective. If the design is not suitable for the casting process, the project may face issues such as shrinkage defects, deformation, difficult wax pattern removal, higher tooling cost, additional machining, or unstable production quality.
At Zeren, we review drawings, 3D models, samples, and application requirements before starting tooling. Our goal is not only to produce the part according to the drawing, but also to help customers evaluate whether the design is practical for investment casting, CNC machining, and surface finishing.
This article explains several important design considerations for custom investment cast parts, including wall thickness, radii, holes, flat surfaces, machining allowance, and wax pattern tooling.

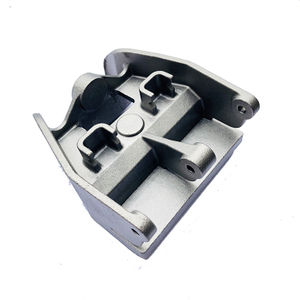

Figure 1. Design review helps identify casting risks before tooling starts.
Before starting investment casting tooling, it is helpful to review the following points:
Design Area | What to Check |
|---|---|
Wall thickness | Avoid sudden changes between thick and thin sections |
Radii and transitions | Use smooth internal fillets instead of sharp corners |
Holes and cavities | Review deep blind holes, small holes, and internal passages |
Flat surfaces | Check whether large flat areas may need ribs or machining |
Machining allowance | Define which surfaces need CNC machining after casting |
Tooling feasibility | Confirm wax pattern removal, gates, venting, and shrinkage allowance |
Investment casting, also known as lost wax casting, is well suited for complex metal components with relatively high dimensional accuracy and good surface finish. It is widely used for stainless steel, carbon steel, alloy steel, duplex stainless steel, and other engineering materials.
However, investment casting is still a metal forming process. The part must go through wax pattern production, shell building, dewaxing, pouring, solidification, shell removal, cutting, grinding, heat treatment, machining, and surface finishing. Each step can be affected by the original part geometry.
A good casting design should consider three questions:
Can the wax pattern be produced and removed reliably?
Can molten metal fill the mold and solidify with acceptable quality?
Can the required dimensions be achieved through casting and machining in a cost-effective way?
When these questions are reviewed early, many potential problems can be solved before tooling is made.

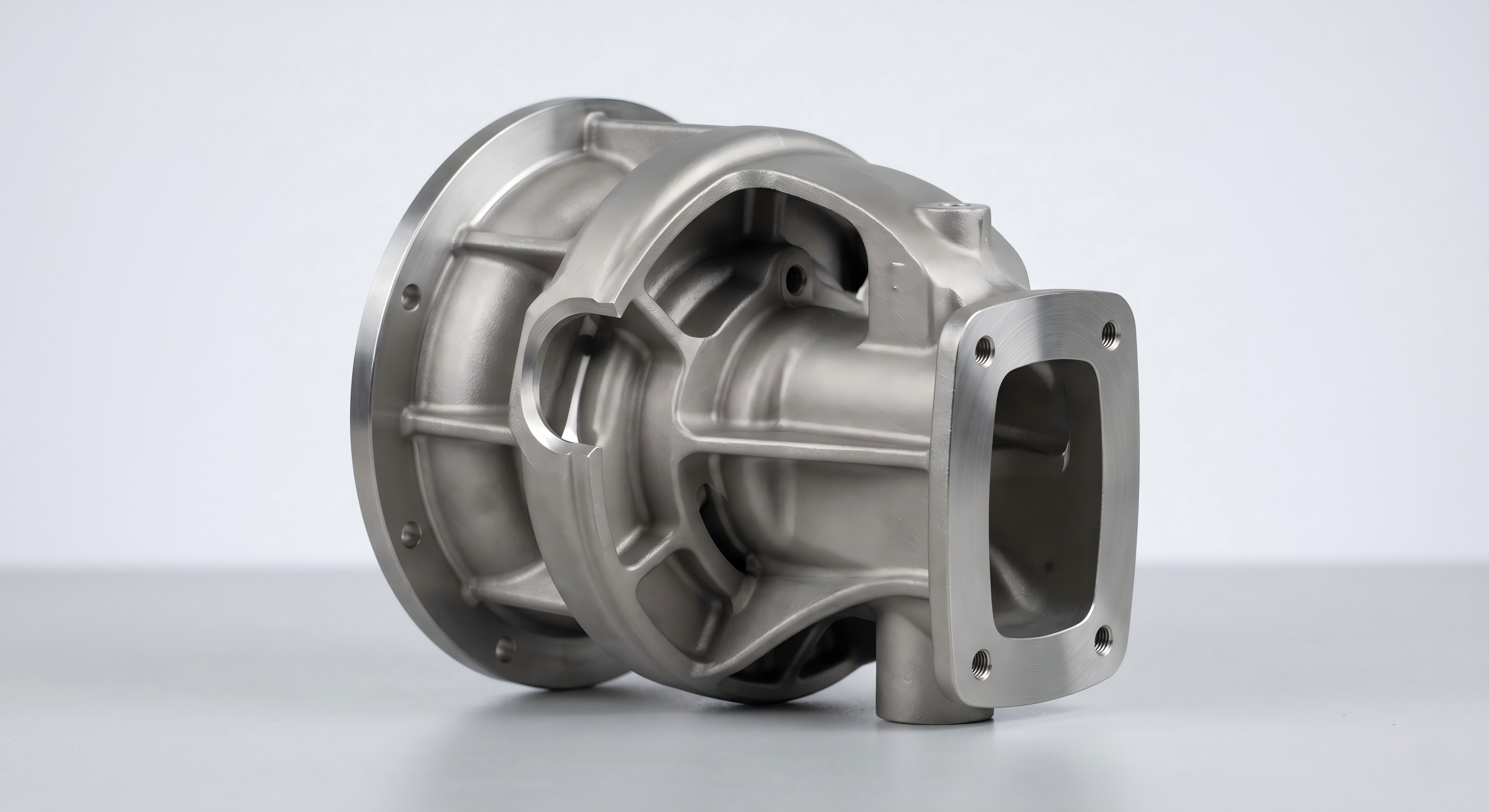

Figure 2. Uniform wall thickness and smooth transitions improve castability.
Uniform wall thickness is one of the most important principles in casting design.
When a casting has sudden changes between thick and thin sections, the thick areas cool more slowly than the thin areas. This can create hot spots, shrinkage risk, internal defects, or stress concentration. For this reason, designers should avoid heavy isolated sections whenever possible.
Instead of using a thick solid block, it is often better to use ribs, hollow structures, or gradual transitions to maintain strength while improving castability.
For investment casting parts, local thin walls may be possible depending on material, part size, structure, and application requirements. However, the entire part should avoid extreme wall thickness changes. A part with stable and reasonable wall thickness is usually easier to cast, easier to control, and more suitable for repeat production.
Design recommendation:
Avoid sudden wall thickness changes. Use gradual transitions, ribs, or structural optimization to reduce heavy sections and improve solidification behavior.
Sharp corners are common causes of casting problems.
When two walls meet at a sharp angle, stress concentration can occur during solidification and cooling. Sharp internal corners may also restrict metal flow or create areas where defects are more likely to form.
For most investment cast parts, internal corners and wall intersections should use proper radii or angled transitions. A general design approach is to use a radius related to the wall thickness. In many practical cases, a radius around 0.5 to 1 times the wall thickness can help improve metal flow and reduce stress concentration.
Proper radii are especially important for:
Valve bodies
Pump components
Brackets
Housings
Mechanical arms
Structural connectors
Parts with multiple intersecting ribs or walls
Design recommendation:
Avoid sharp internal corners and abrupt intersections. Use smooth radii or chamfered transitions to improve casting quality and mechanical reliability.
Deep holes, blind holes, narrow slots, and closed cavities can be difficult to produce directly by casting.
In investment casting, holes and internal features may require cores, ceramic cores, soluble cores, or post-casting machining. If the hole is too small, too deep, or difficult to clean, casting it directly may increase cost and risk.
As a practical guideline, very small holes and deep blind holes are often better produced by machining after casting. For example, holes with very small diameters or high depth-to-diameter ratios may not be suitable for direct casting. Blind holes are generally more difficult than through holes because wax removal, shell forming, dewaxing, cleaning, and inspection are more challenging.

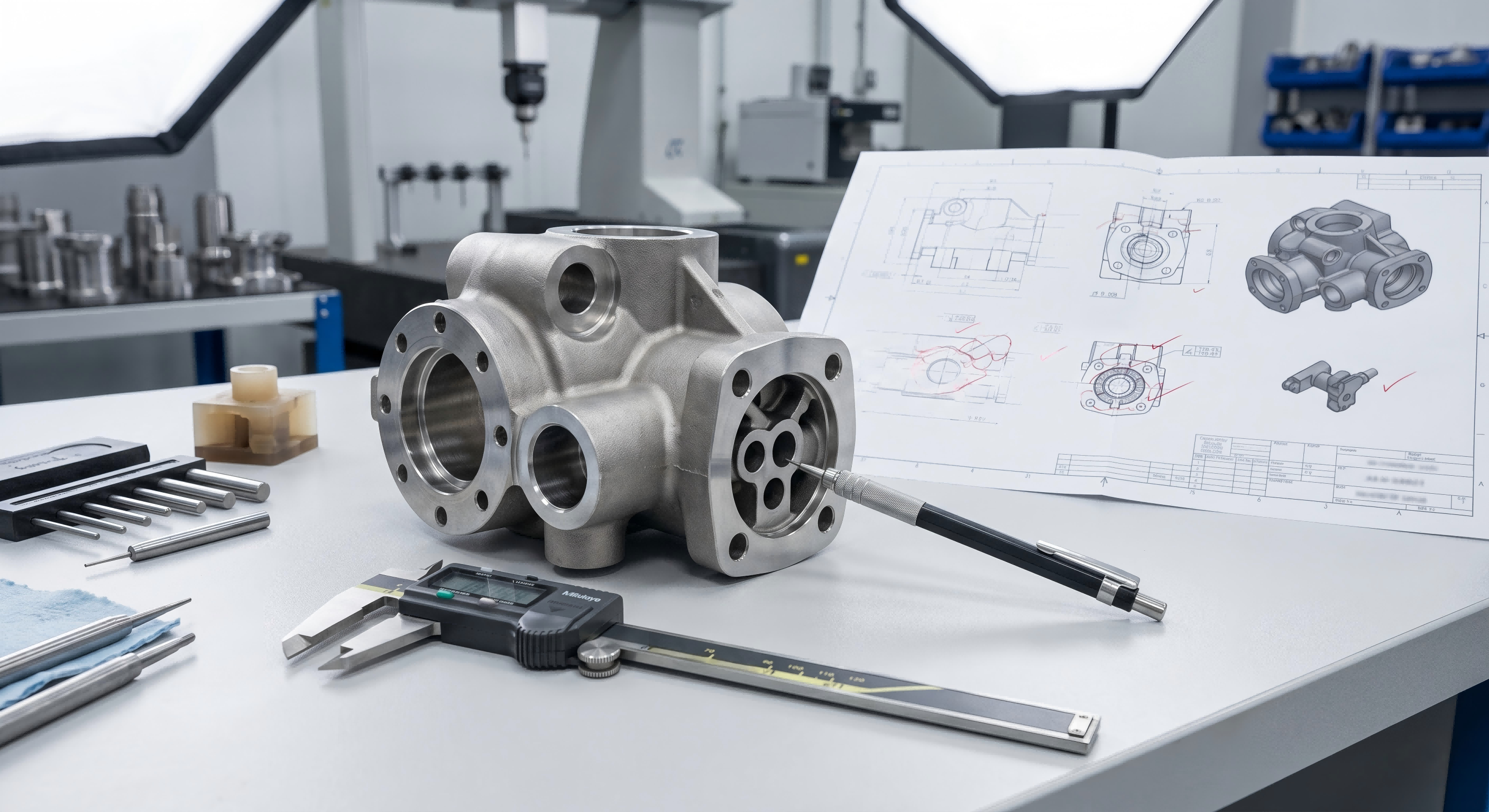

Figure 3. Hole geometry and internal features should be reviewed before tooling.
Ceramic cores can be used for certain internal features, including slender through holes, blind holes, or narrow slots. However, ceramic cores add cost and require careful design review. They are usually selected when machining is difficult, expensive, or impossible due to part geometry.
Design recommendation:
Avoid unnecessary deep blind holes, closed cavities, and narrow internal slots. If these features are required, discuss whether they should be cast with a ceramic core or produced by CNC machining.
Large flat surfaces may look simple in a 3D model, but they can create challenges during investment casting.
Large flat areas may be more likely to deform during shell building, drying, firing, pouring, or cooling. They can also make shell coating and drying less uniform, especially when the same part also contains holes, pockets, or complicated internal features.
If a large flat area cannot be avoided, the design can sometimes be improved by adding:
Process ribs
Strengthening ribs
Process holes
Slots
Raised bosses
Local structural support
These features can improve stiffness and reduce the risk of deformation. Of course, they should be reviewed together with the functional and appearance requirements of the part.
Design recommendation:
Avoid large unsupported flat surfaces when possible. Consider ribs, holes, slots, or structural features to improve casting stability and reduce deformation risk.
Investment casting tooling is used to produce wax patterns. Although investment casting tooling is usually simpler than die casting tooling or plastic injection molds, complex part geometry can still make wax pattern production more difficult.
Undercuts, deep cavities, narrow slots, and complex side features may require loose pieces, split cores, or more complicated tooling structures. These features can increase tooling cost, reduce wax pattern consistency, and slow production efficiency.
A good wax pattern tool should allow the wax pattern to be formed accurately and removed without damage. If the pattern is difficult to remove, it may require more manual repair, which can affect dimensional stability and surface quality.
Design recommendation:
Reduce unnecessary undercuts and complicated side features. If they are functionally required, the tooling structure should be reviewed carefully before mold manufacturing.
Many investment cast parts require CNC machining after casting.
For pump and valve components, machining may be required for sealing faces, threaded holes, bores, flanges, bearing positions, connection surfaces, or precision assembly areas. For industrial machinery parts, machining may be needed for mounting surfaces, shaft holes, locating features, or tolerance-critical areas.
Machining allowance should be considered during casting design and tooling design. If the allowance is too small, casting variation may not leave enough material for final machining. If the allowance is too large, machining cost and material waste may increase.
Datum surfaces are also important. A good datum strategy helps maintain machining consistency and inspection accuracy.
Design recommendation:
Identify critical machined surfaces before tooling. Define machining allowance, datum surfaces, and tolerance requirements clearly on the drawing.
Investment casting can achieve good dimensional accuracy compared with many other casting processes, but it is still not the same as CNC machining.
The achievable casting tolerance depends on part size, material, geometry, wall thickness, tooling structure, wax shrinkage, shell process, heat treatment, and post-casting operations. Thin-wall parts, thick-wall parts, carbon steel parts, stainless steel parts, and complex parts may require different shrinkage considerations.
For high-precision areas, CNC machining is usually recommended. For non-critical surfaces, as-cast tolerances may be acceptable and can help reduce cost.
A practical approach is to divide the part into three types of features:
Functional surfaces that require machining
Assembly-related dimensions that need controlled tolerance
Non-critical surfaces that can remain as-cast
This helps avoid over-specifying the entire part and keeps the project more cost-effective.
Design recommendation:
Do not apply tight tolerances to every surface unless necessary. Use casting tolerance for non-critical areas and CNC machining for precision features.

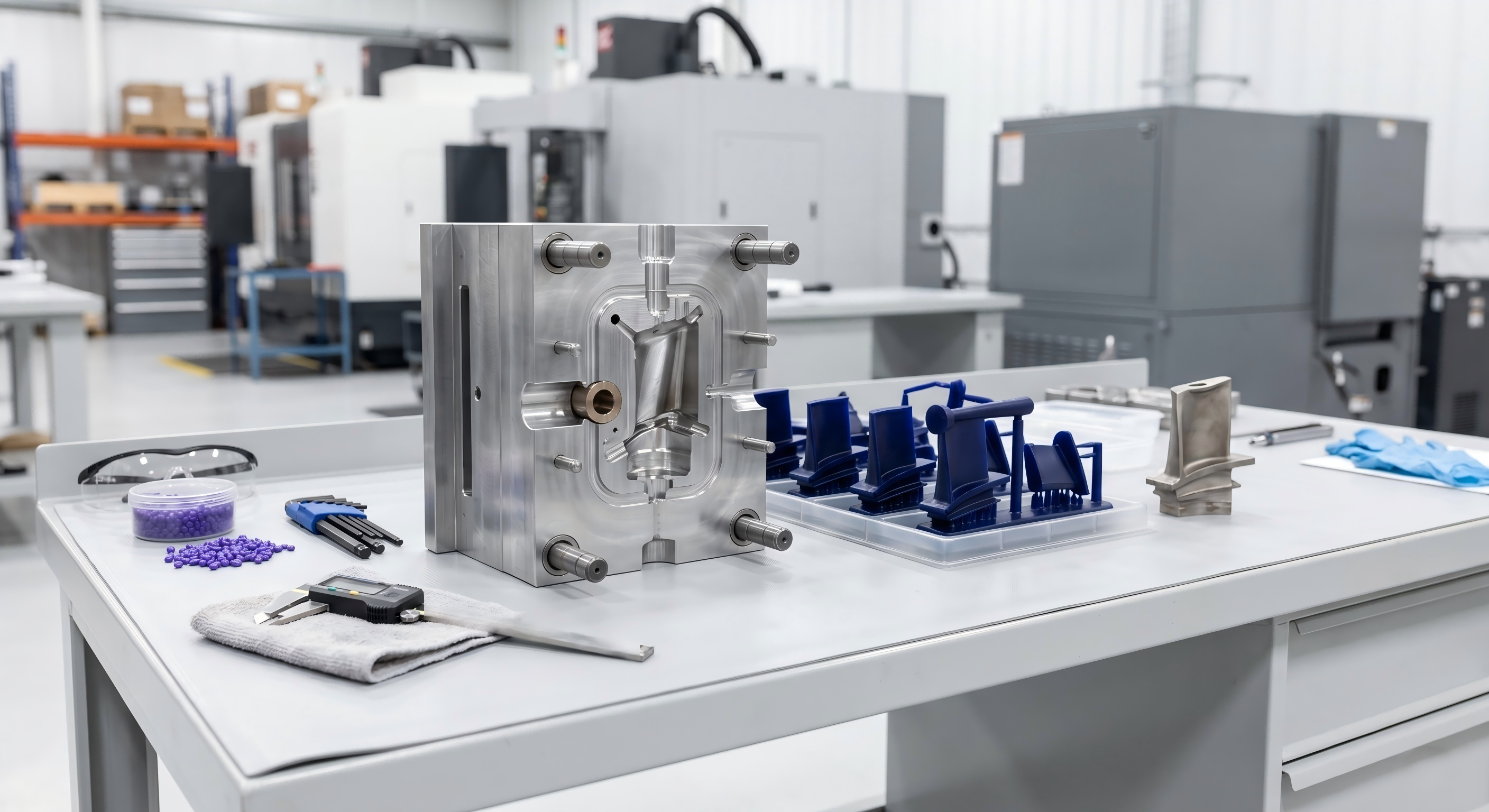

Figure 4. Wax pattern tooling affects dimensional consistency and production stability.
In investment casting, tooling is often called a wax pattern tool or wax injection die. This tool does not directly contact molten metal. Its function is to produce wax patterns with the required shape, size, and surface quality.
Even though investment casting tooling is often simpler than die casting molds, it still has a major influence on final part quality.
A good wax pattern tool should provide:
Accurate cavity dimensions
Smooth cavity surfaces
Proper parting line design
Easy wax pattern removal
Stable positioning and locking
Reasonable injection gate design
Effective venting for difficult-to-fill areas
Suitable shrinkage compensation
Convenient operation and maintenance
If the wax pattern is unstable, damaged, incomplete, or heavily repaired, the final casting quality will also be affected.
Wax injection is an important step in investment casting tooling design.
For simple parts, wax can usually fill the mold cavity smoothly. For complex parts with thin walls, deep sections, long flow paths, or isolated features, wax filling may become more difficult. In these cases, injection gates and venting should be designed carefully.
Poor venting can cause incomplete wax patterns, trapped air, surface defects, or inconsistent wax pattern quality. For difficult-to-fill wax patterns, proper venting can significantly improve production stability.
Multi-cavity tooling may also be used to improve production efficiency, especially for small and medium-sized parts. However, cavity layout must be designed properly so that each wax pattern can be filled consistently.
Design recommendation:
Do not treat wax tooling as a simple shape-copying tool. Gate position, venting, cavity layout, and pattern removal all need to be considered.
Wax pattern tooling materials are selected based on production quantity, wax injection pressure, part size, tool life requirements, and cost.
High-strength aluminum alloy is commonly used because it provides a good balance of strength, machinability, weight, and operation convenience. For certain high-wear areas or long-life tools, steel inserts or tool steel may be considered. Steel tooling can be durable, but it is heavier and may require more maintenance.
For some early-stage projects, prototype validation, or low-volume trial production, direct 3D printed wax patterns or burn-out plastic patterns may be used instead of traditional tooling. This can help customers test part structure before investing in production tooling.
Design recommendation:
Select the tooling approach according to project stage. For prototype validation, 3D printed patterns may help reduce early cost. For repeat production, a well-designed wax injection tool is usually more stable.
Some internal features cannot be produced by simple tooling alone.
Ceramic cores or 3D printed cores may be considered when a part has internal passages, narrow holes, complex cavities, or features that are difficult to machine after casting. These solutions can expand the design possibilities of investment casting.
However, cores also bring additional cost and process control requirements. Core positioning, strength, removal, cleaning, and dimensional stability must all be reviewed.
For this reason, the decision should be made based on:
Part geometry
Material
Quantity
Required tolerance
Machining accessibility
Functional importance of the internal feature
Cost comparison between casting and machining
Design recommendation:
Use ceramic cores or printed cores only when they provide a clear technical or cost advantage over machining.
Many industrial metal components are not only cast parts. They are cast and machined parts.
A pump housing, valve body, impeller, bracket, or machinery component may first be investment cast to achieve the near-net shape, then machined to meet functional requirements. This combined workflow is often more efficient than machining the entire part from solid material.
To design successfully for this workflow, the casting supplier should review:
Which areas can remain as-cast
Which areas require CNC machining
Which surfaces need sealing or assembly precision
Whether machining tools can access the required areas
Whether enough machining allowance is available
Whether clamping and datum surfaces are practical
Whether the part may deform during heat treatment or machining
Early review can help avoid expensive changes after tooling is already made.
Before starting an investment casting project, it is helpful to check whether the part includes any of the following risk factors:
Sudden wall thickness changes
Heavy isolated sections
Sharp internal corners
Cross-shaped wall intersections that create hot spots
Very deep blind holes
Narrow internal slots
Closed cavities
Large unsupported flat areas
Difficult undercuts
Unclear machining allowance
Tight tolerances on non-critical surfaces
Lack of clear datum surfaces
Features that are difficult to inspect or clean
These issues do not always mean the part cannot be produced. However, they should be reviewed before tooling starts.
Zeren is a direct manufacturer with casting and machining facilities in Foshan, China. We support custom investment casting, CNC machining, tooling preparation, 3D printing-assisted sample development, and surface finishing for industrial metal components.
For new projects, customers can send us:
2D drawings
3D models
Physical samples
Material requirements
Application conditions
Annual quantity estimates
Surface finish requirements
Machining and tolerance requirements
Our team can help review whether the part is suitable for investment casting, whether design optimization is recommended, and whether certain features should be cast, cored, machined, or modified.
This early communication helps reduce tooling risk and improves the chance of stable production after sample approval.
Investment casting is a flexible and precise manufacturing process, but good results depend on more than the casting process itself. Wall thickness, radii, holes, flat surfaces, machining allowance, tooling structure, wax injection, and venting all influence final quality.
For customers developing a new cast metal component, the best time to solve manufacturing problems is before tooling starts. A small design adjustment at the drawing stage may help reduce cost, shorten development time, improve casting quality, and make future production more stable.
If you are working on a custom investment casting part, send us your drawing, sample, or application details. Zeren can help evaluate the design and suggest a suitable casting and machining solution for your project.
One of the most important rules is to keep wall thickness as uniform as possible. Sudden changes between thick and thin sections can increase the risk of shrinkage, deformation, and internal defects.
Some blind holes can be produced, but deep or small blind holes are usually difficult to cast directly. Depending on the design, they may need to be machined after casting or produced with ceramic cores.
Sharp corners can create stress concentration and make metal flow less stable. Using proper radii or chamfered transitions helps reduce cracking risk and improve casting quality.
Large flat surfaces can be cast, but they may increase the risk of deformation or process instability. Ribs, slots, process holes, or structural support may be recommended.
No. Investment casting tooling is usually used to produce wax patterns, while die casting tooling directly handles molten metal under pressure. Investment casting tooling is generally simpler, but it still needs accurate cavity design, venting, shrinkage compensation, and easy wax pattern removal.
3D printed wax or burn-out plastic patterns can be useful for prototype validation, small trial batches, or early-stage product development before investing in production tooling.
Sealing faces, bores, threaded holes, bearing positions, flanges, and precision assembly surfaces are commonly machined after casting. Non-critical surfaces can often remain as-cast to reduce cost.
Yes. You can send us your 2D drawing, 3D file, sample, or application details. Our team can review castability, machining allowance, tooling feasibility, and material options before production tooling starts.
Send us your drawing, 3D model, sample, or application requirements. Our team can help evaluate castability, tooling feasibility, machining allowance, material selection, and possible design improvements before production tooling starts.
