Custom Pump & Valve Parts Manufactured to Drawing

Explore representative pump and valve components manufactured from customer drawings through steel investment casting, CNC machining, heat treatment and surface finishing.


We support custom valve bodies, pump housings, impellers, flow-control components, connector parts and other non-standard components for pump, valve and fluid-handling equipment.


Custom OEM Parts · No Standard Stock · Quotation Based on Drawings

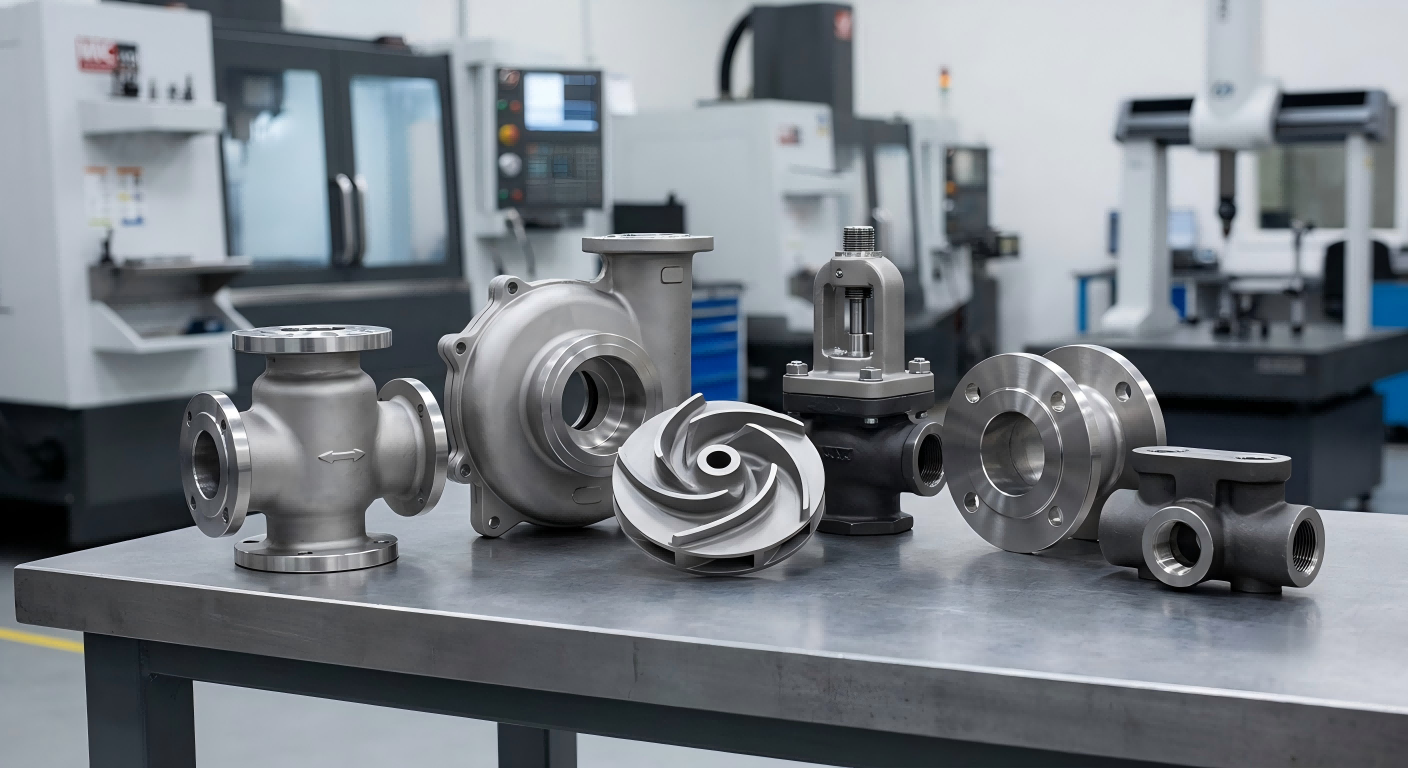

Custom steel pump and valve parts manufactured by investment casting and CNC machining

Representative Pump & Valve Component Categories

The components shown below are representative manufacturing examples rather than standard off-the-shelf products. Final geometry, material, machining scope and surface treatment are produced according to customer drawings and technical requirements.

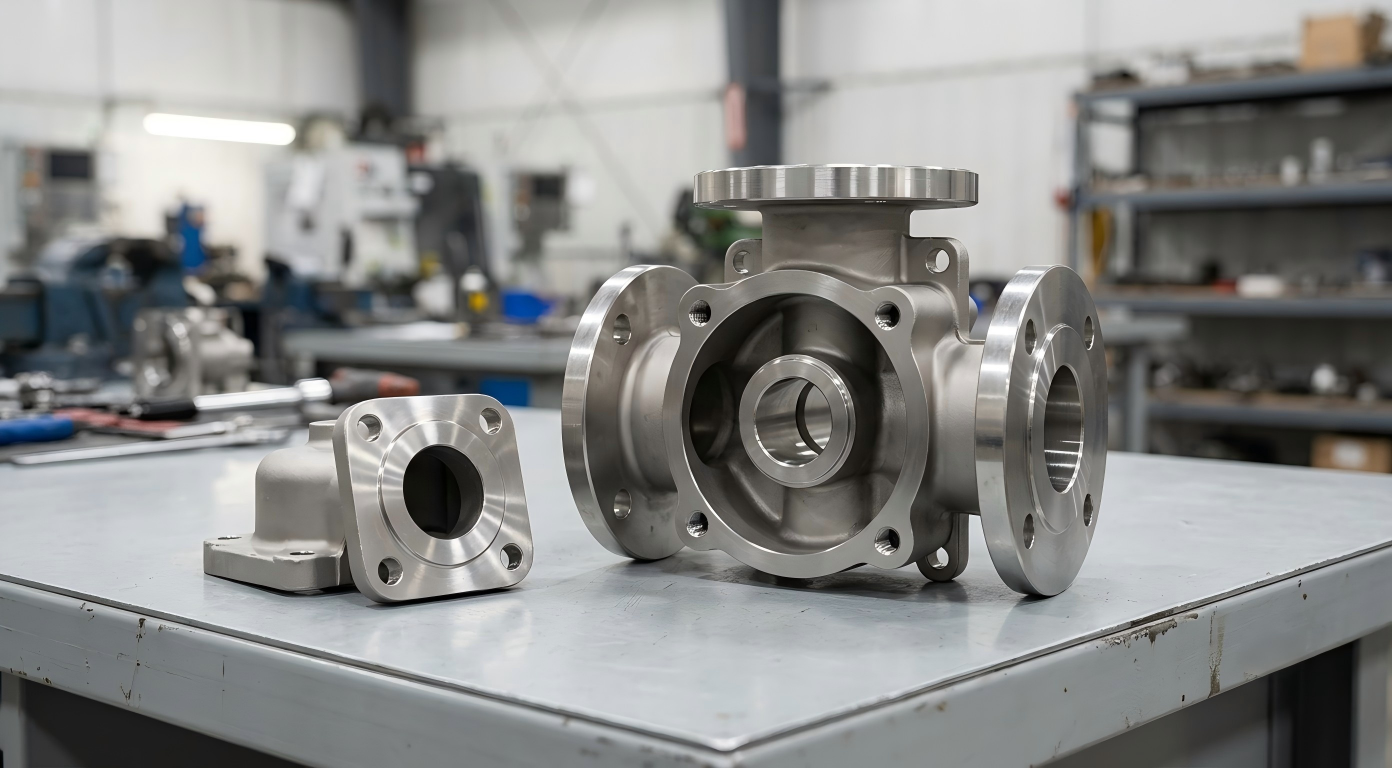

Custom stainless steel valve bodies and housings with machined sealing surfaces
Valve Bodies & Covers
Custom investment cast valve bodies, valve covers and related pressure-containing components for fluid-control assemblies.

Typical features may include internal passages, flanged or threaded connections, machined bores, sealing faces and mounting interfaces.

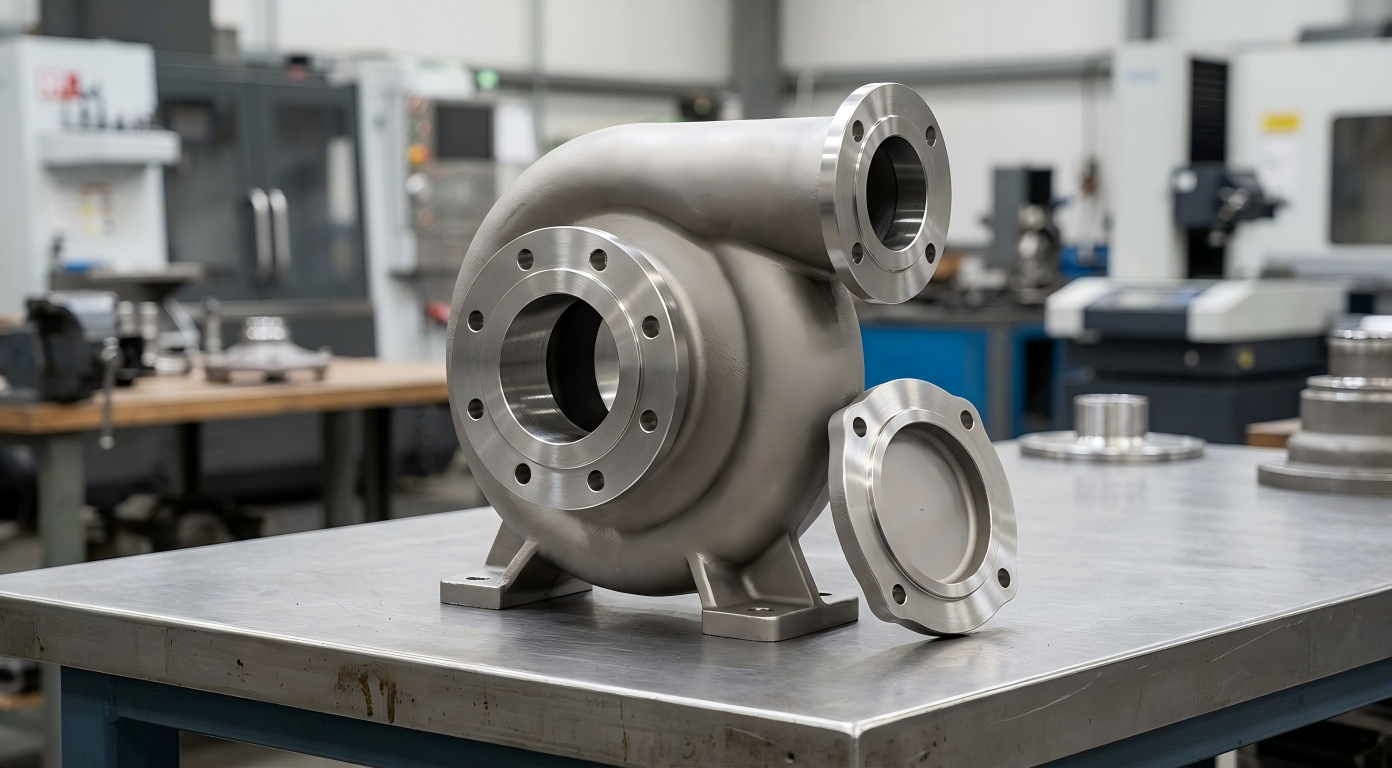

Custom steel pump housings and casings with CNC machined mounting surfaces

Pump Housings & Casings

Cast pump housings, casings and structural pump components requiring stable wall structure, accurate connection areas and secondary machining.

Machining can be applied to mounting faces, bores, holes, threads and assembly datums according to drawing requirements.

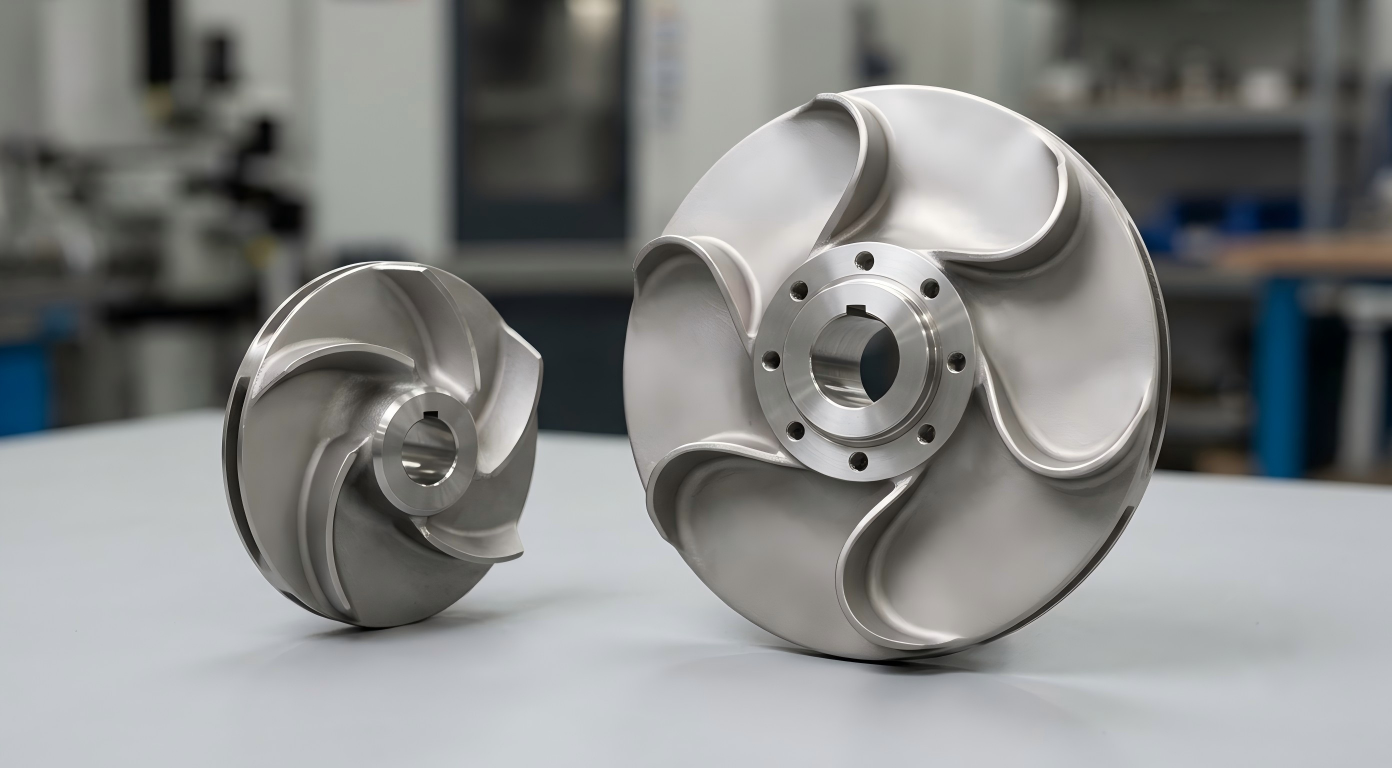

Custom stainless steel pump impellers with complex investment cast blades and machined bores

Impellers & Diffusers

Investment cast impellers, diffuser components and flow-related parts with curved blades, complex geometry and repeatable structural features.

Material, casting process and finishing requirements are evaluated according to the fluid environment and operating conditions.

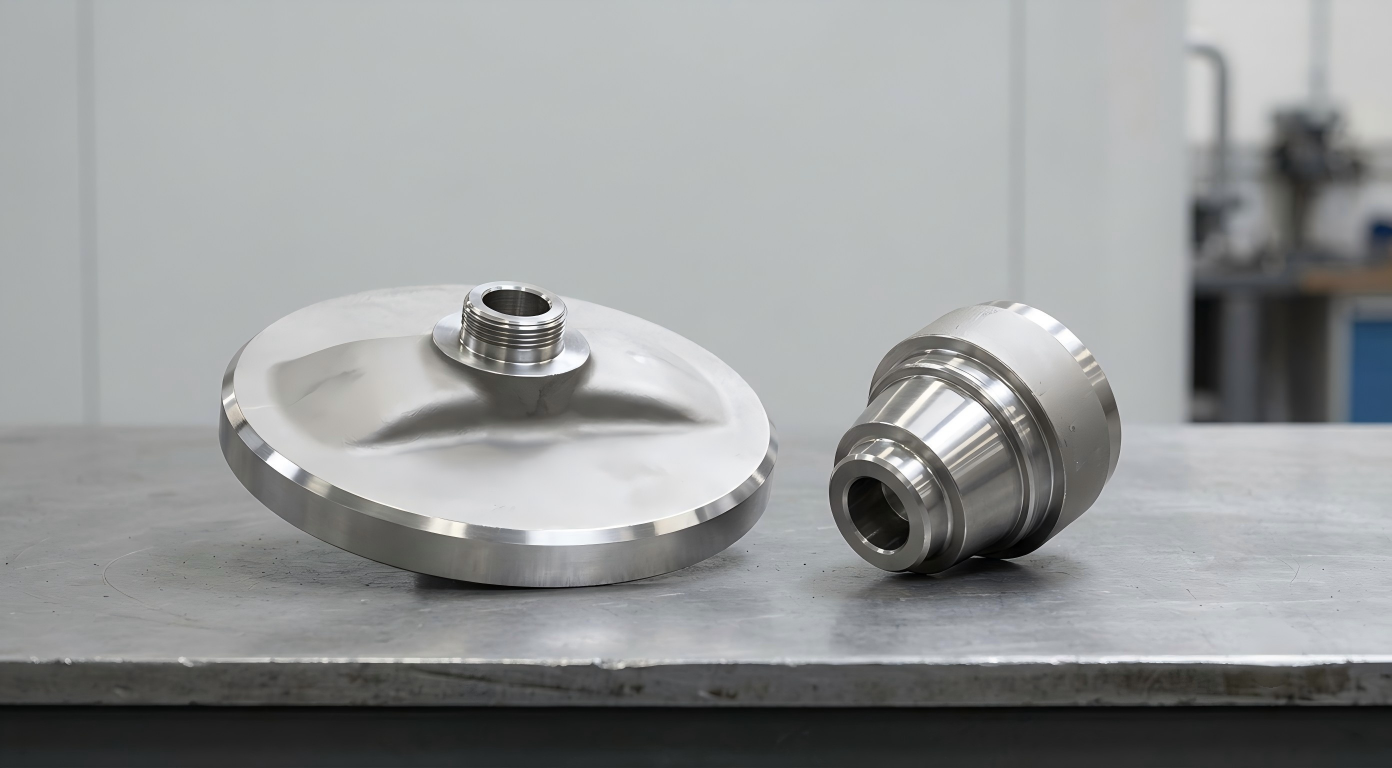

Custom steel valve discs and plugs with precision machined sealing surfaces
Discs, Seats & Flow-Control Components
Custom valve discs, seats and internal flow-control components requiring dimensional consistency, suitable material properties and accurate assembly interfaces.

Critical sealing or contact areas can be machined and inspected according to the customer drawing.

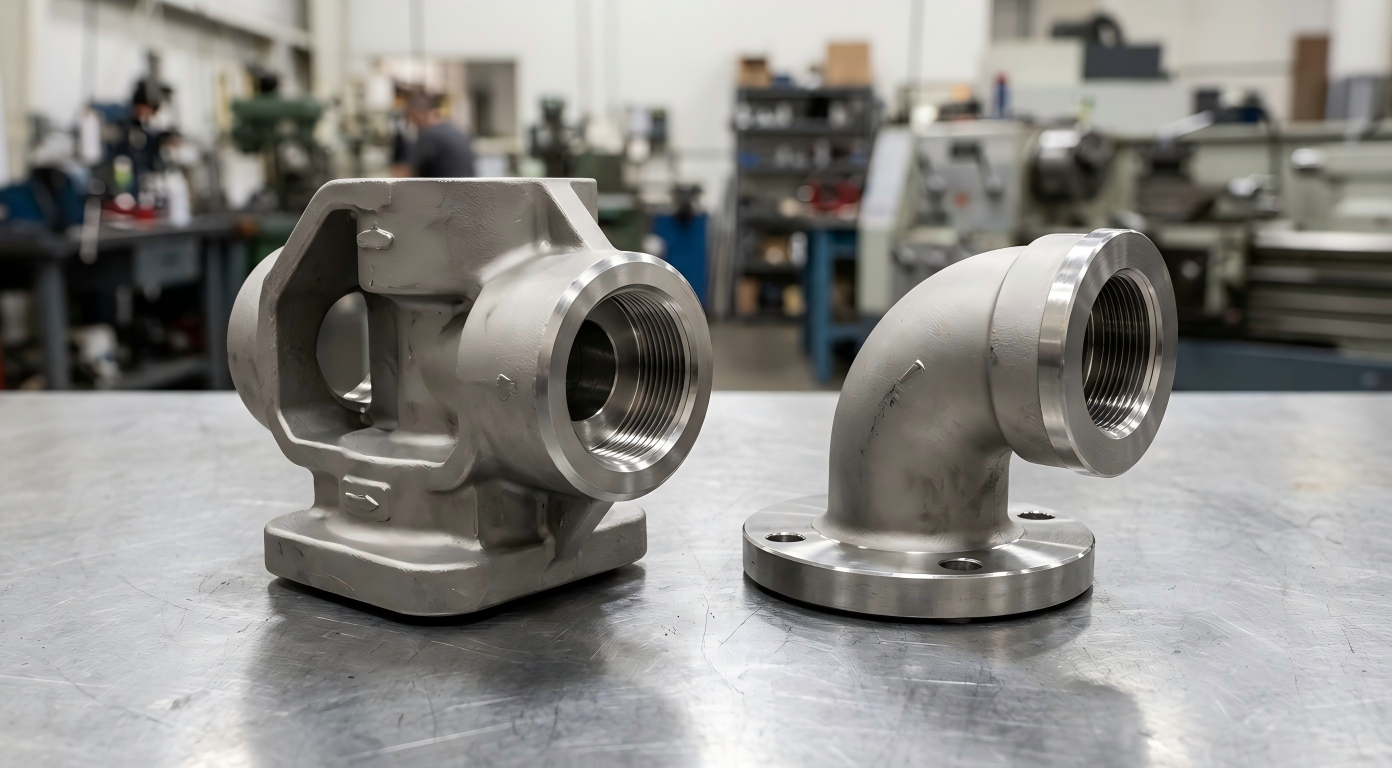

Custom steel elbows connector seats and fittings with machined threads and sealing areas

Elbows, Connector Seats & Fittings

Custom elbows, connector seats, flanged fittings and related connection components for pump, valve and fluid-handling assemblies.

These parts may include internal flow paths, threaded connections, machined sealing areas and positioning features.

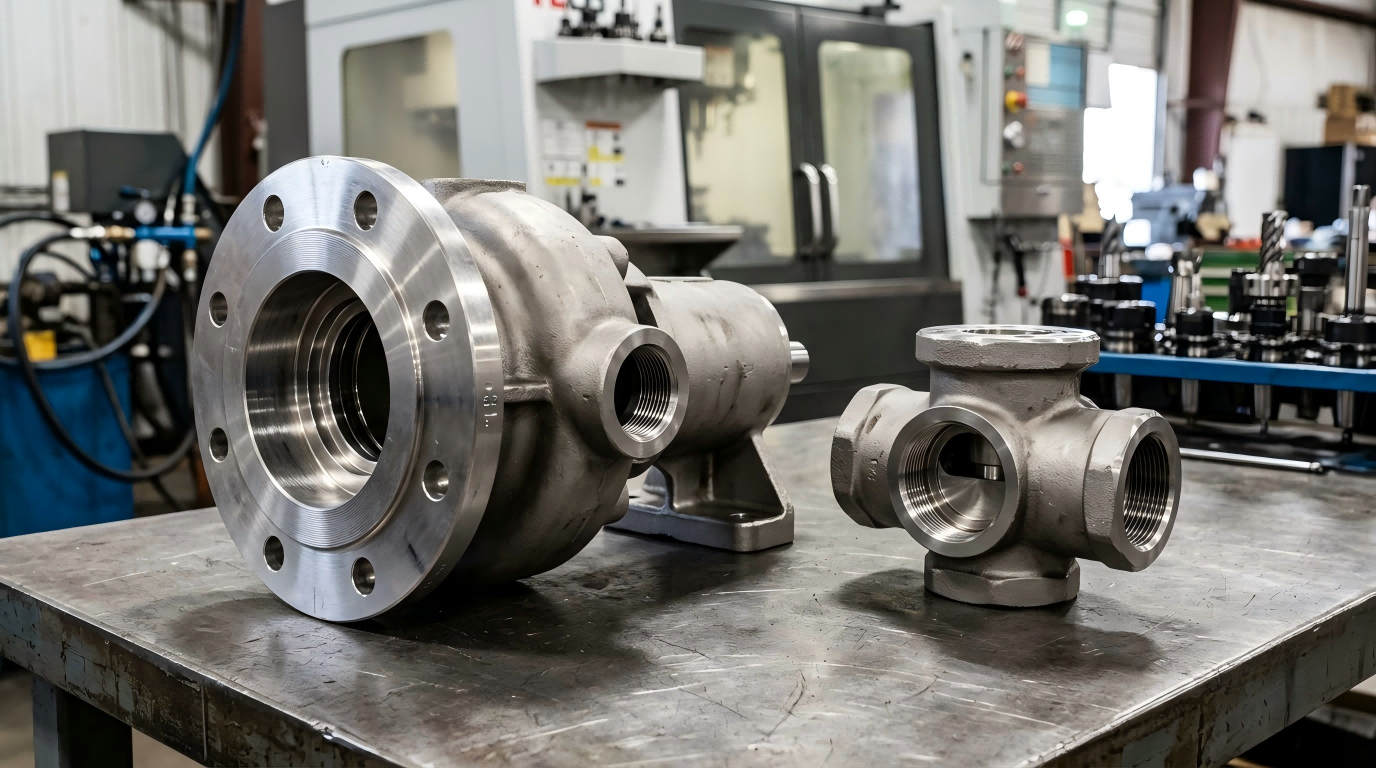

Investment cast pump and valve components with CNC machined bores flanges threads and sealing faces

CNC-Machined Pump & Valve Components

Investment cast pump and valve parts supplied with secondary CNC machining for sealing faces, bores, threads, mounting surfaces and assembly-critical dimensions.

Parts can be delivered as castings, partially machined components or finished parts depending on project requirements.

Selected Pump & Valve Part Examples

Browse representative steel components manufactured for custom pump and valve projects.


The examples shown on this page demonstrate our manufacturing experience. They are not standard products available from stock. Similar components can be evaluated based on your drawings, samples, material requirements and estimated quantities.

BV002 4
Stainless Steel Valve Body

Material: 316 Stainless Steel

Manufacturing: Investment Casting + CNC Machining

Features: Machined bore, sealing face and threaded holes

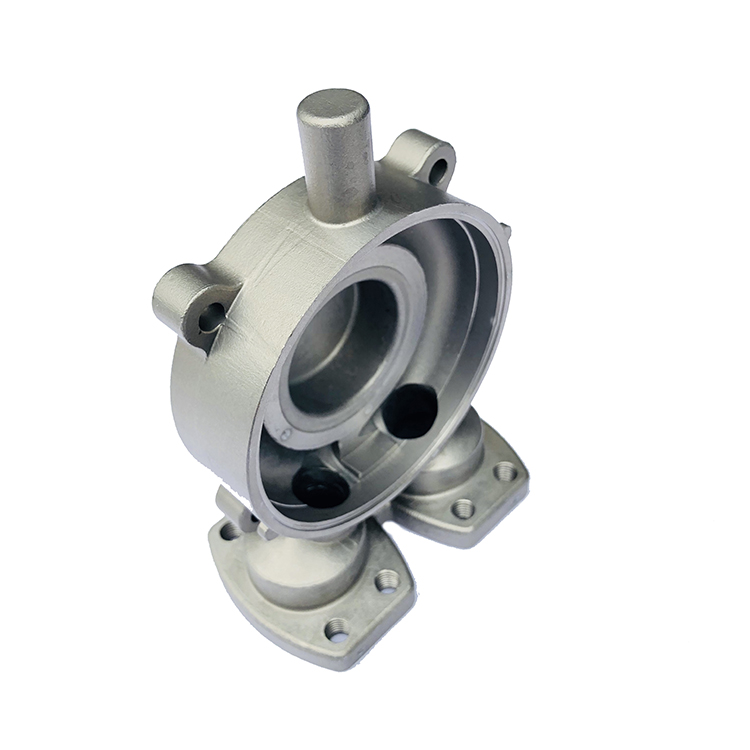

BV001 1

Pump Body


Material: 304 Stainless Steel

Manufacturing: Investment Casting + CNC Machining

Features: Machined central bore, flange face, threaded ports and mounting holes

BV019 01

Custom Pump Housing


Material: 316 Stainless Steel

Manufacturing: Investment Casting + CNC Machining

Features: Complex internal flow passage, machined connection faces, bores and mounting features

BV003 1

Three-Way Valve Body


Material: Carbon Steel

Manufacturing: Investment Casting + CNC Machining

Features: Three-way internal flow passage, machined flange faces, connection bores and mounting interfaces


What These Part Examples Demonstrate


Complex Cast Geometry
Investment casting can form non-standard pump and valve geometries, curved profiles, connection structures and other features that would require extensive machining from solid material.
Internal Flow Passages
Valve bodies, pump housings, elbows and related parts may include internal flow-related structures that require suitable tooling and stable casting control.
Machined Sealing Faces
Sealing faces, flange surfaces, mounting faces and connection areas can be CNC machined according to drawing tolerances and surface requirements.
Precision Bores and Datum Features
Critical bores, positioning surfaces and assembly datums can be machined and inspected to support reliable fitting and installation.
Threads and Mounting Holes
Cast components can be supplied with drilled, tapped or machined holes, threads and mounting features according to the final assembly design.
Finished Component Delivery
Depending on project requirements, parts can be supplied with machining, heat treatment, polishing, passivation, coating, black oxide or other suitable finishing processes.


From Drawing to Finished Pump & Valve Part

Our manufacturing workflow combines casting and secondary operations according to the requirements of each component.

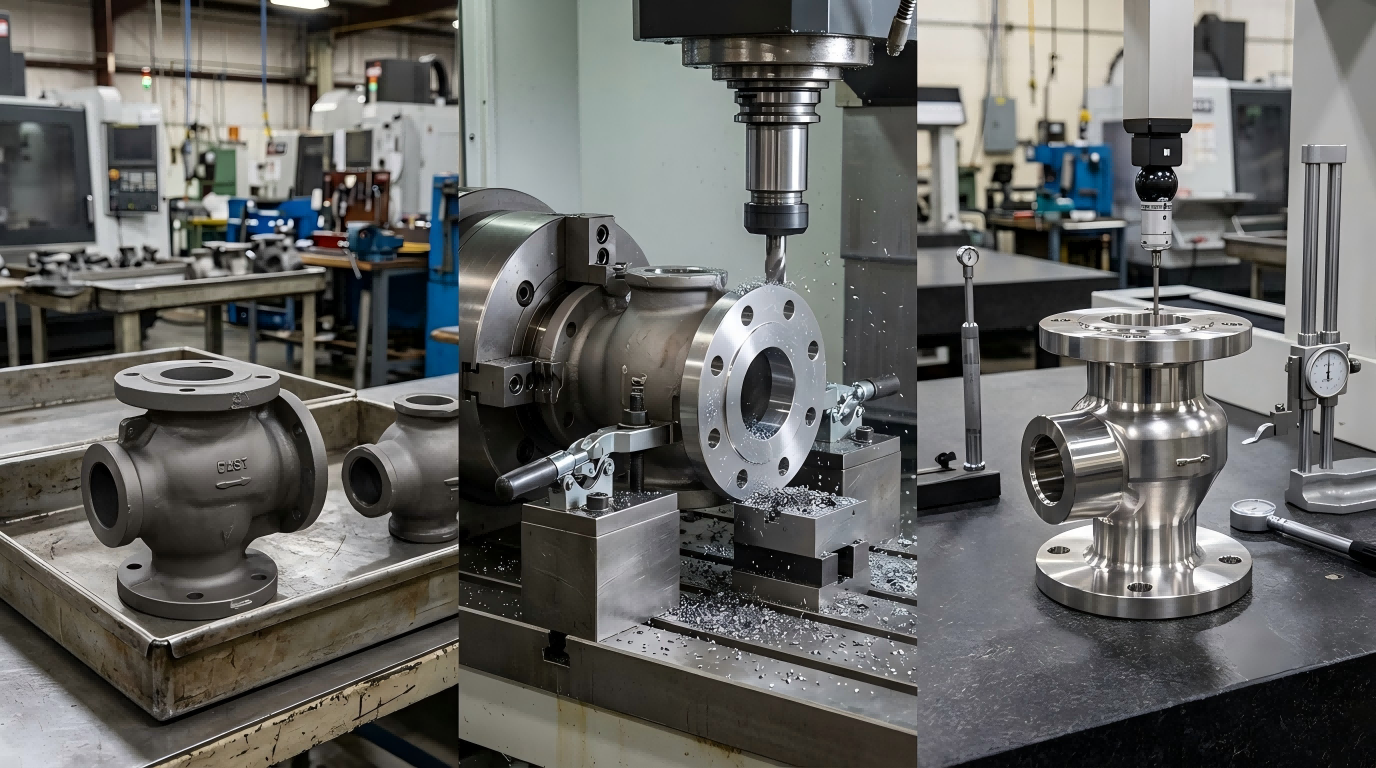

Investment casting CNC machining and quality inspection process for custom pump and valve parts
01 Drawing Review
Review part geometry, material, wall thickness, machining areas, tolerances and estimated quantity.
02 Tooling & Pattern Preparation
Prepare production tooling, prototype patterns or other suitable pattern solutions according to the project stage.

03 Investment Casting

Produce complex steel components through silica sol lost-wax investment casting.

04 CNC Machining

Machine sealing faces, bores, threads, holes, mounting surfaces and other critical features.
05 Heat Treatment & Finishing
Apply suitable heat treatment and surface finishing based on the material and drawing requirements.
06 Inspection & Delivery
Inspect dimensions, material, surface condition and agreed quality requirements before packaging and shipment.
Materials Used for Pump & Valve Part Examples

Material selection depends on the working environment, corrosion exposure, mechanical load, machining requirements and applicable material standards.

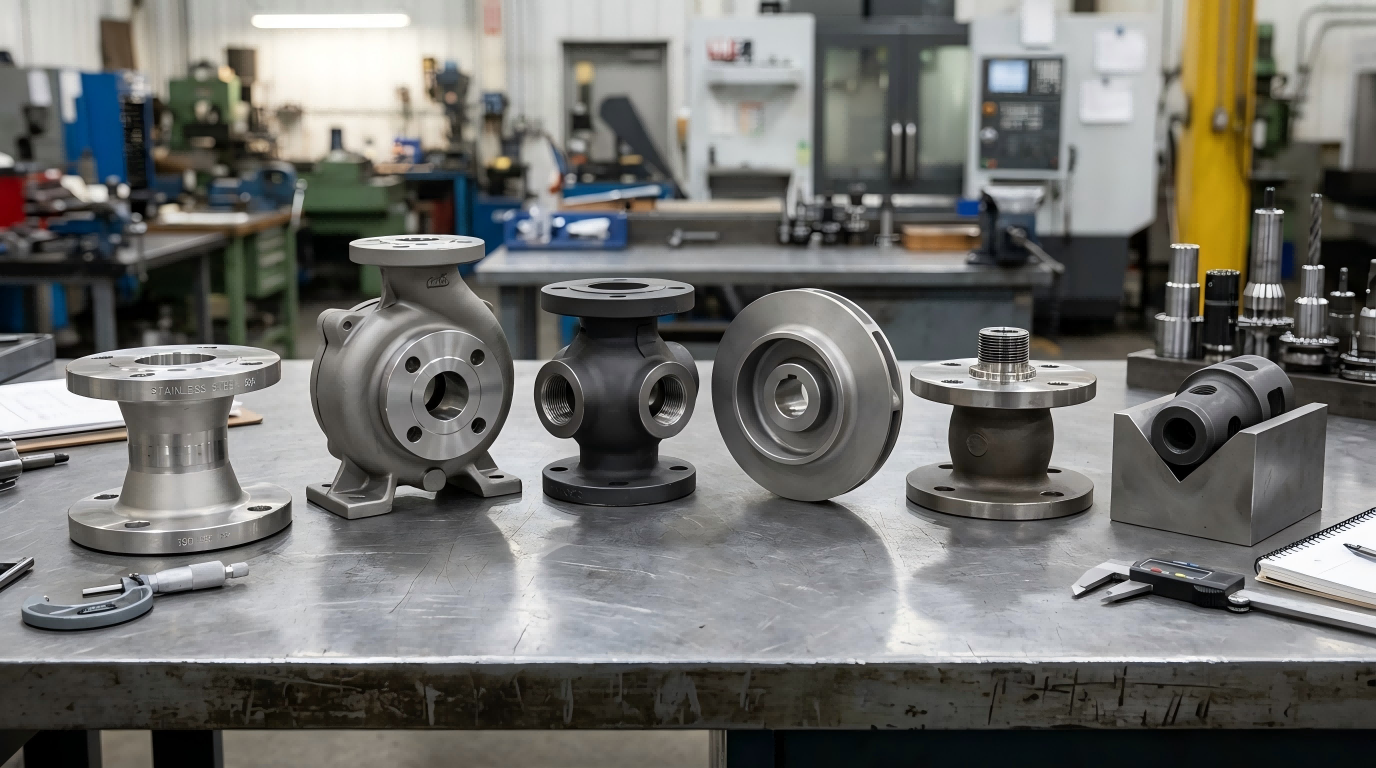

Pump and valve components made from stainless carbon alloy duplex heat-resistant and wear-resistant steel
Stainless Steel
Used for corrosion-resistant pump and valve components requiring stable machining and clean surface quality.
Carbon Steel
A practical option for general fluid-handling and structural components where strength, machinability and cost efficiency are important.
Duplex Stainless Steel
Used for components exposed to more demanding corrosive, chloride-containing or marine-related environments.
Alloy Steel
Used for parts requiring improved strength, toughness, wear resistance or heat-treatment response.
Final material grades are confirmed according to customer drawings, service conditions, mechanical requirements and applicable standards.
Looking for Application-Level Pump & Valve Solutions?


This page presents representative pump and valve component examples.


For information about pump and valve applications, service environments, corrosion conditions, material selection, sealing requirements and integrated manufacturing support, explore our dedicated industry solutions page.

Frequently Asked Questions About Custom Pump & Valve Parts

Q1. Are these standard off-the-shelf pump and valve products?


No. The parts shown on this page are representative custom manufacturing examples. We mainly produce non-standard components according to customer drawings, samples and technical specifications.
Q2. Can you manufacture a component similar to one shown on this page?


Yes. You can send us your drawing, 3D model, sample photos or technical requirements. We will evaluate whether investment casting, CNC machining and related secondary processes are suitable for the component.
Q3. What information is required for quotation?


Please provide available 2D drawings or 3D files, material requirements, estimated quantity, machining tolerances, surface treatment requirements and application information. These details help us evaluate manufacturing feasibility and prepare a more accurate quotation.

Have a Similar Pump or Valve Part?

Send us your 2D drawing, 3D model, sample photos or technical requirements.

Please include the required material, estimated quantity, machining areas, tolerances, heat treatment and surface finishing requirements whenever available.

Our team will review the component and evaluate a suitable investment casting and machining solution for your project.

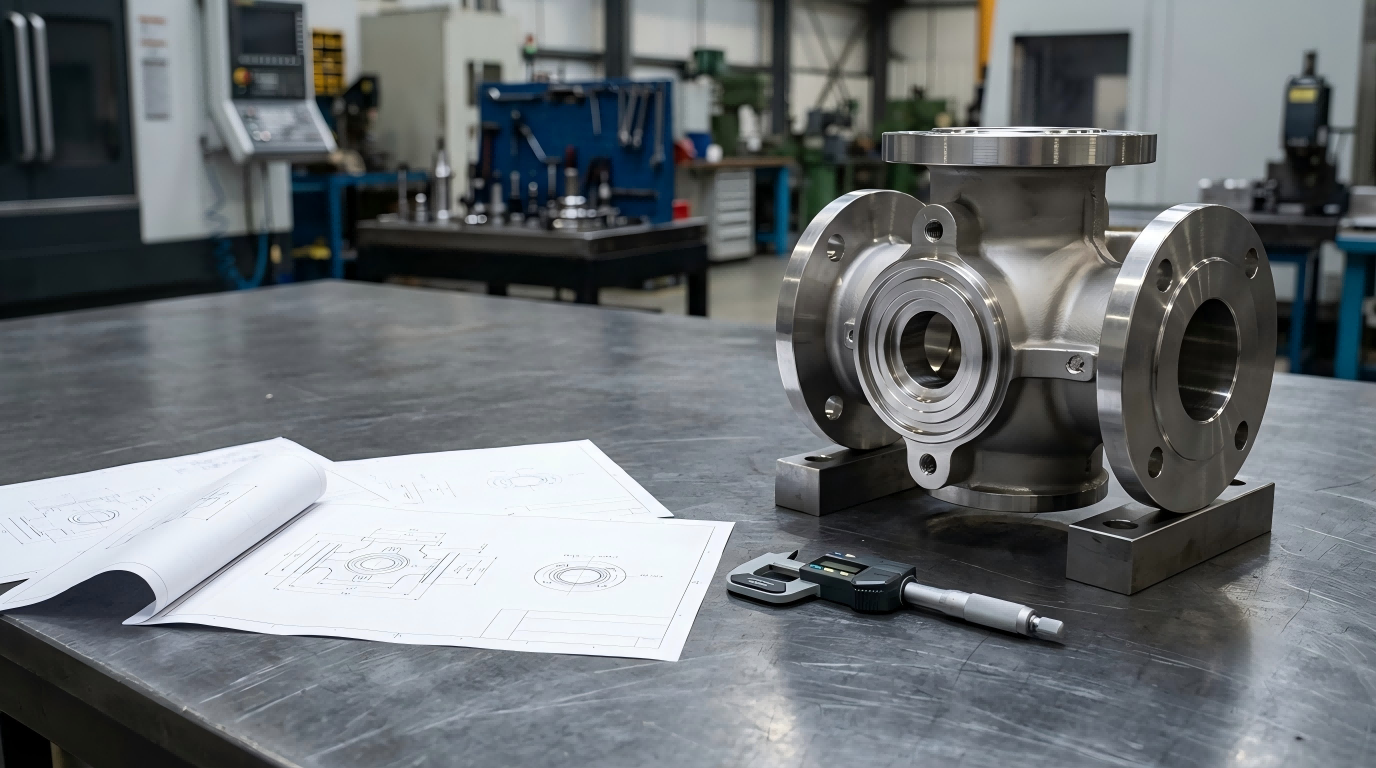

Technical drawing custom steel valve body and inspection tools prepared for quotation review
