Wear-Resistant Steel Investment Casting


Custom wear-resistant steel investment castings for components exposed to abrasion, repeated contact, impact and demanding operating conditions.


We evaluate material selection, target hardness, heat treatment, machining and inspection requirements according to your drawings and actual application.

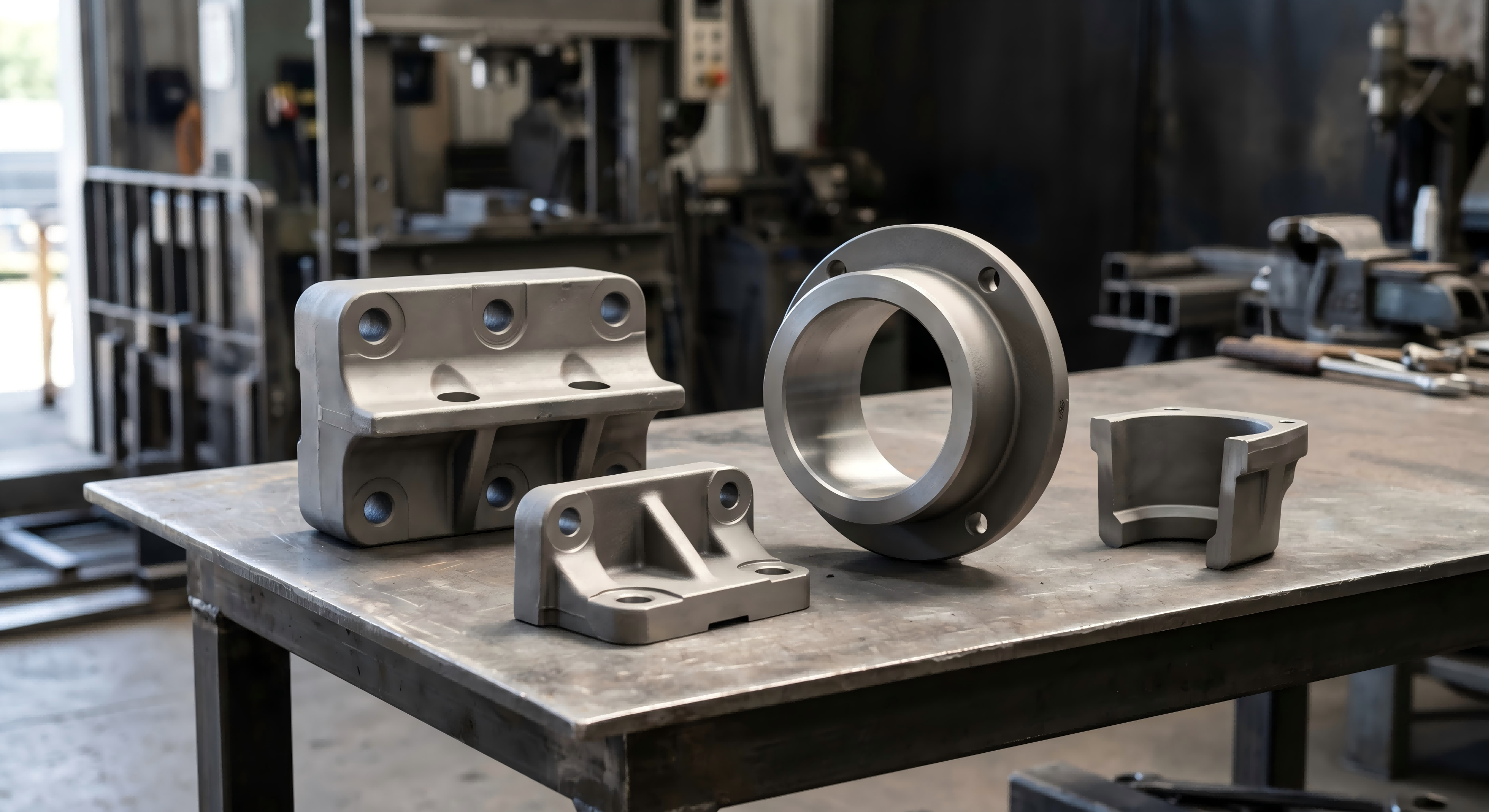

Custom wear-resistant steel investment cast components for abrasive and heavy-duty industrial applications
Wear-Resistant Steel Castings for Demanding Working Conditions


Wear-resistant steel castings are used where repeated friction, abrasive particles, impact or surface contact can gradually damage a component.


Wear resistance is not determined by hardness alone. Material composition, toughness, heat treatment, component geometry, surface condition and actual working conditions must be evaluated together to reduce premature wear, cracking or deformation.


Zeren supports custom wear-resistant steel investment casting projects from drawing review and material evaluation to heat treatment, CNC machining and final inspection.

Common Wear Conditions We Can Evaluate


Different wear mechanisms require different combinations of hardness, strength, toughness and corrosion resistance. Understanding the actual working environment is important before selecting a material or heat-treatment process.

Abrasive Particle Wear
Wear caused by sand, dust, minerals, chips or other hard particles moving across the component surface.
Sliding and Contact Wear
Repeated metal-to-metal contact or sliding movement that gradually removes material from the working surface.
Impact and Gouging Wear
Combined impact and abrasion that may require both surface hardness and sufficient internal toughness.
Erosive Wear
Surface damage caused by high-velocity particles, liquids or mixed media striking the component.
Wear in Corrosive Environments
Applications where mechanical wear occurs together with moisture, chemicals, saltwater or other corrosive media.
Repeated Load and Surface Fatigue
Repeated rolling, contact or cyclic loading that may cause surface fatigue, pitting or gradual material loss.

Applications for Wear-Resistant Steel Investment Castings

Wear-resistant steel investment casting can be considered for small and medium-sized precision components used in machinery and equipment where dimensional accuracy, mechanical strength and service life are important.

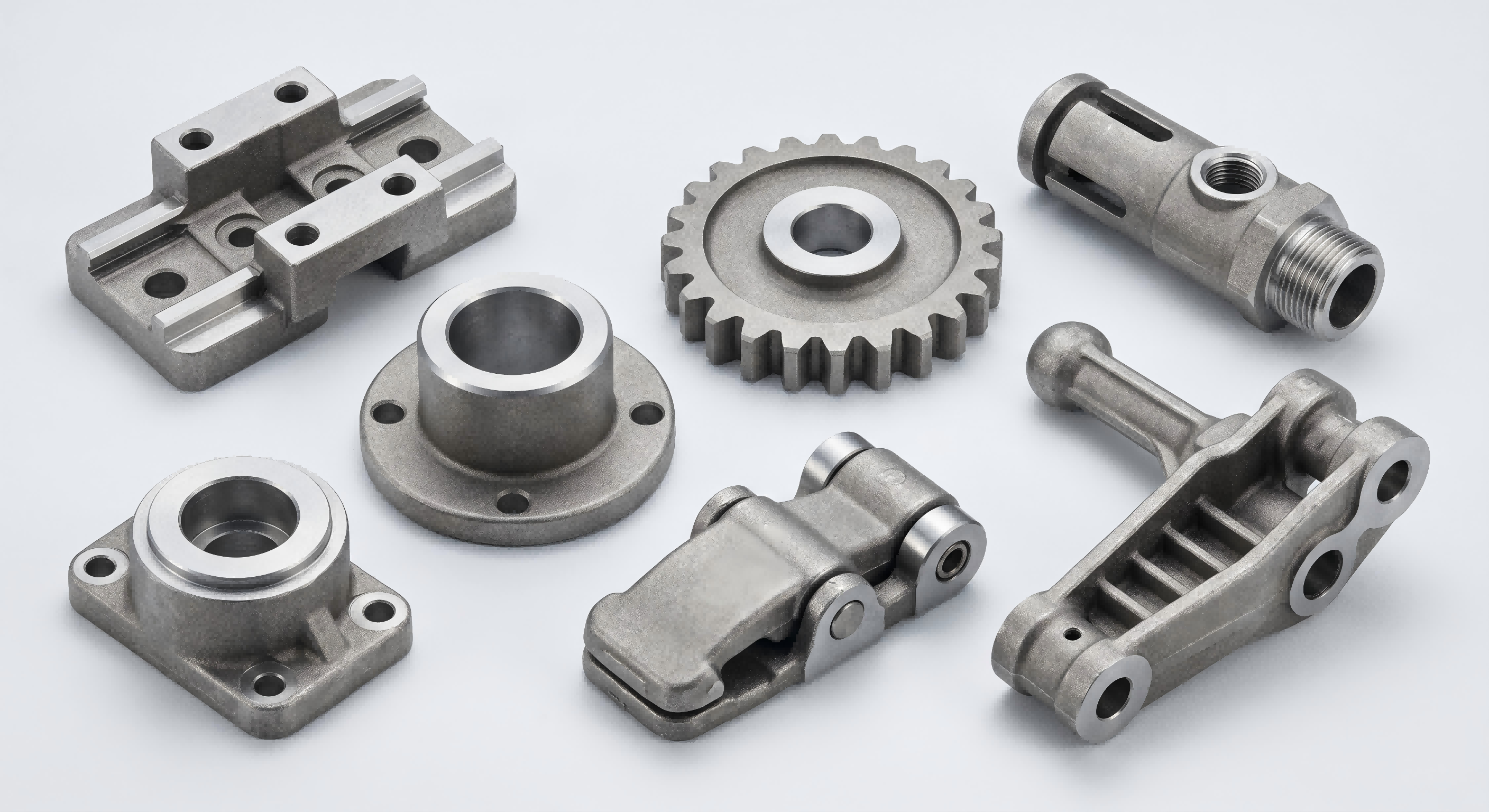

Wear-resistant steel cast parts for industrial machinery and equipment applications
Industrial Machinery
Wear components, contact parts and functional mechanisms used in production and processing equipment.
Material Handling Equipment
Parts used in conveying, feeding, guiding, clamping and material-transfer systems.
Agricultural and Construction Equipment
Custom components exposed to soil, particles, repeated loading or outdoor operating conditions.
Pumps, Valves and Fluid Equipment
Internal components exposed to flowing media, particles, repeated movement or localized surface wear.
Transportation and Drivetrain Systems
Load-bearing, locking, connecting and motion-control components exposed to repeated contact.
Tools, Fixtures and Functional Hardware
High-strength cast parts used in tools, industrial fixtures, locking systems and heavy-duty hardware.

Representative Heat-Resistant Steel Cast Parts

Zeren supports custom heat-resistant steel investment castings for industrial heating and thermal-processing equipment. The following examples represent typical component types that can be evaluated according to customer drawings, material specifications, service temperature, working atmosphere, part structure, and inspection requirements.

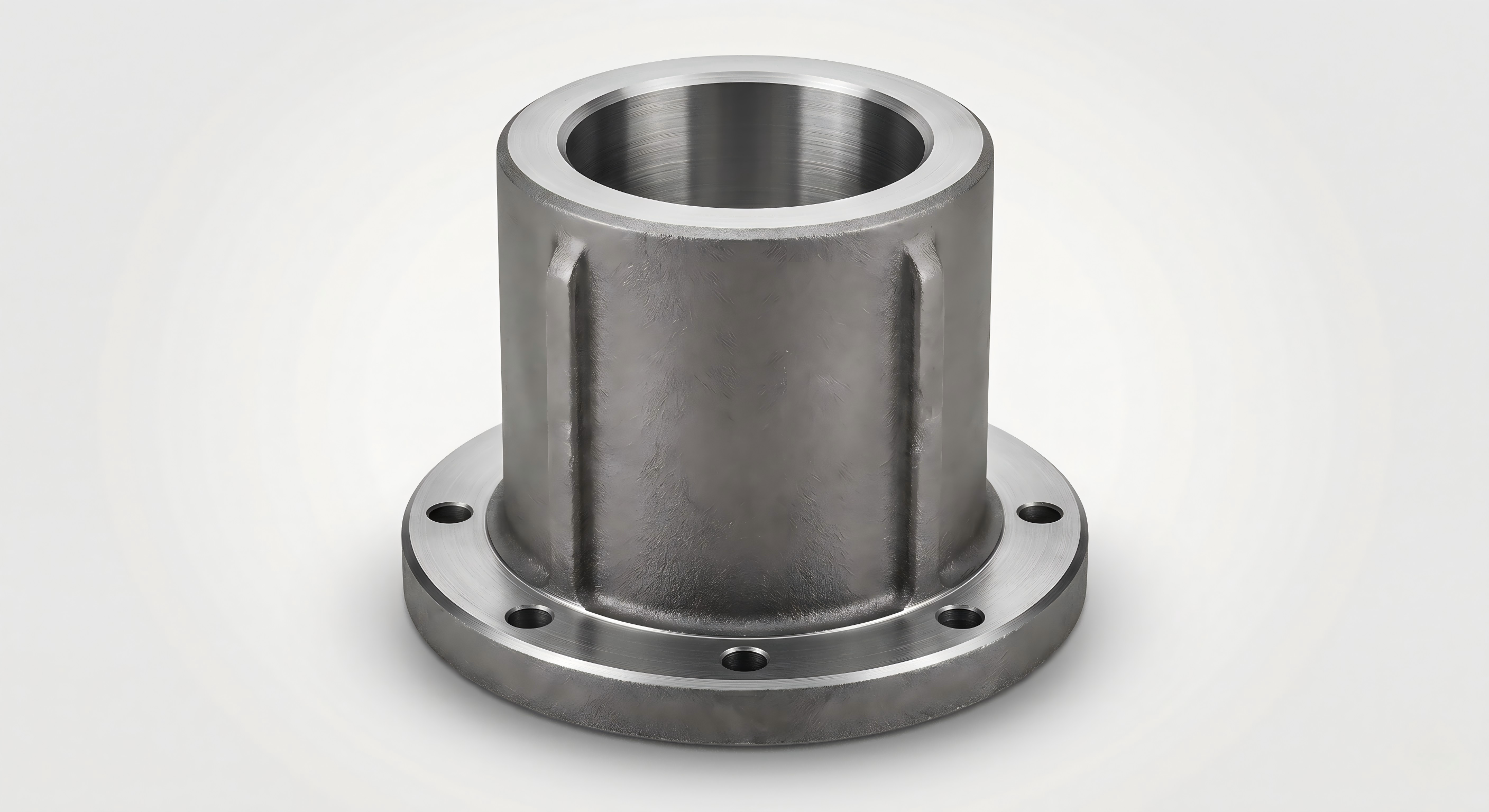

Wear-resistant steel investment cast bushing with machined internal bore
Wear Bushings and Sleeves
Precision cast components used to support shafts, guide movement or protect surrounding assemblies from contact wear.

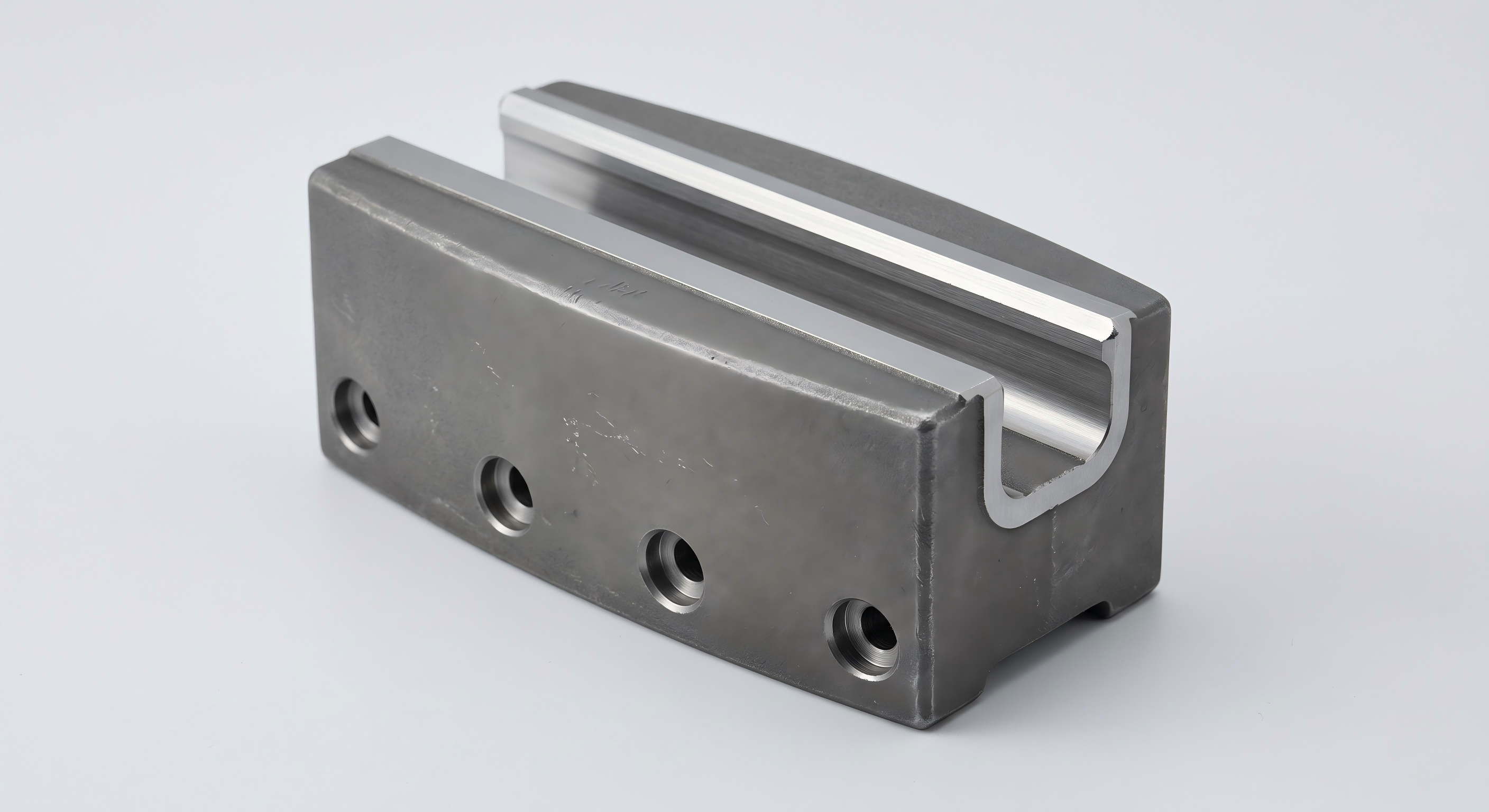

Custom wear-resistant steel guide block investment casting for sliding mechanisms

Guide Blocks and Sliding Shoes

Components used in guiding, positioning and sliding mechanisms where repeated surface contact occurs.

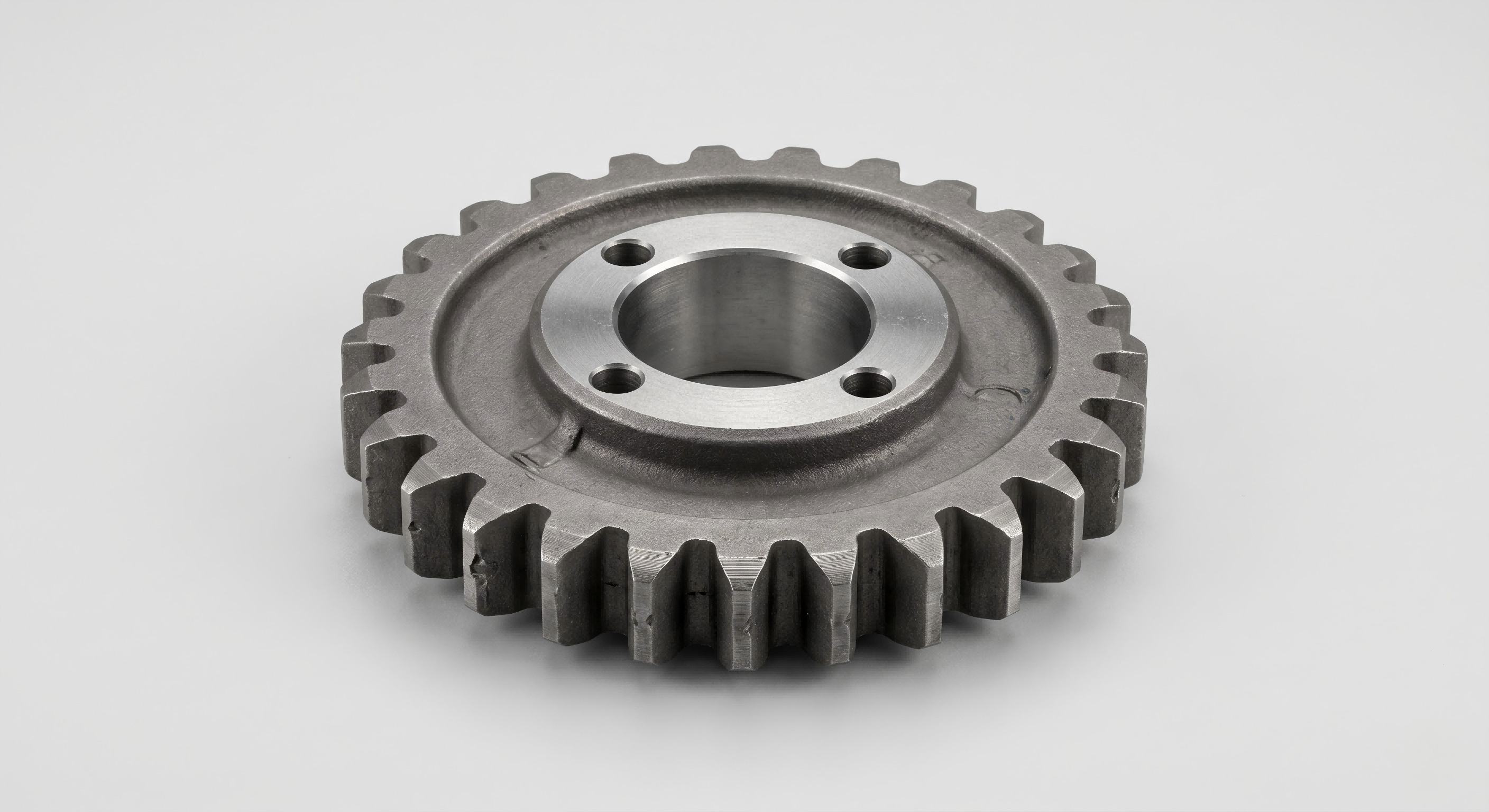

Wear-resistant steel ratchet wheel investment casting with precision teeth

Sprockets, Pawls and Ratchets

Functional parts requiring accurate profiles, strength and resistance to repeated engagement and contact.

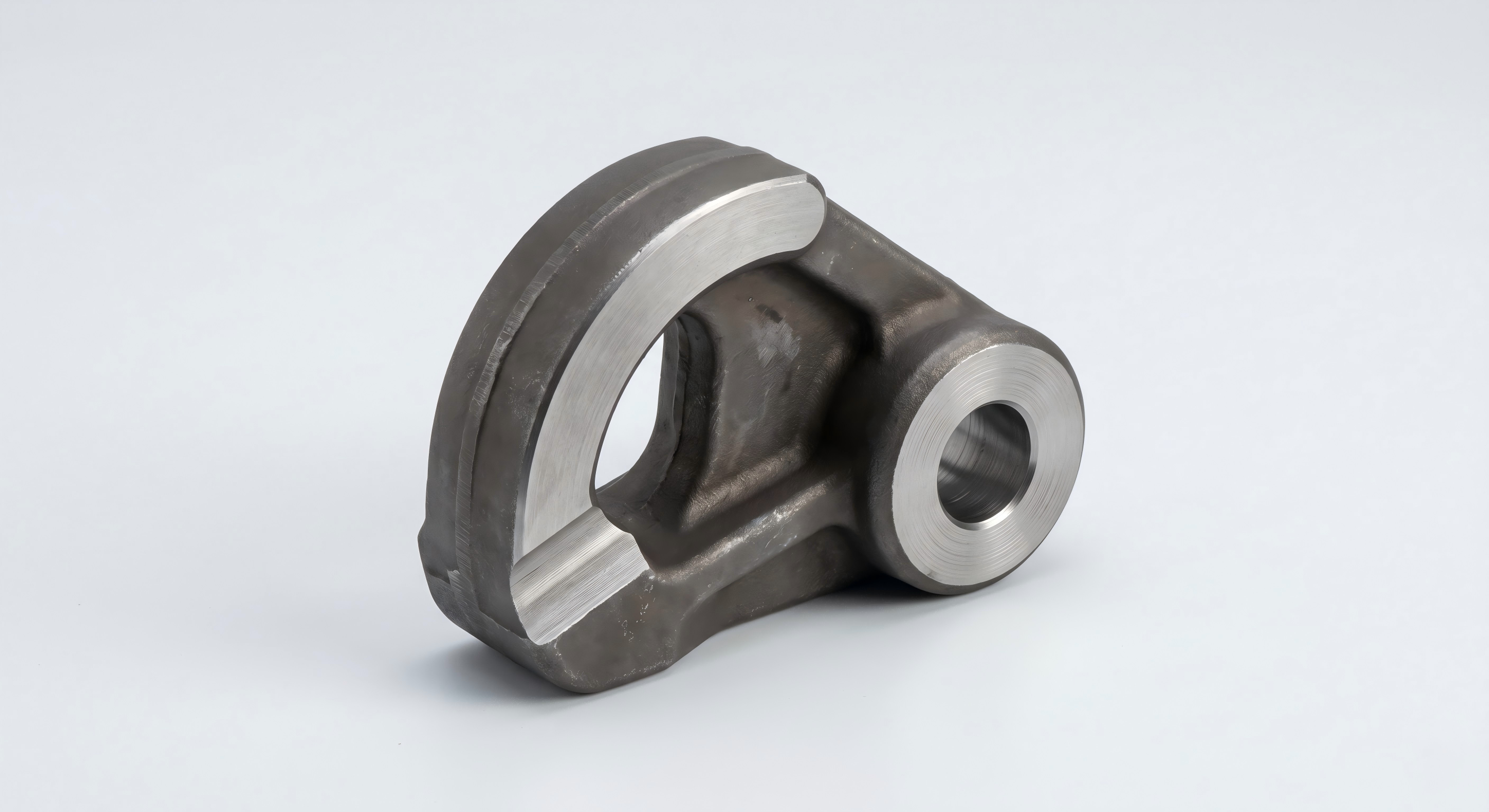

Custom wear-resistant steel locking latch investment casting for industrial equipment
Pins, Latches and Locking Components
Load-bearing or locking parts exposed to repeated movement, impact and localized surface pressure.

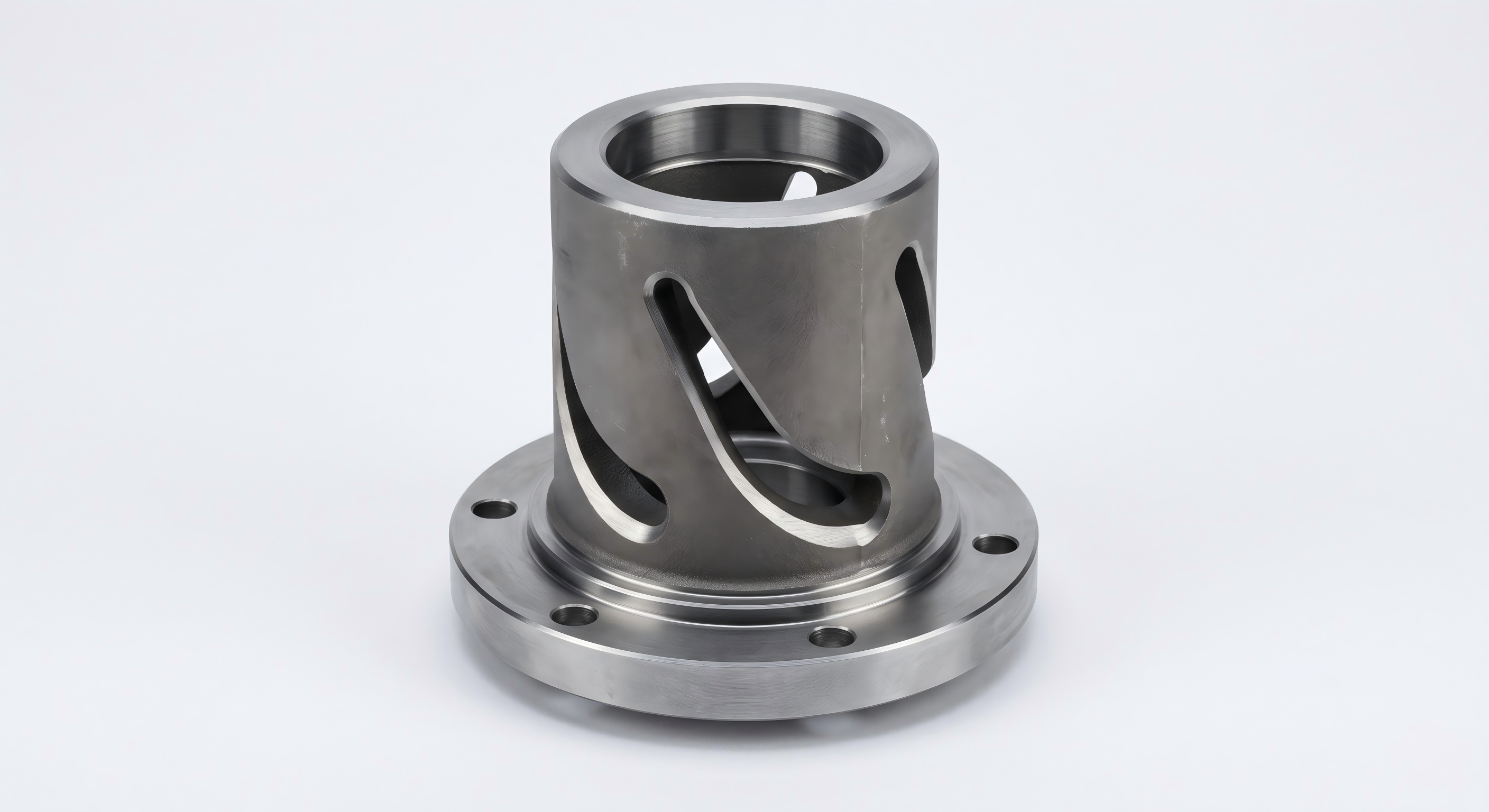

Wear-resistant steel valve cage investment casting with machined sealing surfaces

Pump and Valve Wear Components

Custom internal parts exposed to flowing media, particles, repeated movement or sealing contact.

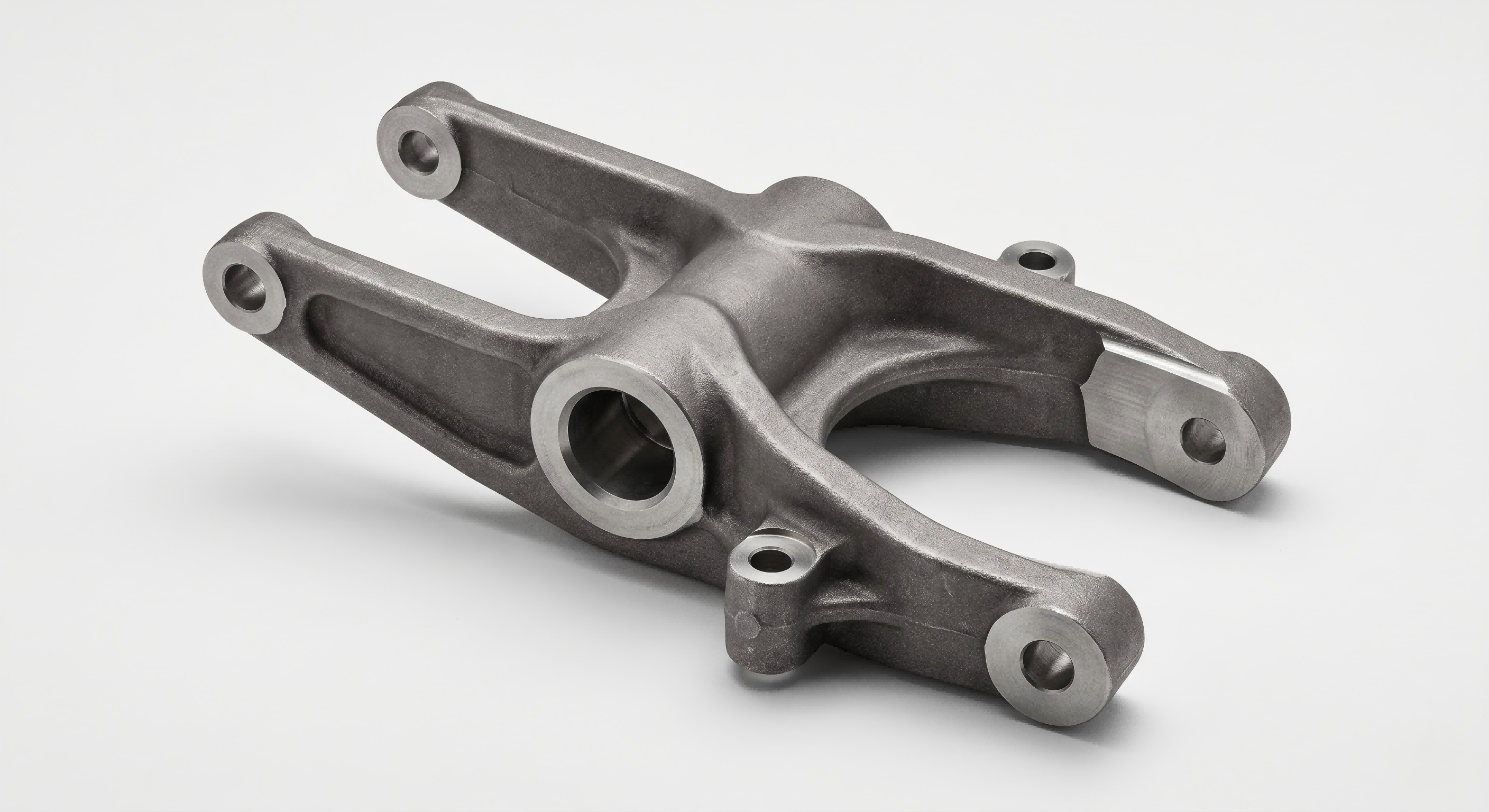

Custom complex wear-resistant steel investment casting for industrial machinery

Custom High-Wear Machinery Parts

Special-shaped castings developed according to customer drawings, operating conditions and target service life.

Heat-Resistant Steel Materials We Can Evaluate

Material selection should be based on the wear mechanism, impact level, required hardness, corrosion exposure, component geometry and machining requirements.

Medium-Carbon Steel
Suitable for moderate wear applications where cost, strength, machinability and heat-treatment response must be balanced.
Low-Alloy Steel
Evaluated for applications requiring higher strength, hardenability, load capacity and wear resistance after appropriate heat treatment.
Martensitic Stainless Steel
Considered when surface hardness and wear resistance must be combined with moderate corrosion resistance.
Precipitation-Hardening Stainless Steel
Suitable for applications requiring high strength, dimensional stability and moderate wear and corrosion resistance.
Surface-Hardened Steel Options
Carburizing or nitriding may be evaluated when a hard wear-resistant surface and a comparatively tougher core are required.
Material Note
Reference materials that we can evaluate include 1045, 4140, 4340, 5160, 420 and 17-4 PH. Exact material suitability, cast-grade equivalent, heat-treatment route and achievable properties must be confirmed according to the drawing and application.

Special wear-resistant grades are evaluated individually before quotation.

Design and Manufacturing Considerations for Wear-Resistant Steel Castings


A successful wear-resistant casting requires more than selecting a high-hardness material. The following factors should be reviewed during project evaluation.

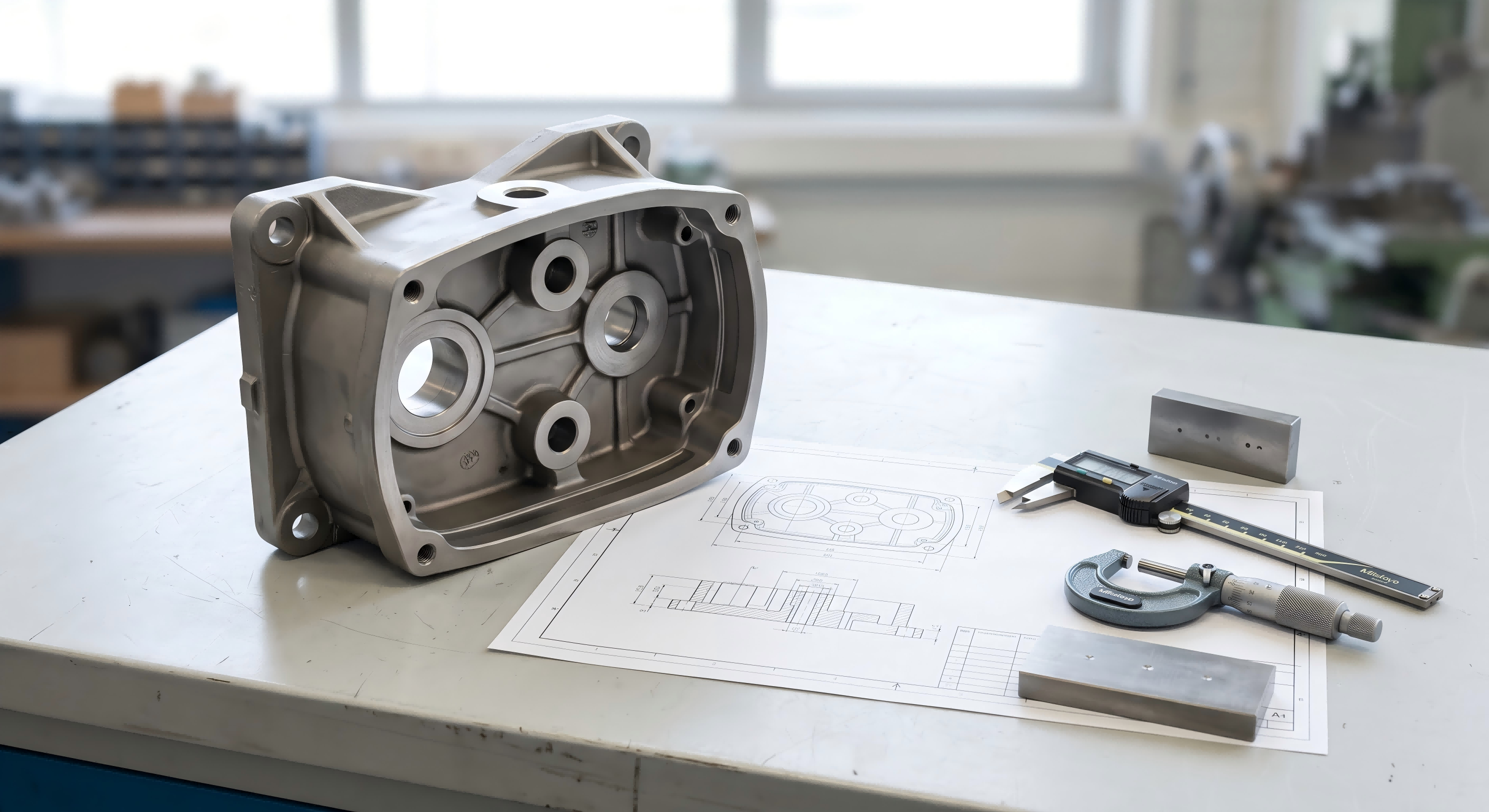

Wear-resistant steel casting with technical drawing and precision measuring tools
Wear Mechanism and Contact Material
The type, hardness, speed and shape of the material contacting the casting directly affect the required wear performance.
Impact Load and Required Toughness
Components exposed to shock or impact require sufficient toughness to prevent cracking, even when high hardness is required.
Target Hardness and Hardness Distribution
The required hardness level, measurement position and hardness depth should be clearly defined before production.
Geometry, Wall Thickness and Stress Concentration
Sudden thickness changes, sharp corners and highly restrained areas may affect casting quality, heat-treatment response and cracking risk.
Heat Treatment and Dimensional Change
Quenching, tempering, aging or surface hardening may cause distortion, so machining allowance and critical dimensions should be planned in advance.
Machining, Surface Finish and Inspection
Machining areas, tolerances, surface roughness and inspection standards should be confirmed according to the functional requirements of the part.
Casting, Heat Treatment and Machining Support

We support custom wear-resistant steel parts from initial engineering review to finished component production. The manufacturing route is adjusted according to the material, geometry, quantity and required properties.

1. Drawing and Engineering Review
We review component geometry, wall thickness, tolerances, machining areas and working conditions before quotation.
2. Tooling and Wax Pattern Production
Metal tooling or suitable pattern solutions are prepared according to the required quantity and project stage.
3. Silica-Sol Investment Casting
Precision investment casting is used to produce complex shapes, detailed features and near-net-shape steel components.
4. Heat Treatment and Hardness Control
Heat-treatment processes are evaluated according to the selected material, required hardness, toughness and dimensional requirements.
5. CNC Machining and Surface Finishing
Machining, grinding, polishing, blasting, coating or other finishing operations can be arranged according to the drawing.

Quality Control for Wear-Resistant Steel Investment Castings

Quality requirements are confirmed before production, and the inspection plan can be adjusted according to sample approval, production quantity and critical component characteristics.

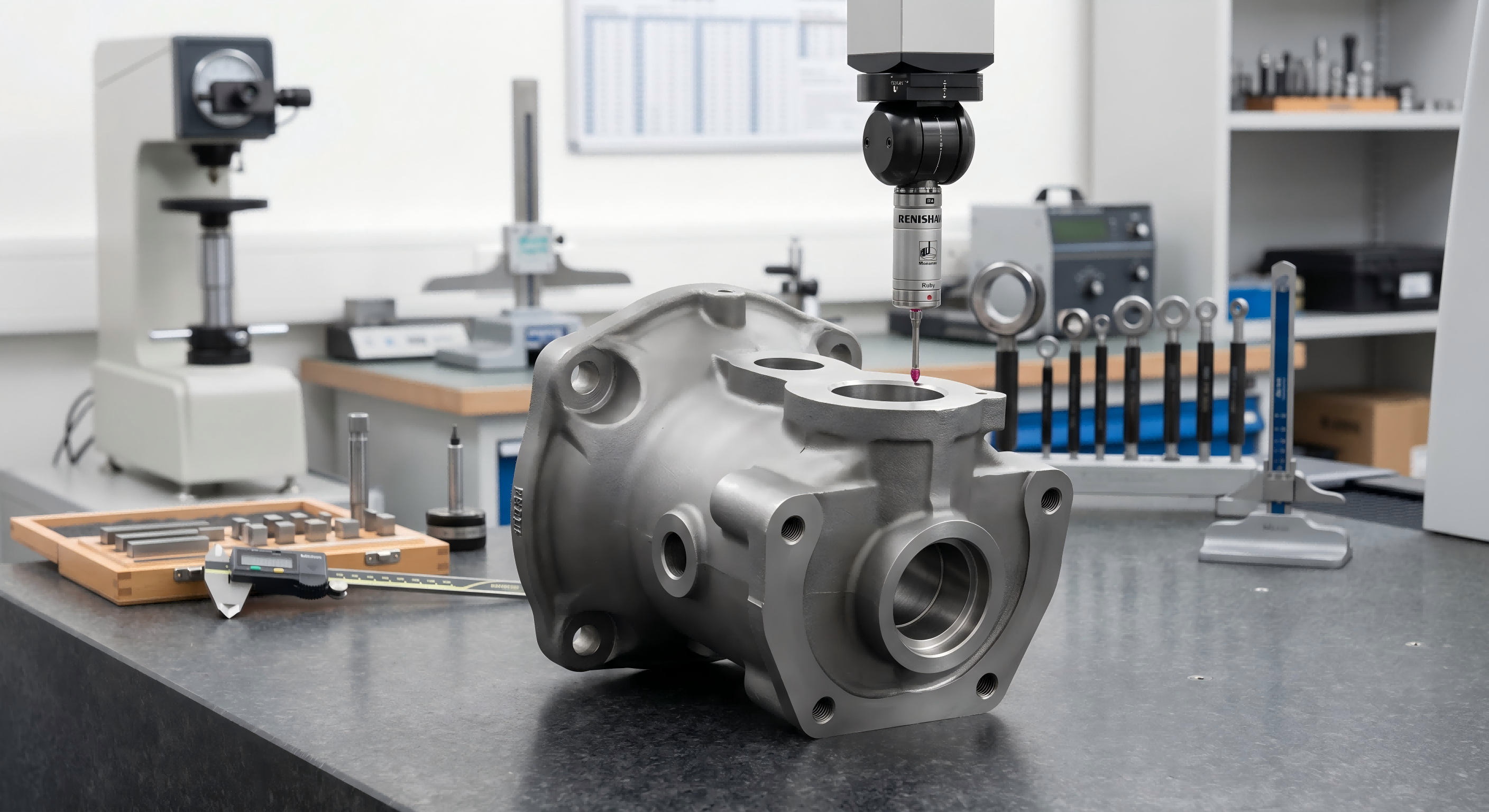

CMM and hardness inspection for wear-resistant steel investment castings
Chemical Composition Verification
Material composition can be checked to confirm compliance with the agreed material requirements.
Dimensional Inspection
Critical dimensions, tolerances and machining features are inspected according to the approved drawing.
Hardness Testing
Hardness can be measured at specified positions after heat treatment or final processing.
Visual and Surface Inspection
Casting surfaces are checked for visible defects, incomplete features and unacceptable surface conditions.
CMM and Precision Measurement
CMM, gauges, projection equipment and other measuring tools can be used according to component requirements.
Optional Testing and Reports
Additional testing, inspection reports or third-party inspection can be arranged when specified before quotation.
Project Information Needed for Quotation

Providing complete project information helps us evaluate material suitability, casting feasibility, heat treatment, machining and inspection requirements more accurately.

 2D drawing or 3D model
Target hardness and hardness testing position
Required material grade or applicable standard
Heat-treatment or surface-hardening requirements
Estimated order quantity and annual demand
Critical dimensions and machining areas
Description of the wear mechanism
Surface finish or coating requirements
Contact material or abrasive media
Inspection standards and required reports
Operating load, impact and movement conditions
Existing samples, photographs or failure information
Additional Note
If the material grade has not yet been selected, please provide the working conditions, contact material, required service life and any existing wear or failure problems. We can then evaluate suitable material and process directions.

FAQ About Wear-Resistant Steel Investment Casting

Q1. What is wear-resistant steel investment casting?


Wear-resistant steel investment casting is a precision casting process used to manufacture steel components designed for abrasive, contact, impact or other high-wear working conditions. Material selection and heat treatment are determined according to the actual application.

Q2. Is the hardest steel always the best choice for wear resistance?


No. Higher hardness can improve resistance to certain types of wear, but insufficient toughness may increase the risk of cracking or sudden failure. Hardness and toughness must be balanced according to the wear mechanism and impact load.

Q3. Can you recommend a material if our drawing does not specify a grade?


Yes. Please provide the working conditions, contact material, wear mechanism, target hardness, impact level and corrosion exposure. We can evaluate suitable material families and heat-treatment options.

Q4. What wear-resistant steel materials can you evaluate?


We can evaluate medium-carbon steel, low-alloy steel, martensitic stainless steel, precipitation-hardening stainless steel and surface-hardened steel options. Reference grades may include 1045, 4140, 4340, 5160, 420 and 17-4 PH, subject to project confirmation.

Q5. Can you provide heat treatment and hardness testing?


Yes. Heat-treatment processes such as quenching and tempering, normalizing, aging, carburizing or nitriding can be evaluated according to the material and required properties. Hardness testing can be performed at agreed positions.

Q6. Can hardened wear-resistant steel parts be CNC machined?


Yes, but the manufacturing sequence must be planned carefully. Most material may be removed before heat treatment, followed by finish machining, grinding or other processing after heat treatment when required.

Q7. Is investment casting suitable for large wear plates or crusher liners?


Investment casting is generally more suitable for small and medium-sized precision components with complex geometry. Large, simple wear plates or heavy liners may be more economical using another manufacturing process.

Q8. What information is required for a quotation?


Please send drawings, material requirements, quantity, working conditions, target hardness, machining requirements and inspection standards. If the material is unknown, provide details about the wear environment and current component performance.


Need Custom Wear-Resistant Steel Cast Parts?

Send us your drawings, target hardness and working conditions. Our team will evaluate casting feasibility, material selection, heat treatment, CNC machining and inspection requirements for your project.

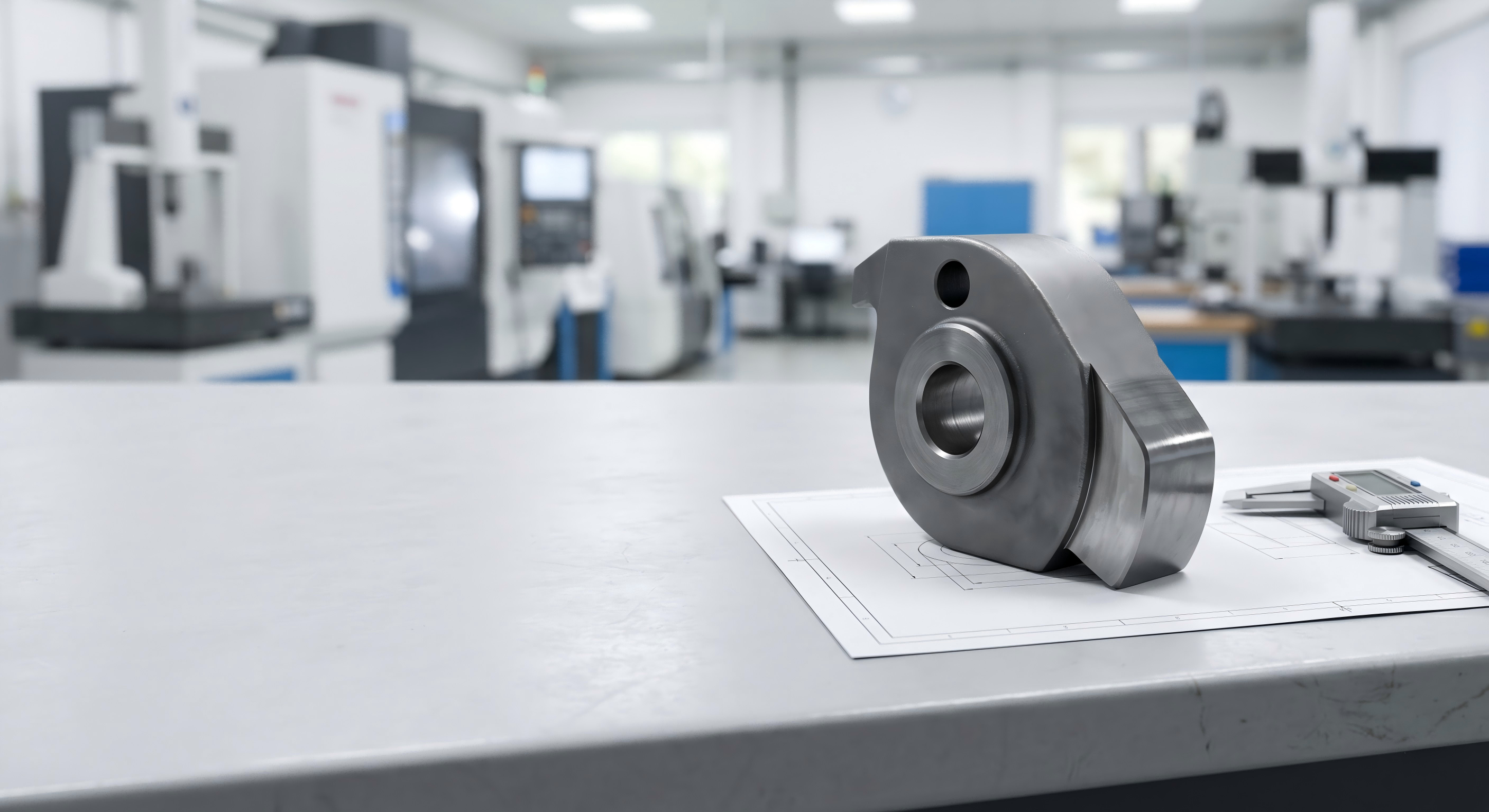

Custom wear-resistant steel cast part ready for engineering and quotation review
