Complex Housing Components from Casting to Finished Machining

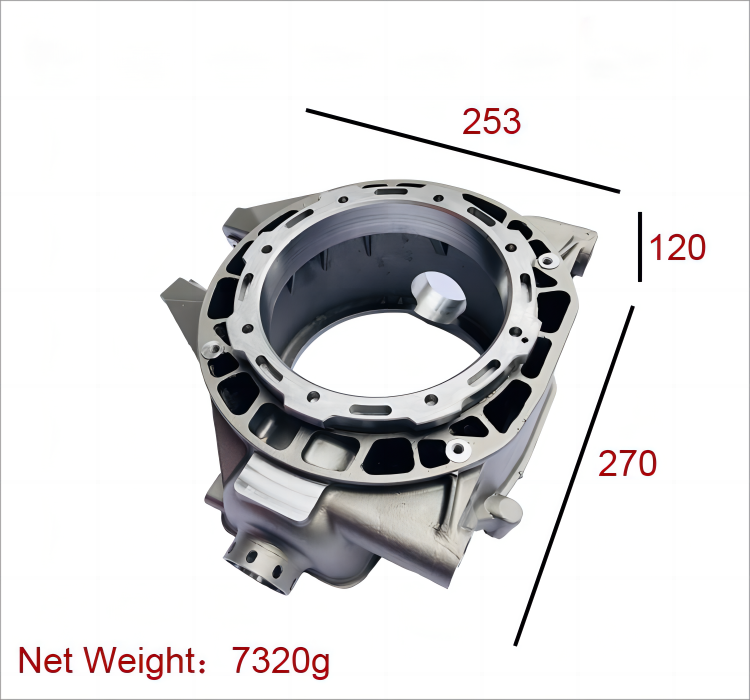

Housing components often combine relatively complex cast geometry with highly accurate functional interfaces.

Instead of machining the complete part from solid material, precision casting can form the basic geometry, external ribs, bosses, mounting features and internal cavities close to the final shape. Critical areas can then be CNC machined according to the drawing requirements.

For components such as this machinery housing, typical machined areas may include:

• Large internal bores

• Circular mounting and sealing faces

• Bolt holes and threaded holes

• Locating features

• Flange surfaces

• Bearing or shaft interfaces

• Other dimensionally critical areas

This combination helps balance manufacturing flexibility, machining accuracy and overall production efficiency.

Key Manufacturing Features

Complex Integral Cast Structure

Precision casting allows multiple structural features, bosses, ribs and cavities to be formed as one component, reducing the need for welded or assembled structures.

Large Bore CNC Machining

The large internal bore can be precision machined to achieve the required diameter, roundness, concentricity and surface finish.

Machined Mounting & Sealing Faces

Critical flange and sealing surfaces can be CNC machined to provide the flatness and dimensional consistency required for assembly.

Multiple Hole Features

Bolt holes, positioning holes, threaded holes and other connection features can be machined according to the customer's drawing.

Integrated Casting & Machining

Casting and machining are managed within one manufacturing workflow, making it easier to control machining allowance, datum selection and dimensional consistency.

Drawing-Based Quality Control

Inspection requirements can be defined according to customer drawings, including dimensional reports, material verification and first article inspection where required.

Material selection depends on mechanical properties, corrosion resistance, operating environment and application requirements.

Common material options include:

Stainless Steel

Suitable for applications requiring corrosion resistance and good mechanical properties.

Carbon Steel

A practical choice for general industrial machinery components requiring strength and cost efficiency.

Alloy Steel

Suitable for components requiring higher strength, wear resistance or specific heat-treatment properties.

Duplex Stainless Steel

Used for demanding environments requiring a combination of mechanical strength and corrosion resistance.

Material grades can be selected according to customer drawings, specifications or application requirements.

Drawing Review → Tooling → Wax Pattern Production → Shell Building → Casting → Cleaning → Heat Treatment → CNC Machining → Surface Treatment → Inspection → Packing

Before production, our engineering team reviews the drawing for casting feasibility, machining allowance, wall thickness, datum selection and critical tolerance requirements.

For components requiring extensive machining, machining strategy and inspection points can also be considered during the early engineering stage to improve dimensional stability and reduce unnecessary machining.

After casting, the component can undergo multi-step CNC machining according to its functional requirements.

For this type of housing, machining normally focuses on critical assembly areas rather than every cast surface. This helps retain the advantages of near-net-shape casting while achieving the accuracy required at functional interfaces.

Typical machining operations include:

• CNC milling

• Precision boring

• Facing

• Drilling

• Tapping

• Internal diameter machining

• Flange machining

• Datum surface machining

Machining tolerances are evaluated according to part size, geometry and drawing requirements.

For complex cast and machined housings, inspection should cover both the casting condition and the finished machined dimensions.

Depending on project requirements, inspection can include:

• Material chemical composition verification

• Visual inspection

• Dimensional inspection

• CMM inspection

• Machined bore measurement

• Flatness and position inspection

• Hardness testing

• First Article Inspection

• Surface condition inspection

• Customized inspection reports

Critical characteristics can be identified from the customer's drawing and controlled during production.

Typical Applications

Custom cast and CNC machined housings can be used in a wide range of industrial equipment, including:

• Industrial machinery

• Mechanical transmission equipment

• Pumps and fluid-handling equipment

• Power transmission systems

• Heavy-duty equipment

• Automotive and transportation equipment

• Customized mechanical assemblies

Because each housing design has different structural and functional requirements, Zeren manufactures these components according to customer-specific drawings rather than standard catalogue dimensions.

Why Work with Zeren?

Casting + Machining from One Supplier

We manage investment casting, CNC machining and inspection as an integrated manufacturing project.

Engineering Review Before Production

Drawings are reviewed for casting feasibility, machining allowance, datum selection and critical dimensions before tooling or production begins.

Experience with Complex Components

Our manufacturing capabilities are suitable for components combining complex cast geometry with precision-machined functional surfaces.

Material and Dimensional Verification

Material inspection and dimensional inspection can be arranged according to individual project requirements.

Custom Machinery Housing Manufacturing

Need a custom cast housing with complex geometry and precision-machined interfaces?

Send us your 2D drawing, 3D model, material specification, quantity and inspection requirements. Our engineering team can review the design and provide manufacturing recommendations before quotation.
