Custom Stainless Steel Investment Cast Impellers

Custom Impeller Castings in Multiple Configurations

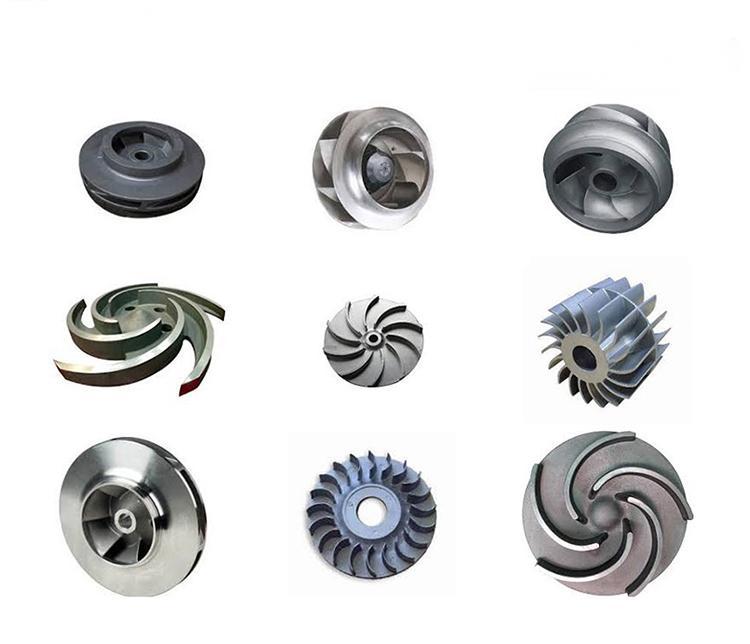

Impeller designs vary in blade curvature, passage geometry, hub proportions, and mounting arrangement. The examples shown illustrate a range of configurations that require different approaches to tooling, casting, cleaning, and machining.

Zeren reviews each design individually to establish a practical manufacturing route. Particular attention is given to blade sections, access to internal passages, machining datums, and the relationship between the shaft interface and the rotating body.

Project requirements may include:

• Curved or radial blade arrangements

• Open or shrouded configurations

• Specified blade thickness and passage geometry

• Central bore and hub machining

• Controlled mounting and locating dimensions

• Surface finishing of accessible areas

Key Product Features

Varied Blade Configurations

Blade number, curvature, spacing, and height follow the customer’s design. These features are reviewed for casting feasibility and inspection access before tooling is developed.

Hub and Body Geometry

The hub, blades, and any shrouded sections are evaluated together. The production route accounts for section transitions, internal features, and areas requiring additional process control.

Machined Mounting Interfaces

Shaft bores, hub faces, and other locating features can be machined to the specified tolerances. The drawing establishes the datums used to control their relationship to the impeller body.

Drawing-Based Customization

Production can accommodate different diameters, blade profiles, hub dimensions, and connection details. Material and finishing requirements are defined for each project.

From Approved Design to Finished Impeller

01. Engineering Review

Assess blade geometry, section thickness, passage access, material requirements, machining allowances, and critical dimensions using the supplied drawings and model.

02. Tooling and Pattern Preparation

Prepare tooling for the approved geometry and check wax patterns for dimensional consistency, blade condition, and distortion.

03. Ceramic Shell and Casting

Build the ceramic shell and cast the specified alloy. Tooling and process arrangements are selected to suit the component’s geometry.

04. Cleaning and Surface Preparation

Remove gates, dress removal areas, and clean the casting. Review access to internal passages and complete the agreed surface preparation.

05. CNC Machining

Machine designated bores, hub faces, locating surfaces, and other interfaces using the specified datums.

06. Inspection and Release

Verify the agreed dimensional, material, and surface requirements. Complete any additional inspection specified for the project before release.

Stainless Steel Selection for Custom Impellers

Material selection is based on the handled medium, operating temperature, mechanical requirements, and customer specifications.

Where a drawing specifies a wrought designation such as 304 or 316, the material specification for the casting should be agreed before production.

Manufacturing Support for Functional Impeller Features

Casting and machining are planned together so that the main body geometry and precision interfaces meet the approved drawing.

The machining scope depends on feature accessibility, component size, material, and tolerance requirements.

Inspection of Impeller Geometry and Assembly Interfaces

Inspection is organized around the dimensions and relationships identified on the drawing. The agreed scope may include:

• Overall diameter and height

• Central bore diameter and fit

• Hub dimensions and mounting face positions

• Blade thickness and accessible profile dimensions

• Passage openings and visible surface condition

• Specified concentricity or runout

• Machined surface finish

• Material composition

Dimensional reports and first article inspection can be arranged according to project requirements.

Where balancing is required, please provide the operating speed, acceptance criteria, and the condition in which the component must be tested. Balancing and related testing arrangements should be confirmed during quotation.

Why Use Investment Casting for Impellers?

Curved blades, recessed surfaces, and complex hub profiles can make complete machining from solid material demanding. Investment casting provides a route for forming much of the geometry before finishing the interfaces that require tighter dimensional control.

Potential benefits include:

• Forming complex blade and body profiles

• Reducing material removal from suitable designs

• Reproducing approved geometry through dedicated tooling

• Combining cast features with precision-machined interfaces

Manufacturing feasibility is evaluated for each design, particularly where narrow passages or enclosed features affect tooling and cleaning.

Typical Applications

Custom Impellers for Fluid and Air Movement Equipment

Depending on the design, custom impellers can be evaluated for:

• Pump and liquid transfer assemblies

• Process circulation equipment

• Water treatment systems

• Chemical processing equipment

• Marine pumping systems

• Industrial blowers and air-handling equipment

Application suitability depends on the complete equipment design, selected material, operating conditions, and validation requirements.

Discuss Your Custom Impeller Project

Send your drawings and specifications to Zeren for a casting and machining review.

Please include:

• Dimensioned drawings and available STEP or IGES models

• Material grade and applicable standard

• Order quantity

• Critical fits and geometric tolerances

• Surface finishing requirements

• Inspection, balancing, and documentation requirements

Our team will review the manufacturing scope and identify the technical details needed for quotation and production planning.
