Producing a high-quality metal casting depends on more than choosing the correct material grade. The behavior of molten metal during mold filling, solidification, and cooling also determines whether the final casting will have a complete shape, stable dimensions, and reliable internal quality.
These manufacturing characteristics are generally described as metal castability. The main factors affecting metal castability include fluidity, shrinkage, segregation tendency, gas absorption, and the formation of internal stress during cooling.
Understanding these factors can help engineers and buyers identify potential investment casting defects before tooling and production begin. It also supports better decisions regarding material selection, casting structure, pouring parameters, heat treatment, machining allowance, and inspection requirements.
Metal castability refers to the ability of a molten metal or alloy to fill a mold cavity, solidify into the required shape, and produce a casting with acceptable surface quality, internal integrity, dimensional accuracy, and mechanical performance.
Castability is not determined by one property alone. It is affected by several connected factors, including:
Alloy composition
Solidification range
Pouring temperature
Ceramic shell temperature
Casting wall thickness
Gating and feeding design
Cooling rate
Metal cleanliness
Heat treatment requirements
An alloy with good castability generally fills complex structures more reliably and is easier to control during production. However, even a suitable alloy may develop defects when the part contains sudden wall-thickness changes, isolated heavy sections, sharp corners, deep cavities, or an unsuitable gating system.
For this reason, material selection should always be evaluated together with casting design and manufacturing conditions.
Fluidity is the ability of molten metal to flow through the gating system and completely fill the mold cavity before solidification prevents further movement.
Good alloy fluidity is especially important for investment castings with:
Thin walls
Narrow channels
Small lettering
Fine surface details
Long flow distances
Complex internal structures
Fluidity is influenced by alloy composition, solidification range, pouring temperature, shell temperature, gate dimensions, section thickness, and heat loss during pouring.
Alloys with a relatively narrow solidification range generally maintain their flow capability for longer. Alloys with a wider freezing range begin to form solid crystals earlier. These crystals can obstruct the remaining molten metal and make it more difficult to fill thin or distant sections.
When fluidity is insufficient, several common investment casting defects may occur.

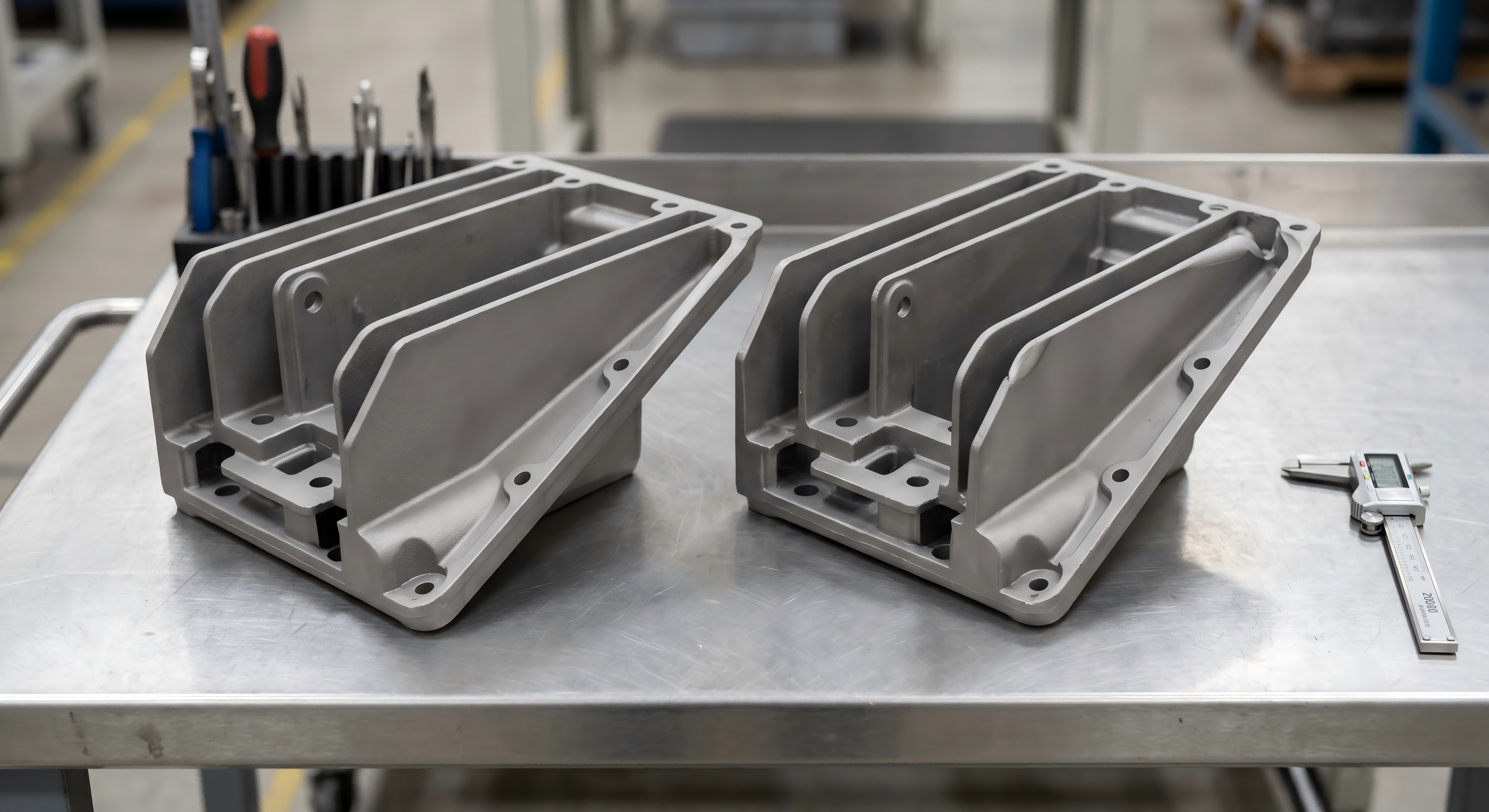

A misrun occurs when molten metal solidifies before the mold cavity is completely filled. The resulting casting may have missing sections, incomplete edges, or an unfinished outline.

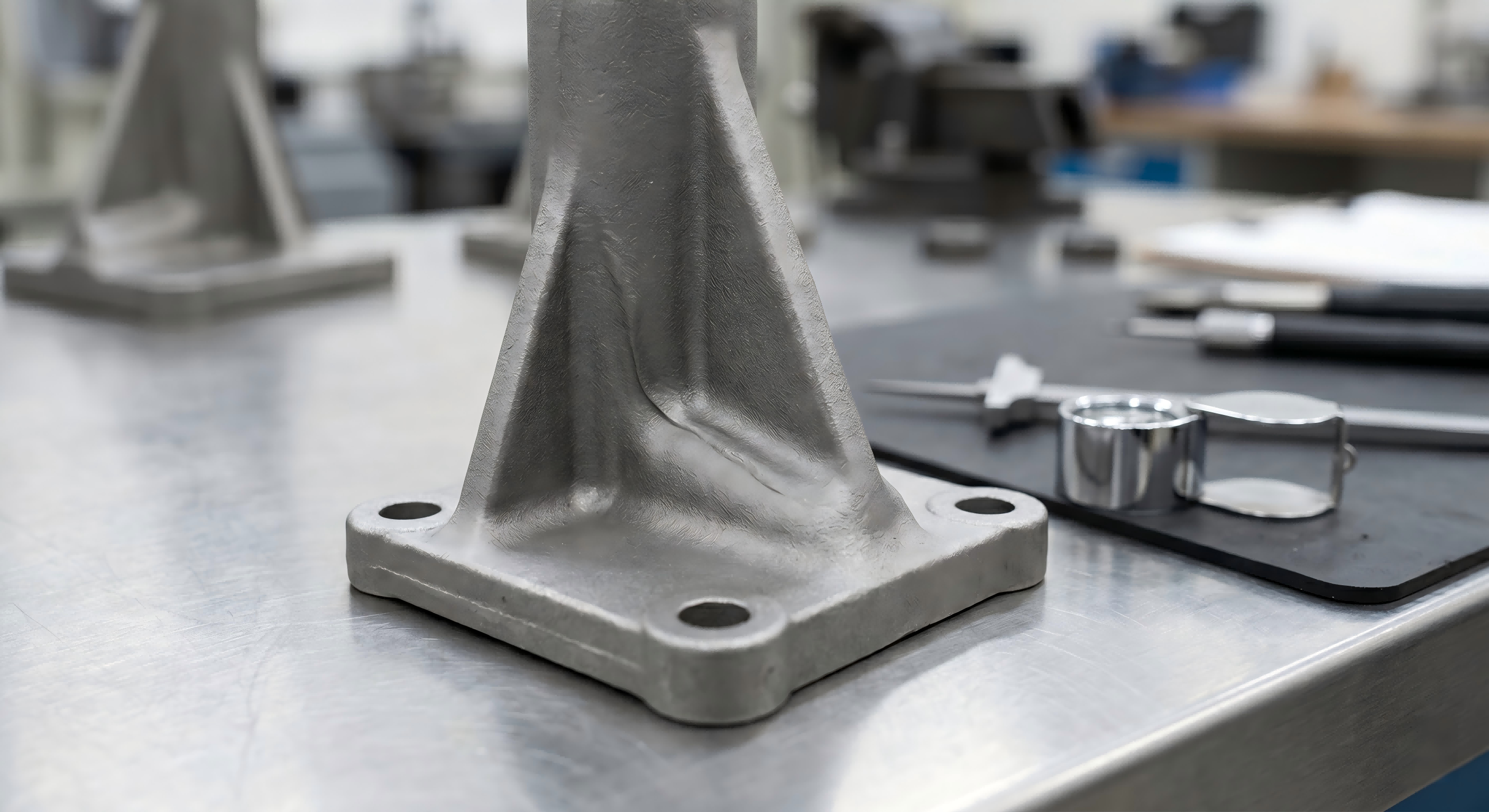

A cold shut forms when two streams of molten metal meet but fail to fuse completely. It often appears as a visible line or seam on the casting surface.
Small letters, thin edges, grooves, or other fine features may not be reproduced clearly when molten metal loses too much heat before reaching these areas.
Increasing the pouring or ceramic shell temperature may improve mold filling in some cases. However, excessively high temperatures can increase oxidation, gas absorption, shell reaction, grain growth, and solidification time.
Therefore, pouring temperature should not simply be increased without considering the material, wall thickness, geometry, and quality requirements.
Metal contracts as it cools from the molten state to room temperature. This reduction in volume and dimensions is known as casting shrinkage.
Casting shrinkage normally occurs in three stages:
Liquid contraction before solidification
Solidification contraction during the liquid-to-solid transformation
Solid-state contraction as the casting continues cooling
Liquid and solidification contraction must be compensated by a sufficient supply of molten metal. If an isolated section cannot receive enough feeding metal, shrinkage cavities or dispersed shrinkage porosity may form.
Thick sections are particularly sensitive because they cool more slowly than surrounding thin sections. These areas can become thermal hot spots and remain molten after nearby sections have already solidified.

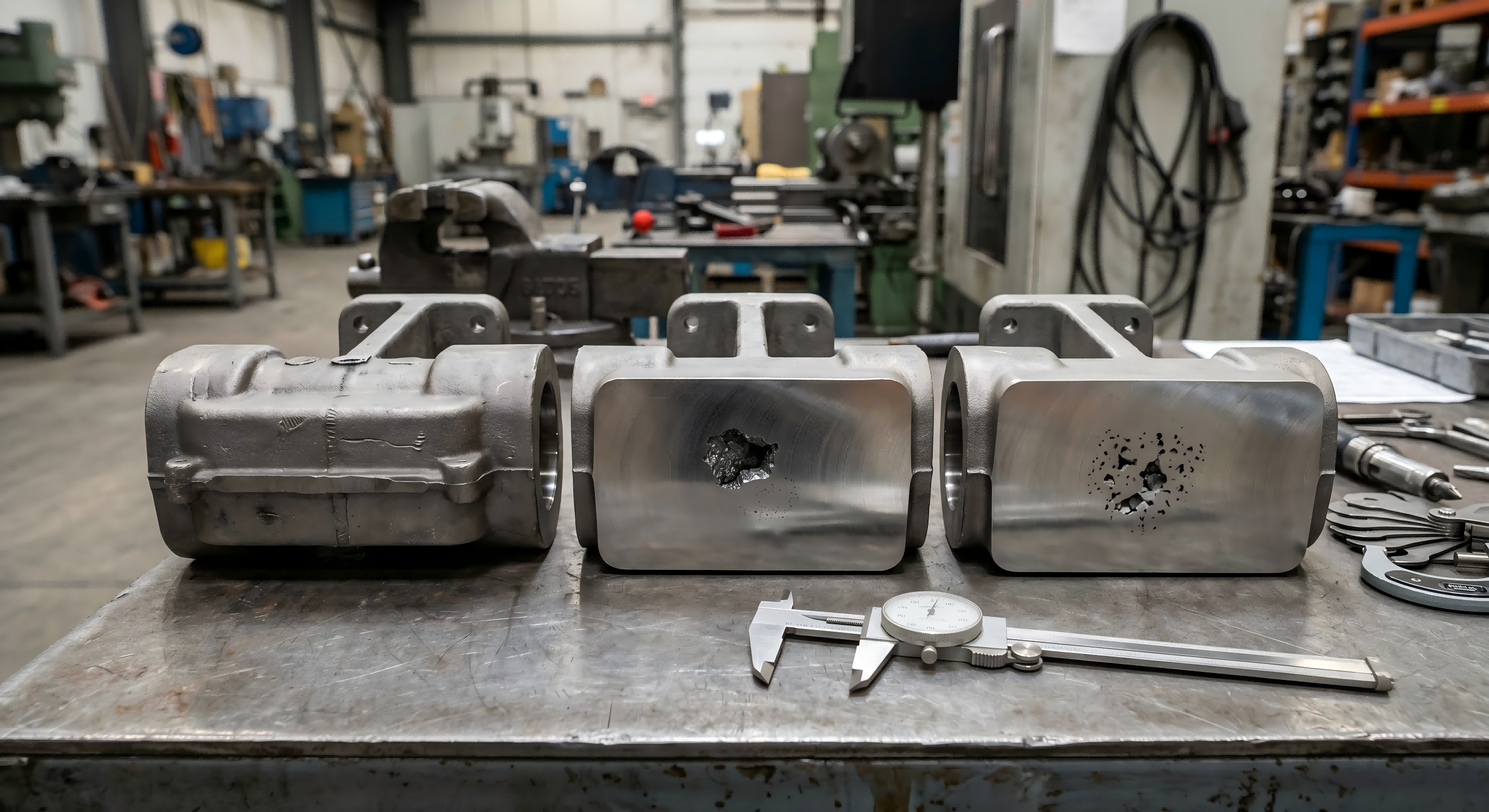

Common defects associated with uncontrolled casting shrinkage include:
Shrinkage cavities
Internal shrinkage porosity
Centerline shrinkage
Surface depressions
Dimensional deviation
Warping
Distortion
Cracking
Linear shrinkage must also be considered during mold and tooling development. The tooling dimensions normally require an appropriate shrinkage allowance to compensate for changes during wax pattern production, shell building, alloy solidification, heat treatment, and final cooling.
However, one standard shrinkage value should not be applied to every component. Actual shrinkage depends on the material grade, part size, wall thickness, structural restraint, tooling design, and production conditions.
Segregation is the uneven distribution of alloying elements that develops as molten metal solidifies.
Different alloying elements do not always solidify or diffuse at the same rate. As a result, chemical composition may vary between the center of a grain, interdendritic regions, grain boundaries, or different sections of the casting.

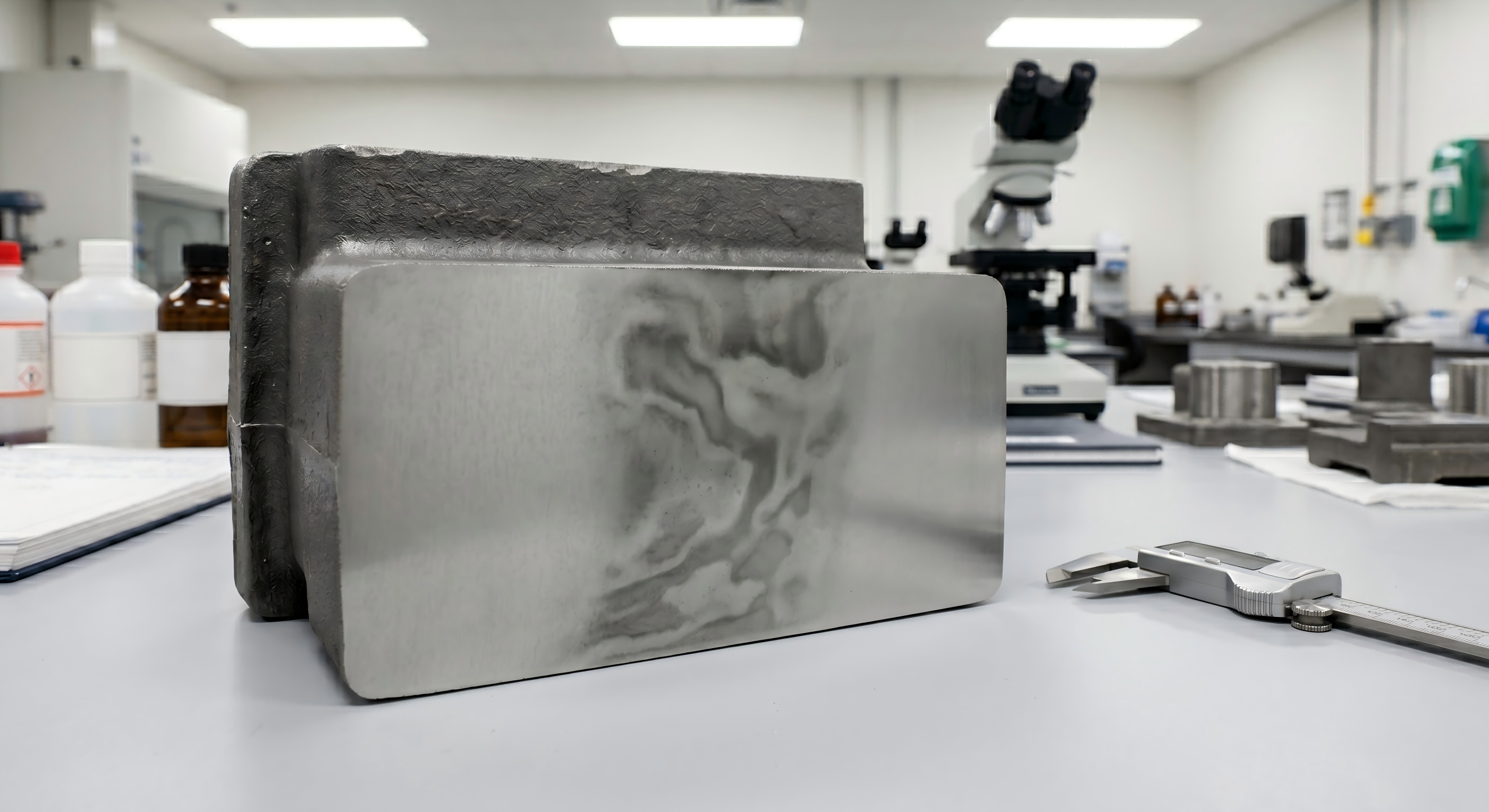

The two main forms of segregation are microsegregation and macrosegregation.
Microsegregation refers to local chemical differences within individual grains or between dendritic and interdendritic regions.
It may affect local hardness, strength, corrosion resistance, machinability, and response to heat treatment.
Macrosegregation refers to larger-scale chemical differences between different areas of a casting.
Severe macrosegregation may cause inconsistent mechanical properties across the component and can be more difficult to eliminate through later heat treatment.
Segregation tendency is affected by:
Alloy composition
Solidification range
Cooling rate
Casting section thickness
Pouring conditions
Solidification direction
Element density differences
Heavy casting sections that cool slowly may experience more noticeable dendritic segregation than thin sections that solidify more quickly.
Depending on the alloy and technical requirements, segregation may be reduced through better melting control, more uniform solidification, grain refinement, suitable cooling conditions, or post-casting heat treatment.
Any adjustment to alloy composition must remain within the specified material grade and customer requirements.
Molten metal can absorb gases from furnace atmospheres, raw materials, moisture, refractories, ceramic shells, and handling operations.
The most relevant gases depend on the alloy system, but hydrogen, oxygen, and nitrogen may all affect casting quality under certain conditions.
Gas solubility changes as molten metal cools and solidifies. If the dissolved gas cannot escape before solidification is completed, gas pores may remain inside the casting.

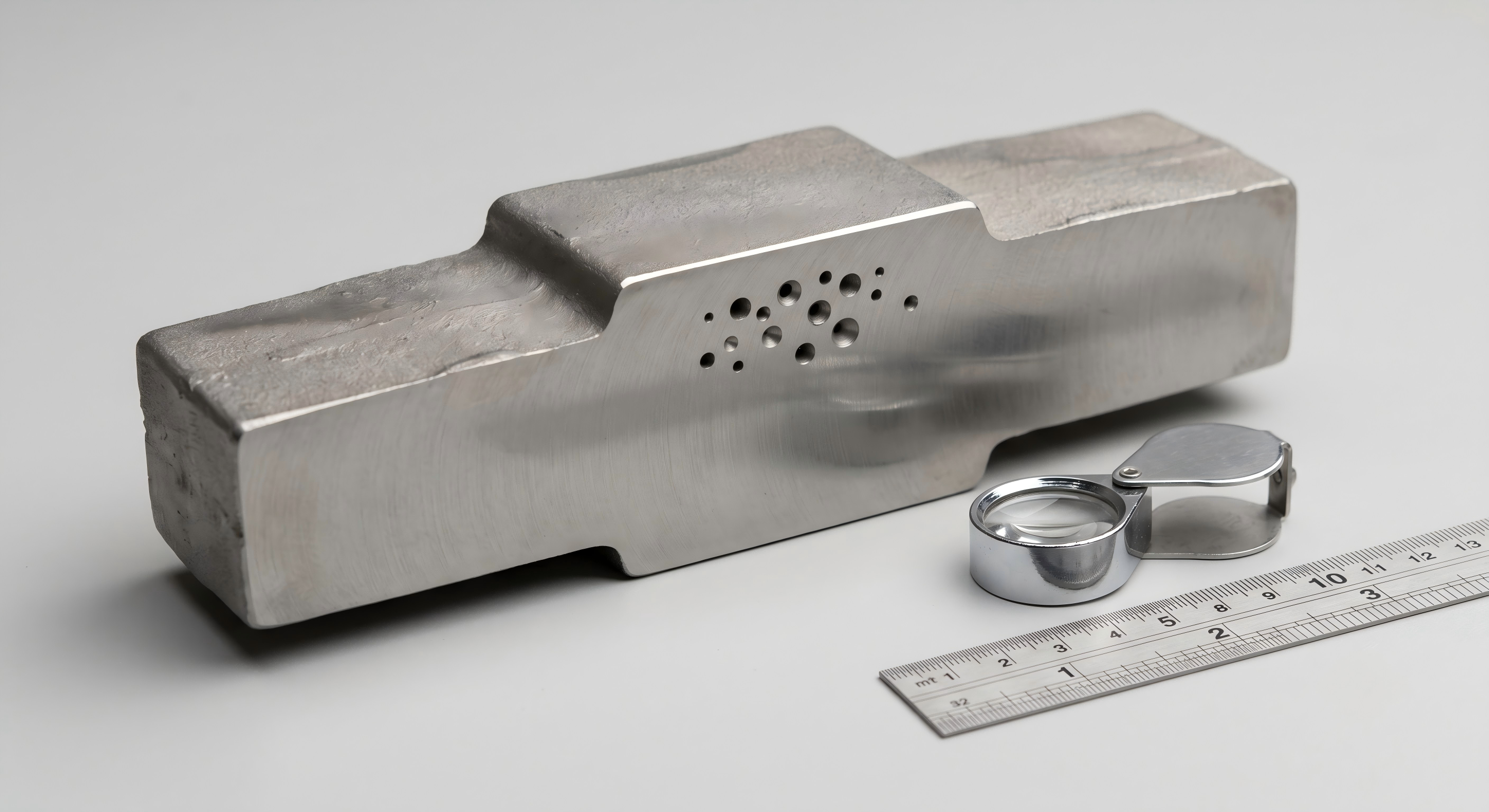

Gas-related porosity may reduce:
Pressure tightness
Fatigue strength
Mechanical performance
Surface quality
Machining quality
Service reliability
Subsurface gas porosity may not be visible during the initial visual inspection. It may only become exposed after CNC machining removes the outer metal layer.
Common causes of gas porosity include:
Moisture in raw materials or equipment
Inadequate deoxidation
Excessive pouring turbulence
Prolonged holding at high temperature
Contaminated charge materials
Improper ceramic shell storage
Insufficient shell firing
Air entrapment caused by poor gating design
Depending on the alloy and quality requirements, manufacturers may use deoxidation, slag removal, controlled furnace atmospheres, vacuum melting, improved ceramic shell management, and stable pouring practices to reduce gas absorption.
After a casting has solidified, it continues to contract as it cools.
If this contraction is restricted by the casting geometry, ceramic shell, internal cores, runners, or uneven wall thickness, internal stress may develop.
Stress that remains after the casting reaches room temperature is called residual stress.

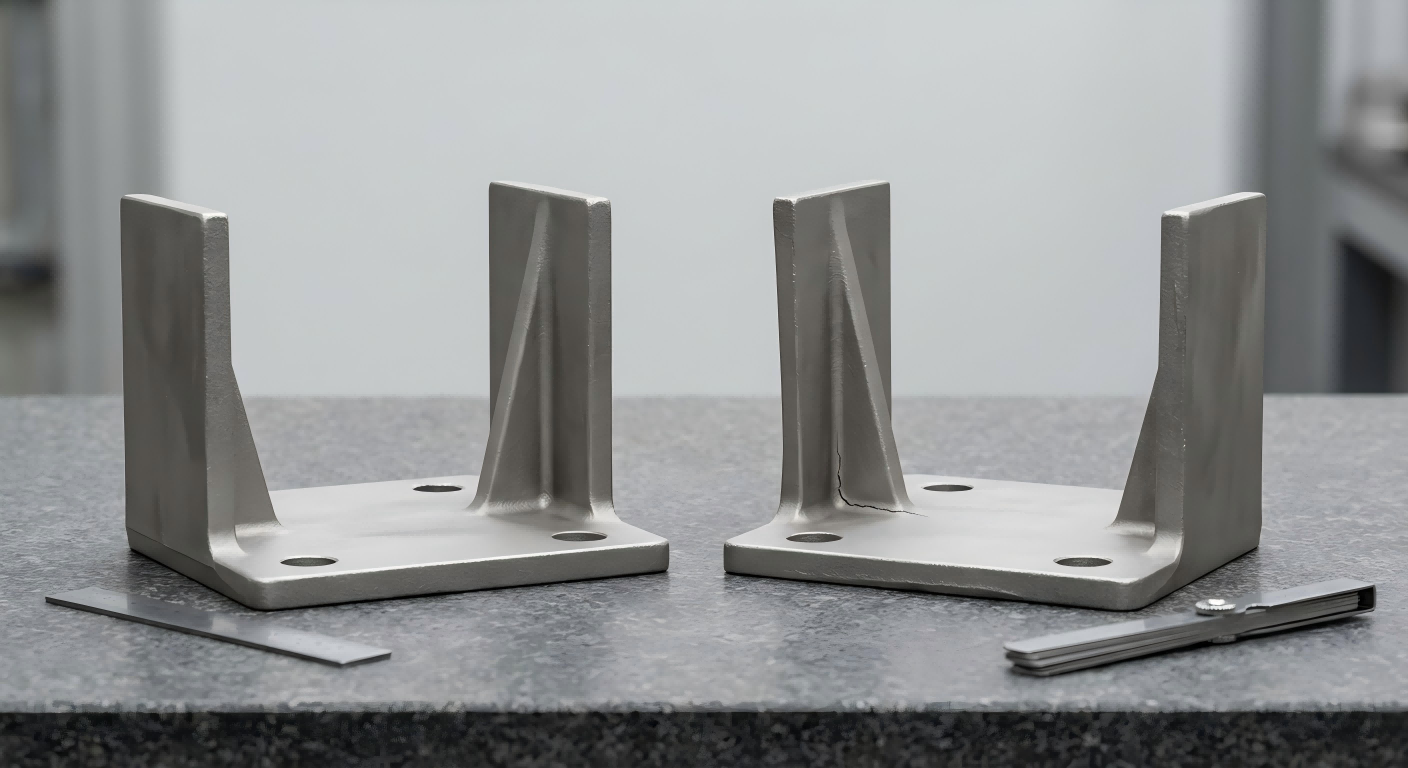

Excessive residual stress may cause:
Casting distortion
Warping
Dimensional instability
Cracking during shell removal
Deformation during heat treatment
Movement during CNC machining
Failure during later service
Casting cracks are generally divided into hot cracks and cold cracks.
Hot cracking, also known as hot tearing, develops at an elevated temperature when the alloy is in the final stages of solidification or has very limited ductility.
Hot cracking is often associated with:
Restricted solidification shrinkage
Isolated hot spots
Sharp corners
Insufficient fillet radii
Sudden wall-thickness changes
Poor feeding
Unfavorable solidification patterns
Hot-crack surfaces may show oxidation because the crack forms while the metal is still at a high temperature. The crack path is often irregular and may follow grain boundaries or weak interdendritic areas.
Improving casting geometry, increasing fillet radii, reducing local restraint, and controlling the solidification sequence can help reduce hot-cracking risk.
Cold cracking normally develops after the casting has substantially solidified and cooled.
It is commonly associated with:
High residual stress
Low material ductility
Rapid or uneven cooling
Phase-transformation stress
Improper heat treatment
Sharp corners
Local stress concentration
Cold-crack surfaces are often cleaner and brighter than hot-crack surfaces because less high-temperature oxidation occurs after the crack forms.
In some cases, a cold crack may occur suddenly and may be accompanied by an audible sound.
Some low-alloy steel castings may have a higher cracking tendency than comparable carbon steel castings.
Alloying elements can reduce thermal conductivity, increase segregation tendency, and create more complex phase transformations during cooling.
Lower thermal conductivity can increase temperature differences between thick and thin sections. This produces less uniform cooling and higher thermal stress.
At the same time, different sections of the casting may undergo phase transformations at different times. The resulting transformation stress can combine with thermal stress and increase the risk of distortion or cracking.
However, cracking tendency should not be judged only by whether the material is classified as carbon steel or alloy steel.
The following factors must also be considered:
Carbon content
Alloying element content
Casting geometry
Wall thickness
Cooling rate
Heat treatment
Structural restraint
Gating and feeding design
In some material systems, small additions of grain-refining elements such as vanadium, titanium, or niobium can help refine the grain structure and reduce dendritic segregation. However, these elements must be controlled within the specified chemical composition limits.
The main relationships between metal castability and casting defects can be summarized as follows.
Potential defects:
Misruns
Cold shuts
Incomplete details
Poorly formed edges
Main control priorities:
Pouring temperature
Ceramic shell temperature
Gating design
Wall thickness
Flow distance
Potential defects:
Shrinkage cavities
Shrinkage porosity
Surface depressions
Distortion
Main control priorities:
Feeding design
Hot-spot control
Solidification sequence
Tooling allowance
Wall-thickness transitions
Potential problems:
Uneven hardness
Inconsistent strength
Variable corrosion resistance
Unstable heat-treatment response
Main control priorities:
Composition control
Cooling rate
Solidification conditions
Section thickness
Heat treatment
Potential defects:
Gas pores
Internal porosity
Leakage risk
Poor machining surfaces
Main control priorities:
Melt cleanliness
Moisture control
Deoxidation
Pouring stability
Ceramic shell management
Potential defects:
Residual stress
Warping
Hot cracking
Cold cracking
Main control priorities:
Casting geometry
Fillet radii
Cooling control
Structural restraint
Heat treatment
Investment casting defects are rarely caused by only one parameter. Effective prevention requires coordinated control throughout the entire manufacturing process.
Before tooling begins, manufacturers should evaluate wall thickness, fillets, heavy sections, blind cavities, machining allowance, and structural transitions.
Early design review can reduce hot spots, mold-filling difficulty, deformation, shrinkage, and cracking risk.
Material selection should consider:
Strength requirements
Corrosion resistance
Wear resistance
Working temperature
Impact loading
Heat treatment
Machinability
Production cost
A material that performs well in service must also be suitable for casting and subsequent processing.
The gating system should support complete mold filling, controlled metal flow, sufficient feeding, and a reasonable solidification sequence.
Gate locations must also consider cutting, grinding, dimensional control, machining allowance, and final appearance.
Wax pattern dimensions, pattern deformation, shell thickness, drying conditions, dewaxing, firing, and preheating can all affect final casting quality.
Stable process control helps reduce dimensional variation, surface defects, and shell-related inclusions.
Charge materials, chemical composition, furnace practice, deoxidation, pouring temperature, holding time, and molten-metal cleanliness should be controlled according to the alloy and product requirements.
Heat treatment may be used to:
Obtain the required mechanical properties
Reduce residual stress
Improve microstructure
Stabilize dimensions
Reduce certain forms of segregation
Improve machinability
The selected heat-treatment process must match the material grade and technical specification.
Visual and dimensional inspection are commonly used for investment castings.
Depending on the product application, additional inspection may include:
Chemical composition analysis
Hardness testing
Coordinate measuring machine inspection
Dye penetrant testing
Magnetic particle testing
Ultrasonic testing
Radiographic testing
Mechanical property testing
Inspection requirements should be defined according to the application risk, drawing requirements, and customer standards.
Fluidity describes how effectively molten metal flows and fills the mold cavity.
Castability is a broader concept. It includes fluidity, shrinkage, segregation, gas absorption, cracking tendency, dimensional stability, and the overall ability to produce a sound casting.
Poor fluidity commonly causes misruns, cold shuts, incomplete thin sections, poorly formed edges, and missing fine details.
Thick sections cool more slowly than surrounding thin sections.
If the surrounding metal solidifies first, it may prevent additional molten metal from feeding the remaining hot section. This can create internal shrinkage cavities or porosity.
No.
A higher pouring temperature may improve fluidity, but excessive temperature can increase oxidation, gas absorption, ceramic shell reaction, grain growth, and shrinkage risk.
Pouring parameters must be balanced according to the alloy and casting geometry.
Internal porosity, inclusions, shrinkage, and subsurface defects may be hidden beneath the original casting surface.
CNC machining removes the outer material and may expose defects that were not visible before machining.
Customers should provide:
2D drawings
3D models
Required material grade
Dimensional tolerances
Working conditions
Heat-treatment requirements
Surface-finish requirements
Inspection standards
Estimated order quantity
Complete project information allows the manufacturer to evaluate casting, tooling, machining, and quality-control risks more accurately.
Metal castability directly affects mold filling, solidification, dimensional stability, mechanical consistency, and defect formation.
Fluidity, shrinkage, segregation, gas absorption, and residual stress should not be treated as completely separate problems. These factors often interact with casting geometry, tooling design, melting practice, pouring parameters, cooling conditions, and heat treatment.
A reliable investment casting project begins with the correct material grade, casting-friendly part design, practical tooling, controlled melting and pouring, appropriate heat treatment, and inspection methods matched to the application.
Zeren provides custom investment casting, CNC machining, tooling development, heat treatment, and surface-finishing support for industrial metal components. Our team can review your drawings, material requirements, working conditions, tolerance requirements, and estimated order quantities before production begins.
Send us your 2D drawing, 3D model, material requirement, application conditions, and estimated quantity.
Our team can review the component structure and help identify potential casting, machining, heat-treatment, and quality-control risks before tooling and production.
